Data Collection 101 for Managed Equipment Services: Modbus, CAN bus, and OPC UA

You cannot manage what you cannot measure. This guide is "Data Collection 101" for OEMs building managed equipment services. We demystify the three languages your machines likely speak: Modbus (the universal standard), CAN bus (for engines and vehicles), and OPC UA (the modern IT/OT bridge). We explain how to use an Industrial IoT Gateway to translate these diverse signals into a unified data stream, enabling you to launch a scalable, standardized service offering across your entire product portfolio.

Data is the oxygen of managed equipment services. Without a reliable stream of temperature, vibration, and usage data, your service contract is just a piece of paper.

But when you look at your fleet of machines, you see a Tower of Babel. Your old compressors speak one language; your new generators speak another. Your premium line uses a different controller than your economy line.

How do you build a scalable managed equipment service on top of this chaos?

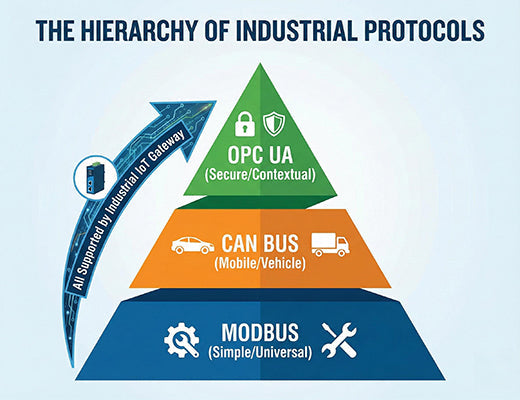

You don't need to be a programmer. You just need to understand the "Big Three" industrial protocols and how to translate them. This guide will turn the alphabet soup of machine data into a clear strategy for your service business.

If your machine has a controller built in the last 40 years, it probably speaks Modbus. It is the most common protocol for industrial components like Variable Frequency Drives (VFDs), energy meters, and simple PLCs.

• How it works: It's a "Master-Slave" system. Your IoT Gateway (Master) asks the machine (Slave): "What is the value in Register 4001?" The machine replies: "100."
• Best for: Reading simple operational metrics like Motor Speed, Temperature, and Power Consumption.
• Role in Managed Equipment Services: Modbus is the backbone of low-cost monitoring. It allows you to pull data from almost any component inside your machine cabinet without expensive upgrades.

If your equipment has a diesel engine (generators, mobile compressors, construction gear) or moves on wheels (AGVs), it speaks CAN bus. Specifically, it likely uses the SAE J1939 standard.

• How it works: It's a "Broadcast" system. The engine and transmission are constantly shouting data onto a pair of wires. Your gateway "listens" to this stream.
• Best for: Reading heavy-duty telematics data: RPM, Oil Pressure, Coolant Temp, Fuel Level, and Diagnostic Trouble Codes (DTCs).
• Role in Managed Equipment Services: This is critical for "Fleet Management" style services. It lets you predict engine failures and automate fuel replenishment for remote assets.

OPC UA is the future. It is designed to bridge the gap between the factory floor (OT) and the IT world. It is found in modern, high-end PLCs (Siemens S7-1500, Beckhoff, etc.).

• How it works: It's a "Client-Server" model with built-in security. Instead of asking for "Register 4001," the gateway asks for the "Hydraulic_Pressure" tag. The machine replies with the value and the unit (PSI).
• Best for: Complex machines, security-sensitive environments, and high-speed data logging.
• Role in Managed Equipment Services: OPC UA enables "Plug-and-Play" services. It reduces setup time because the data is already labeled and structured, making it easy to feed into your cloud dashboard.

You don't want to build three different service platforms for three different protocols. You need one platform.

This is where the Industrial IoT Gateway (like the Robustel Add One Product: EG5100 ) comes in. It is a "polyglot."

• Hardware: It has physical ports for all of them: RS485 (for Modbus), CAN port (for J1939), and Ethernet (for OPC UA).
• Software: It runs a translation engine. It takes Modbus registers, CAN messages, and OPC tags and converts them all into a single, standardized format (usually JSON over MQTT).

For your managed equipment services, this means you get a uniform data stream—"Machine Health"—regardless of whether the underlying asset is a 1990s pump or a 2025 robot.

The complexity of machine data is a solved problem. Do not let "protocol confusion" stall your transition to managed equipment services.

By deploying a flexible IoT Gateway, you can abstract away the hardware differences across your fleet. You can treat every machine—Modbus, CAN, or OPC UA—as a standard data source. This allows you to focus on what matters: building valuable alerts, optimizing your customers' operations, and growing your recurring revenue.
