5G Gateways for Smart Manufacturing: Enabling Industry 4.0

Industry 4.0 promises a "Smart Factory" that is flexible, autonomous, and data-driven. However, traditional connectivity holds this vision back. Ethernet cables make machines immovable, and Wi-Fi creates "dead zones" that freeze mobile robots. The 5G Gateway is the missing link. This article explores how industrial 5G hardware transforms manufacturing by enabling Flexible Production Lines (reconfiguring layouts in hours, not weeks), Seamless Logistics (controlling AGVs without latency), and Private Networks (keeping sensitive data secure on-premise).

The dream of Industry 4.0 is the "Flexible Factory." In this dream, a production line isn't a fixed monument of steel bolted to the floor. It is a modular system. If you need to switch from making Sedan cars to SUV cars, the robots rearrange themselves, the conveyors reroute, and production continues.

But there is a physical tether holding this dream back: The Cable. Every time you move a machine, you have to rip up flooring to move Ethernet cables. It costs thousands of dollars and takes weeks.

Wi-Fi was supposed to solve this, but in a factory filled with metal interference and electromagnetic noise, Wi-Fi is unreliable.

The solution is the Industrial 5G Gateway. By providing fiber-like speed and cable-like reliability over the air, 5G gateways are finally cutting the cord on manufacturing.

In a traditional setup, the Programmable Logic Controller (PLC) connects to the server via a physical LAN cable. In a Smart Factory, the PLC connects to a 5G Gateway .

The Benefit:

• Portability: You can mount a machine on wheels. To move it, you just unplug the power and roll it away. The network connection stays active and stable via 5G.
• Speed of Change: A production line reconfiguration that used to take 2 weeks of rewiring now takes 2 hours of moving equipment.
• Legacy Compatible: The gateway has Serial (RS232/485) and Ethernet ports, so your old Rockwell or Siemens PLCs don't need to be replaced—they just get plugged into the 5G box.

Automated Guided Vehicles (AGVs) are the lifeblood of modern logistics. They move parts from the warehouse to the assembly line.

The Wi-Fi Problem: Wi-Fi access points have limited range. As an AGV moves across a 500,000 sq ft factory, it has to switch from Access Point A to Access Point B. This "handover" takes 100-500ms. During that gap, the AGV loses connection. For safety, it hits the brakes. This results in "jerky" movement and lost productivity.

The 5G Gateway Solution: Cellular technology was designed for cars moving at 60 mph. A 5G Gateway  mounted on an AGV handles tower handovers instantly (<1ms). The robot maintains a continuous, "heartbeat" connection with the central controller, allowing for smooth, uninterrupted movement and higher fleet efficiency.

Quality Assurance (QA) is moving from human eyes to AI cameras. High-definition cameras inspect every product on the belt for microscopic defects.

The Bandwidth Challenge: Streaming 4K video from 50 cameras requires massive Uplink bandwidth. 4G LTE cannot handle this (it is designed mostly for downloads).

The 5G Edge: 5G offers massive Uplink capacity (eMBB). An industrial 5G Gateway  can aggregate video streams from multiple cameras and blast them to a local edge server for analysis in real-time. If the AI detects a scratch, the gateway sends a signal to a robotic arm to reject the part instantly.

Manufacturers are paranoid about data. They do not want their production secrets traversing the public AT&T or Vodafone network.

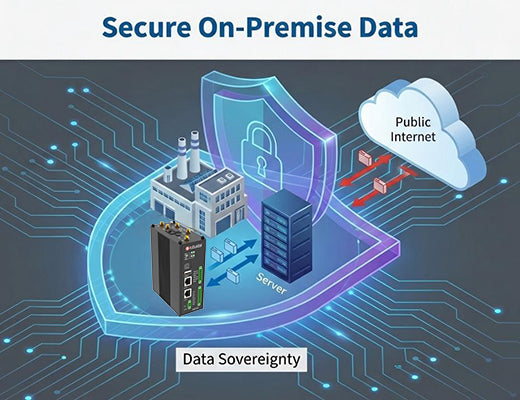

This drives the adoption of Private 5G Networks.

• The factory builds its own mini cell towers.
• The 5G gateways use private SIM cards.
• Result: Data travels from the Robot -> Gateway -> Private Tower -> Local Server. It is completely air-gapped from the public internet. This offers the highest possible level of security and data sovereignty, satisfying even the strictest IT policies.

A factory is not a clean room. It is hot, dusty, and vibrates. A standard plastic router will fail here.

To enable Industry 4.0, the 5G Gateway  must be Industrial Grade:

• Metal Enclosure: Acts as a heatsink to survive 70°C ambient temperatures inside control cabinets.
• Vibration Proof: Components are soldered down to withstand mounting on stamping presses or forklifts.
• DIN Rail Mountable: Designed to snap directly into standard industrial racks alongside PLCs and power supplies.

Industry 4.0 is about data. It is about getting data out of machines and into algorithms that optimize efficiency.

The 5G Gateway  is the pipe that makes this data flow possible. It removes the physical constraints of cabling and the reliability constraints of Wi-Fi. For the modern manufacturer, it is not just a networking device; it is a competitive advantage.
