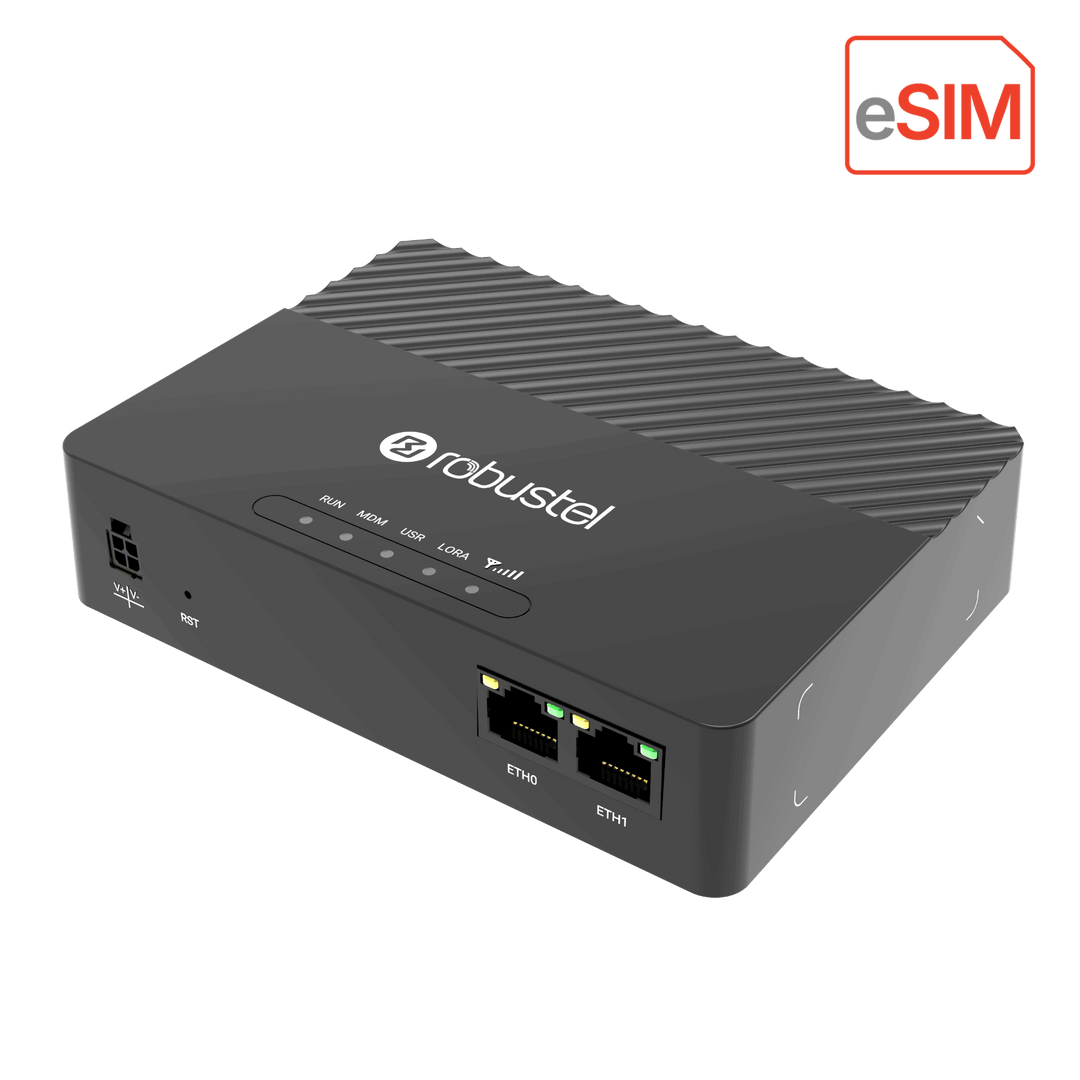

R1320LGe eSIM Industrial LoRaWAN Gateway

R1320LGe eSIM Industrial LoRaWAN Gateway

Model: R1320LGe



R1320LGe eSIM Industrial LoRaWAN Gateway Product Overview

The R1320LGe is a compact LoRaWAN gateway designed to collect data from downstream LoRaWAN end devices and forward it to the ChirpStack platform. It supports multiple uplink options, including 4G LTE Cat 4, Fast Ethernet, and 2.4 GHz Wi-Fi, enabling flexible deployment across different network environments.

● Data Forwarding: Features a 580 MHz MIPS CPU, collecting LoRaWAN end-device data and forwarding it to ChirpStack for centralized management and aggregation.

● Industrial Connectivity: Offers 4G LTE Cat 4 with eSIM, 2x Fast Ethernet with IEEE 802.3at PoE-PD support on ETH0, 2.4 GHz Wi-Fi, and LoRaWAN supporting US915, AU915, AS923, and EU868.

● Industrial OS (RobustOS): Powered by RobustOS, providing secure VPN tunnels (IPsec, OpenVPN, GRE, WireGuard) and advanced network routing capabilities.

● Simplified Cloud Management Integrates with the RCMS cloud platform for real-time network status monitoring, device location, traffic statistics, remote device operation and maintenance, and OTA updates for firmware, configurations, and applications.



IoT hardware Specifications

Hardware System

● CPU: MIPS, 580 MHz

● RAM: 128 MB

● Storage: 32 MB Flash

● Expansion: 1 x microSD

● Watchdog: External

● Reset Button: 1 x RST

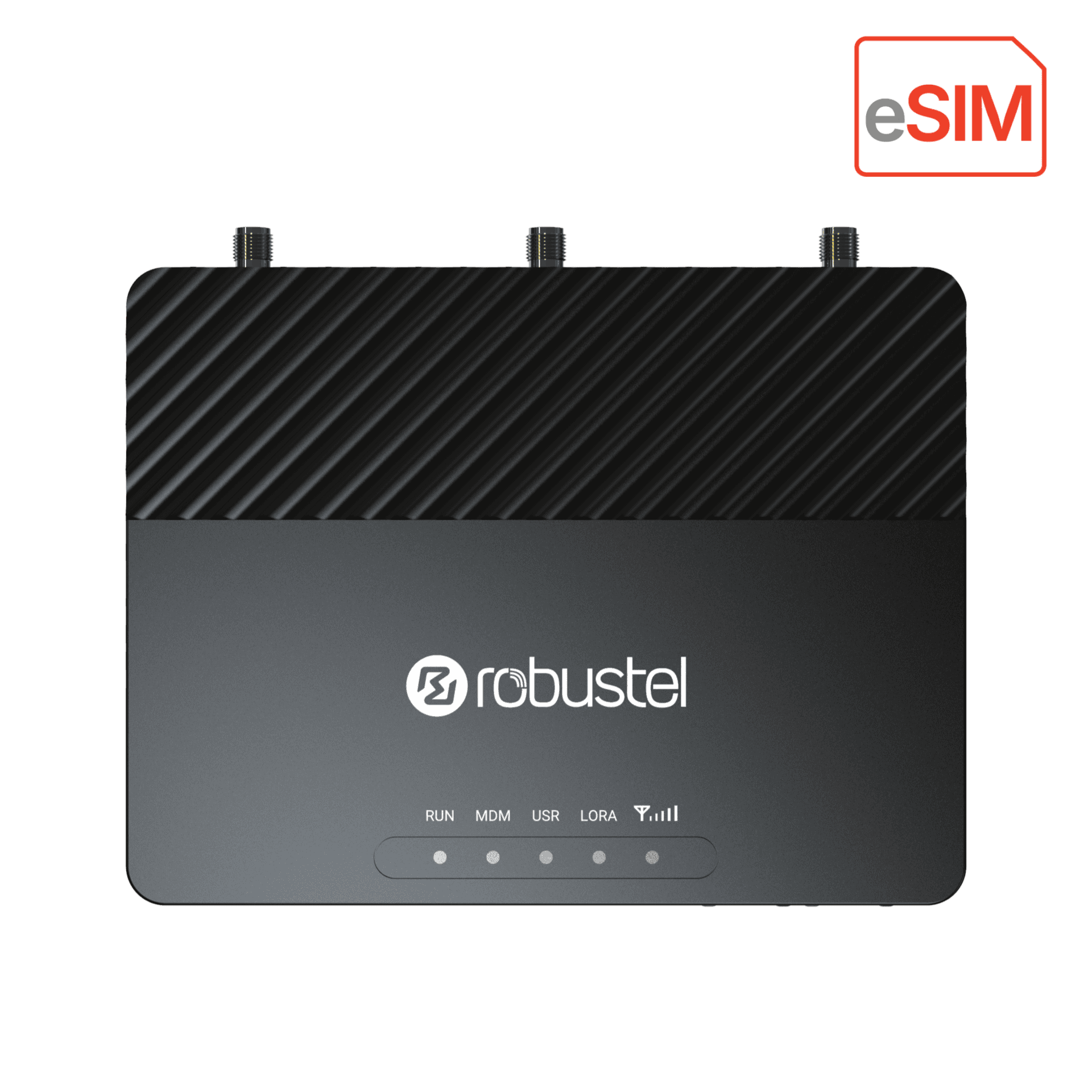

● Indicators: 1 x RUN, 1 x MDM, 1 x RSSI, 1 x LoRa, 1 x USR Network Connectivity

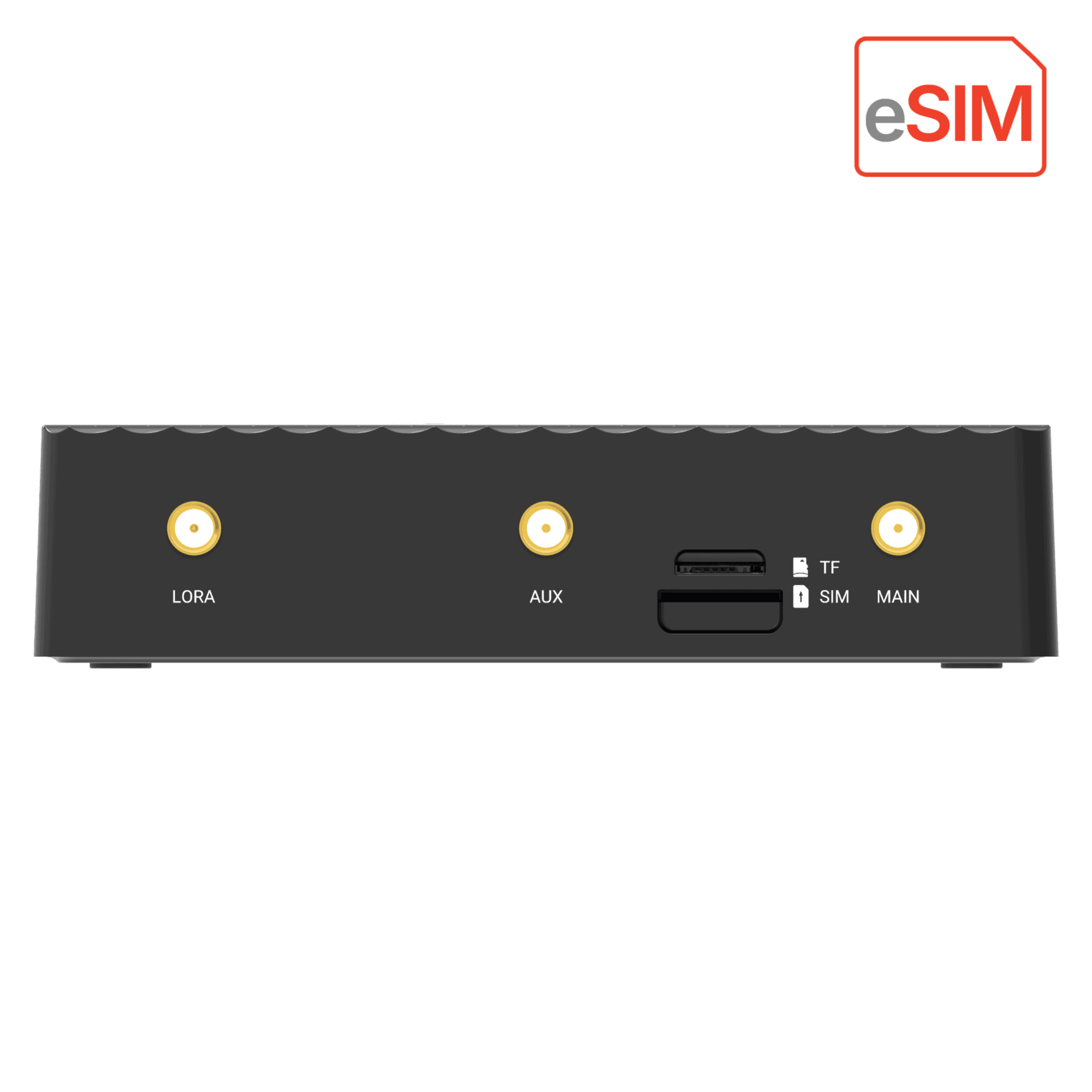

● Cellular: 4G LTE Cat 4/3G/2G (1 x SMA-K antenna)

● SIM: 1 x Mini SIM (2FF), 1 x eSIM (MFF2); GSMA SGP.22 compliant; supports profile download/removal and typically up to 8 eSIM profiles

● Wi-Fi: 802.11 b/g/n, 2.4 GHz, supports AP and client modes, up to 300 Mbps, 2x2 MIMO (Built-in antenna)

● LoRaWAN: US915, AU915, AS923, EU868, supporting up to 8 channels receiving data simultaneously (1 x RP-SMA-K antenna, Max transmit power +25 dBm, Max sensitivity -140 dBm)

Interfaces

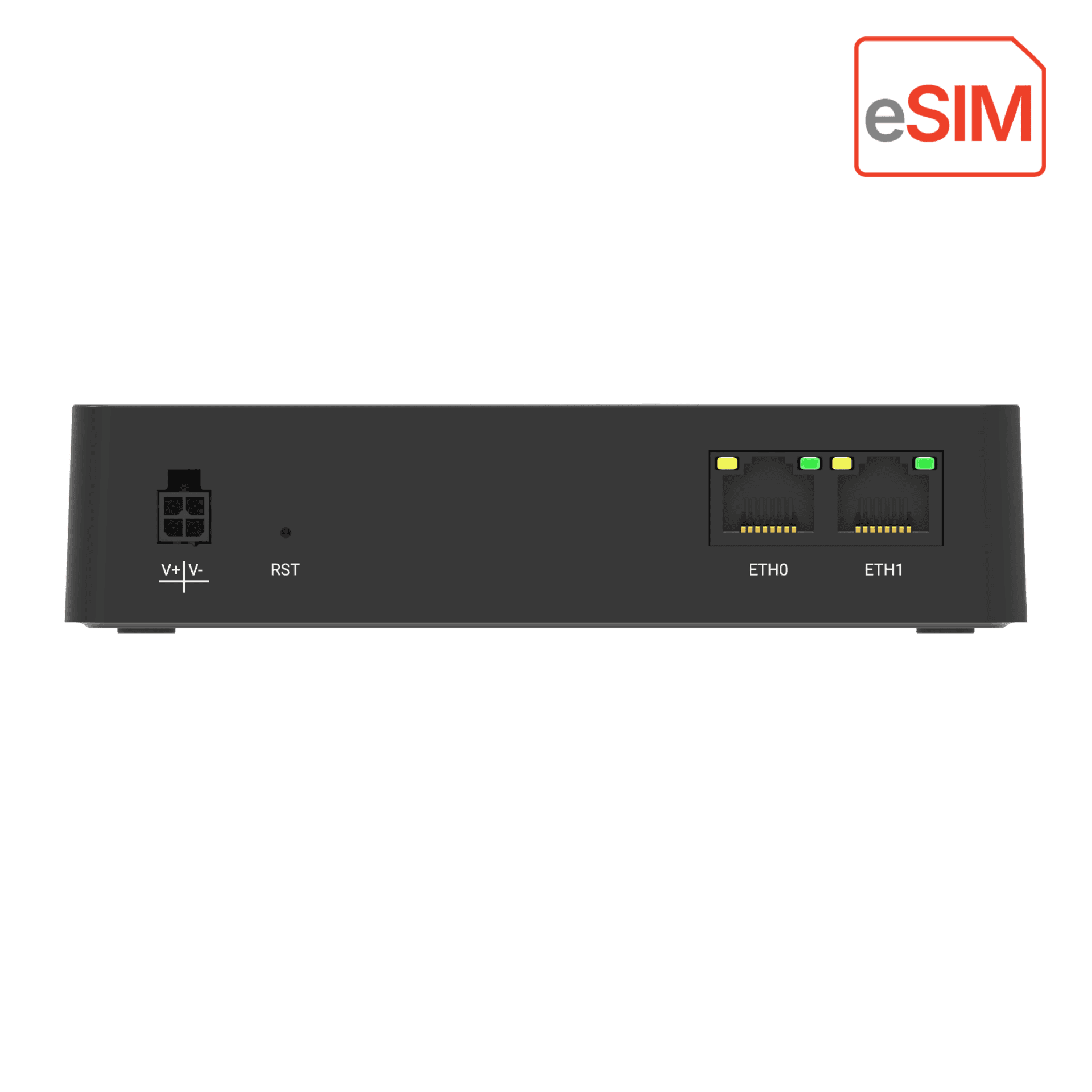

● Ethernet: 2 x 10/100 Mbps, 2 x LAN or 1 x WAN + 1 x LAN, with IEEE 802.3at PoE-PD support on ETH0

Power & Physical

● Input Voltage: 12/24 VDC, 9–36 VDC; 42.5–57.0 VDC for PoE-PD

● Power Consumption: 1.5 W (Idle), 7.5 W (Max) @ 12 VDC

● Housing: Plastic

● Protection: IP30

● Dimensions: 31 x 98 x 129 mm

● Weight: <230 g

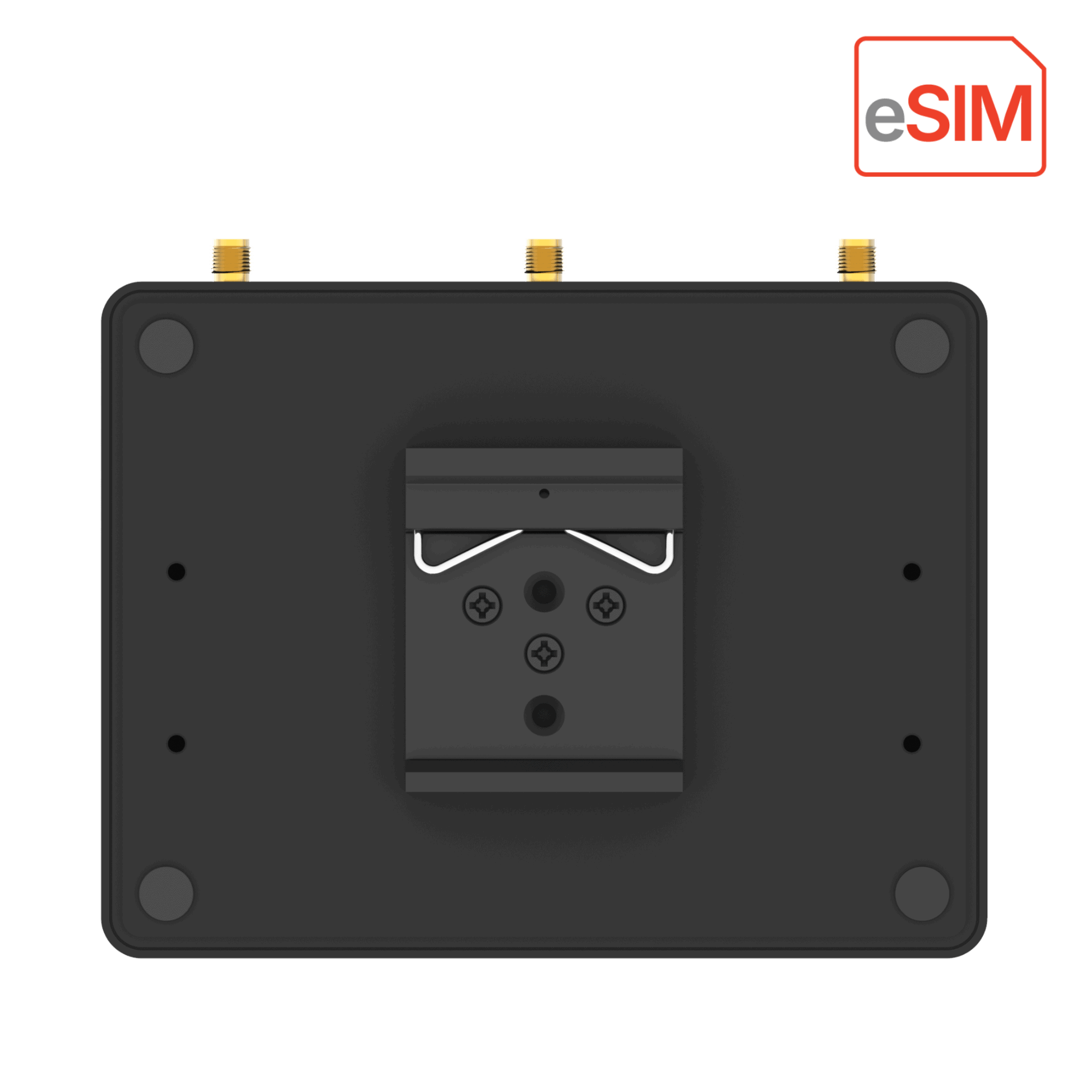

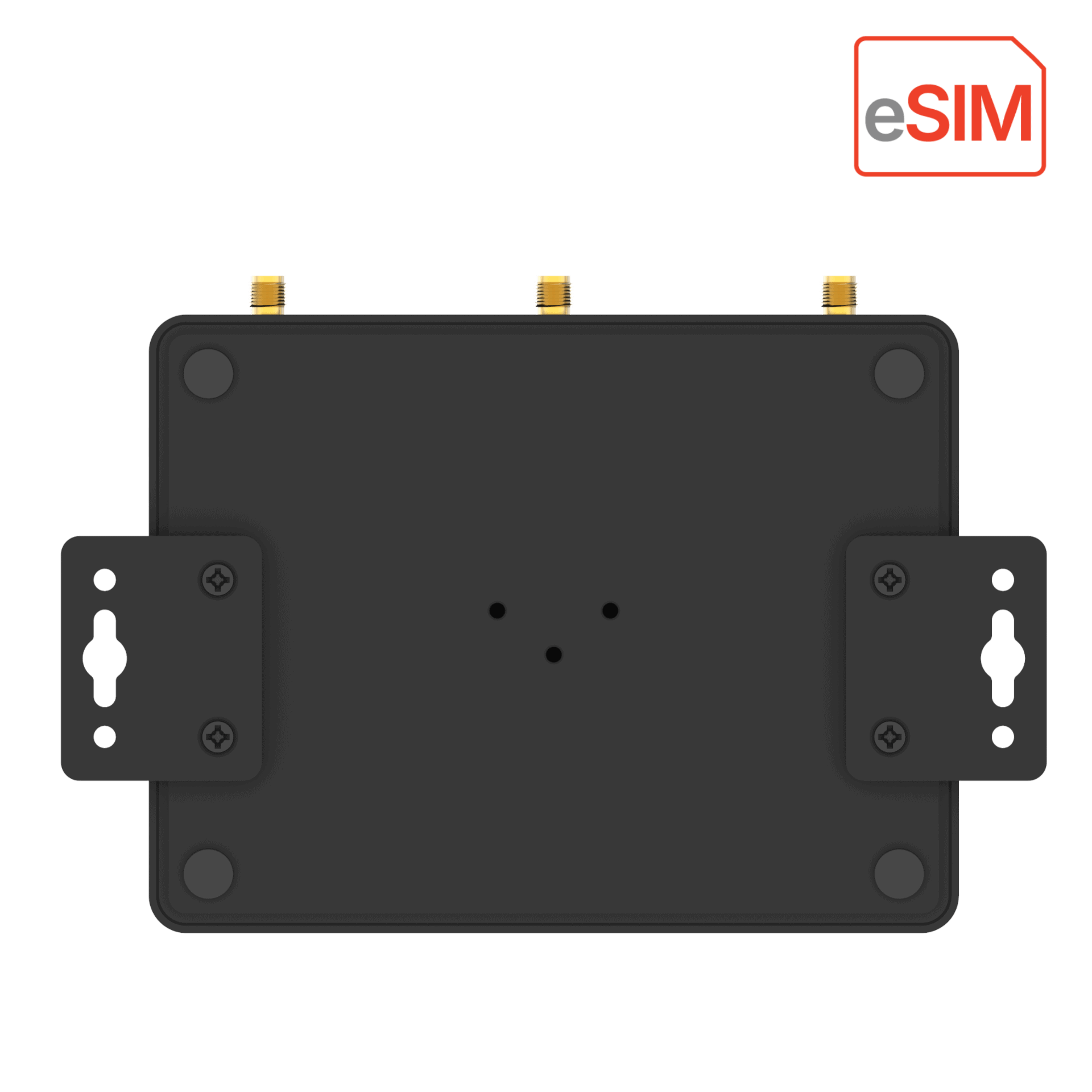

● Installation: Desktop, Wall Mounting & 35 mm DIN-Rail Mounting

Environmental

● Operating Temperature: -20°C to +70°C

● Storage Temperature: -40°C to +85°C

● Relative Humidity: 5% to 95% (non-condensing)

Certifications

● Regulatory: CE, UKCA

● Environmental: RoHS 2.0

Software

Operating System

● OS: RobustOS

Networking & Routing

● Network Protocols: PPP, PPPoE, ARP, VLAN, ICMP, NAT, TCP, UDP, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, Telnet, SSH2, SMTP, etc.

● Network Expansion: Link Management, eSIM Management

● Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)

Serial Port Protocols

● Serial Port Protocols: Transparent, TCP Client/Server, UDP, Modbus RTU

Security

● VPN: IPsec, OpenVPN, GRE, WireGuard, L2TP, PPTP, DMVPN

● Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

● Security Management: User Management, Role Management

Access Control

SDK & Customization

● SDK Languages: C, C++

● Available Resources for SDK: 16 MB Flash, 64 MB RAM

Management

● Configuration Interfaces: Web GUI, CLI, SMS, RCMS

● Remote Management Platform: Robustel Cloud Manager Service (RCMS)

● RCMS Features:

● Centralized Monitoring & Control

● Fleet-wide Over-the-Air (OTA) updates for firmware, configurations, and applications

● Secure Remote Access to device Web GUI/CLI and connected end-devices

Experience robust, cloud-native device management by registering at: Robustel Cloud Manager Service



Industrial IoT solutions Applications

● Smart Utilities & Metering

● Smart City & Municipal IoT

● Smart Building Management



Why Robustel?

● Industrial grade fanless design

● Up to 10 years hardware lifetime

● Up to 10 years long term support for Linux

● Up to 5 years hardware warranty

● Global certifications

● Robust connectivity



Ordering Information

● Order code: A015900001

● Package contains: 1 x R1320LGe+EU868, 1 x Cellular Antenna, 1 x LoRa Antenna, 1 x Power Adapter, 1 x Wall Mounting Kit



● Order code: A015900002

● Package contains: 1 x R1320LGe+AU915, 1 x Cellular Antenna, 1 x LoRa Antenna, 1 x Power Adapter, 1 x Wall Mounting Kit



● Order code: A015900003

● Package contains: 1 x R1320LGe+US915, 1 x Cellular Antenna, 1 x LoRa Antenna, 1 x Power Adapter, 1 x Wall Mounting Kit



● Order code: A015900004

● Package contains: 1 x R1320LGe+AS923, 1 x Cellular Antenna, 1 x LoRa Antenna, 1 x Power Adapter, 1 x Wall Mounting Kit
