EG5100 Industrial Edge Computing Gateway
Model: EG5100
Industrial edge computing gateway Product Overview
The Robustel EG5100 is an industrial-grade edge computing gateway combining global 4G/3G/2G cellular backhaul and ARMv7-based edge processing. Its Debian-based Linux operating system provides an open software environment, while Docker enables containerized deployment for industrial edge applications.
● Powerful Edge Computing: Features a 792 MHz Cortex-A7 CPU, 1 GB DDR3 RAM, and 8 GB eMMC for lightweight edge applications with Docker containerization.
● Comprehensive Industrial Connectivity: Offers global 4G/3G/2G connectivity, 2x 10/100 Mbps Ethernet, 2x software-configurable RS-232/485 ports, and 2x DI + 2x DO for industrial I/O monitoring and control, with optional Wi-Fi 5 (802.11ac), Bluetooth 5.2, and GNSS.
● Secure & Reliable Industrial OS (RobustOS Pro)
● Powered by RobustOS Pro, delivering enterprise-grade security, VPN, Smart Roaming V3, and SMS-based remote management.
● Simplified Cloud Management: Integrates with the RCMS cloud platform for centralized device management, real-time monitoring, interactive geospatial dashboards, and OTA updates for firmware, configurations, and applications.
IoT hardware Specifications
Hardware System
● CPU: ARM Cortex-A7, 792 MHz
● RAM: 1 GB DDR3
● Storage: 8 GB eMMC
● Watchdog: External
● Indicators: 1 x RUN, 1 x Signal, 1 x USR, 1 x MDM
Network Connectivity
● Cellular: 4G/3G/2G with global band support
● SIM: 2 x Mini SIM (2FF)
● Wi-Fi (Optional): Wi-Fi 5 (802.11a/b/g/n/ac), 2.4/5 GHz, 2x2 MIMO, supporting AP and Client modes
● Bluetooth (Optional): Bluetooth 5.2
● GNSS (Optional): GPS, GLONASS, BDS, Galileo, QZSS
Interfaces
● Ethernet: 2 x RJ45, 10/100 Mbps, LAN or WAN
● Serial: 2 x RS-232/485 (Software Configurable)
● I/O: 2 x Digital Input, 2 x Digital Output (wet contact)
● USB: 1 x USB 2.0 Host (Type-A)
Power & Physical
● Input Voltage: 9 to 60 VDC
● Power Consumption: 3 W (Idle), 12 W (Max) @ 12 VDC
● Housing: Metal
● Protection: IP30
● Dimensions: 49 x 105 x 128 mm
● Weight: 567 g

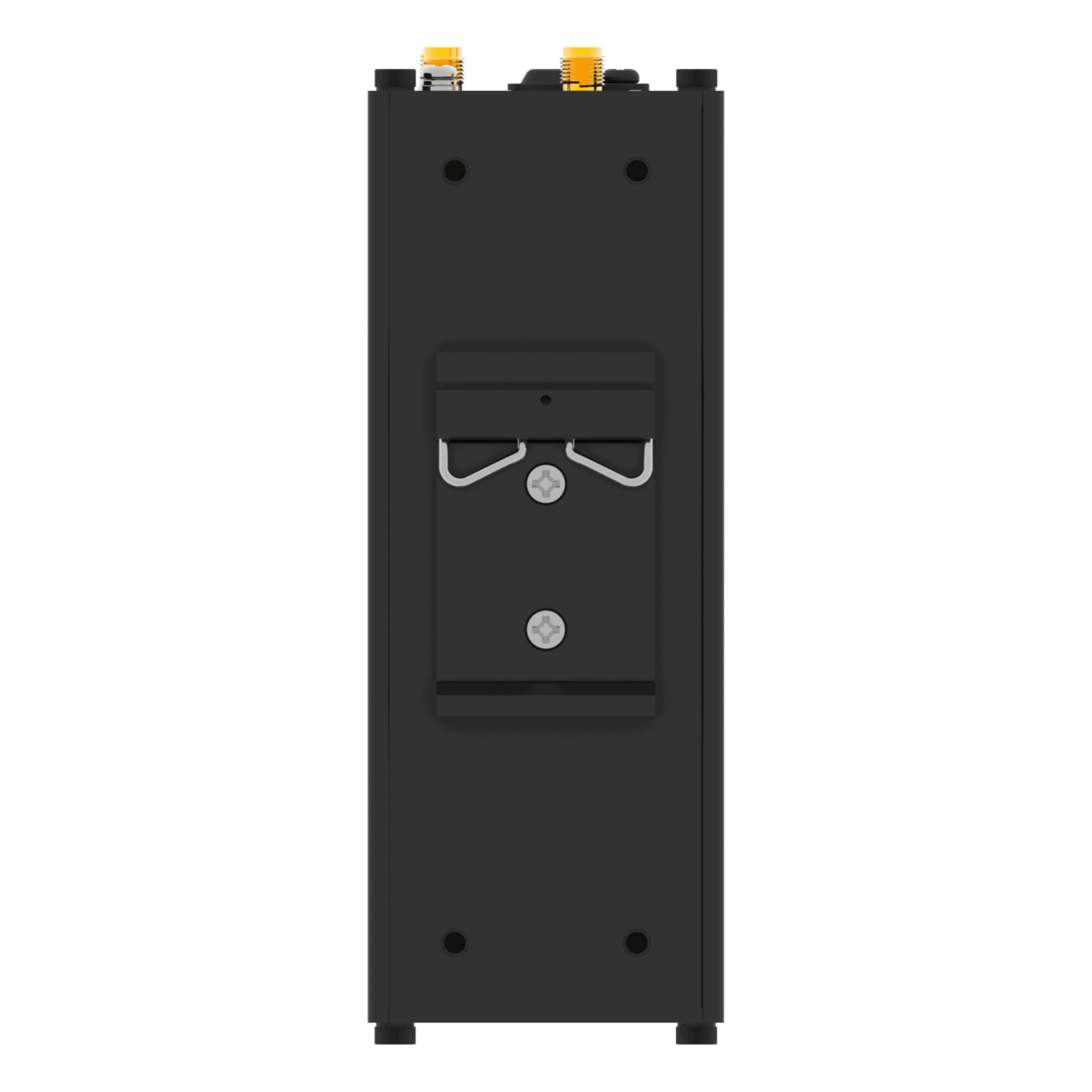

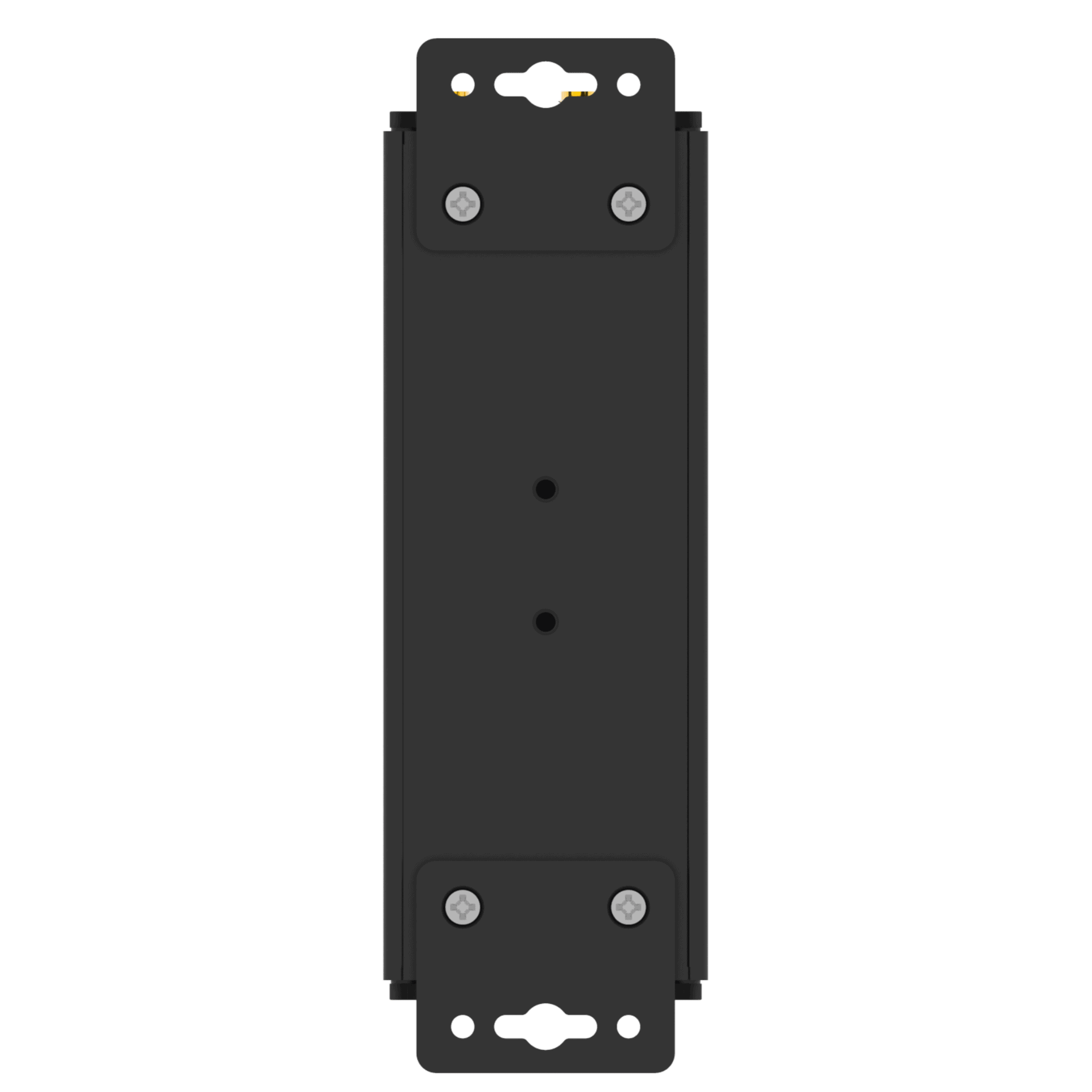

● Installation: DIN-Rail, Wall Mount, Desktop
Environmental
● Operating Temperature: -40°C to +70°C
● Storage Temperature: -40°C to +85°C
● Relative Humidity: 5% to 95% (non-condensing)
Certifications
● Regulatory: CE, RCM, CB, UKCA, FCC, IC, NTC
● Environmental: RoHS 2.0
Software
Operating System
● OS: RobustOS Pro (based on Debian Linux)
Key Supported Software & Protocols
● Serial Port Protocols: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Networking
● Network Protocols: PPP, PPPoE, ARP, VLAN, ICMP, NAT, TCP, UDP, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, Telnet, SSH2, SMTP, Static Routing, etc.
Security
● VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard
● Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
SDK & Customization
● SDK Languages: C, C++, Python, Java, Node.js
● Available Resources: 6 GB Flash, 768 MB RAM for SDK
Management
●Configuration Interfaces: Web GUI, Command Line Interface (CLI), SMS
●Remote Management Platform: Robustel Cloud Manager Service (RCMS)
●RCMS Features:
●Centralized Monitoring & Control
●Fleet-wide Over-the-Air (OTA) updates for OS, firmware, configurations, and applications
●Secure Remote Access to device Web GUI/CLI and connected end-devices
Experience robust, cloud-native device management by registering at: Robustel Cloud Manager Service
Industrial IoT solutions Applications
● Retrofit & Protocol Bridge
● Battery Storage & EV Charging
● Heavy Industrial Machinery
Why Robustel?
● Industrial grade fanless design
● Up to 10 years hardware lifetime
● Up to 10 years long term support for Linux
● Up to 5 years hardware warranty
● Global certifications
● Robust connectivity
Ordering Information
● Order code: A006600712
● Package contains: 1 x EG5100, 2 x Cellular Antenna, 2 x Wi-Fi Antenna, 1 x GNSS Antenna, 1 x Power Adapter, 1 x DIN Rail Mounting Kit
