R1520 industrial 4G VPN router buying guide
Best for
Industrial LTE deployments that need secure VPN access, serial or Ethernet connectivity, reliable remote monitoring, and a cost-effective alternative to 5G.
Not ideal for
Applications that require 5G-level throughput, heavy video backhaul, or local edge computing workloads that should run on a gateway platform.
Key specs to check
Confirm regional LTE bands, Ethernet and serial ports, VPN requirements, I/O needs, dual SIM failover, mounting, power input range, RobustOS functions, and RCMS use.
Typical deployments
SCADA/PLC connectivity, utility sites, remote machines, kiosks, industrial automation networks, backup WAN, and fleet-managed LTE router rollouts.
Technical resources and downloads
Use these official resources to verify specifications, plan deployment, manage software, and confirm support requirements.
- R1520 documentation hub - Review the Global datasheet, hardware and software manuals, quick start guide, applications, and CAD files.
- R1520 firmware downloads - Check current firmware and release notes before deployment, then test the selected build before fleet updates.
- R1520 certifications and approvals - Match approvals to the exact part number, carrier, country, and project compliance requirements.
- RobustOS platform overview - Review the operating system features used for VPN, routing, security, applications, and remote configuration.
- RCMS remote device management - Assess centralized provisioning, monitoring, firmware operations, and troubleshooting for distributed R1520 fleets.
Related comparison paths
- Compare R5020 Lite when the project needs 5G throughput
- Compare EG5120 when routing is not enough and edge logic is needed
Buyer questions
Is R1520 Global Industrial 4G VPN Router a good fit for my project?
It is a strong fit when your project matches the use cases listed in the Best for section and the key specs align with your network, interface, environmental, and management requirements.
What should I confirm before ordering R1520 Global Industrial 4G VPN Router?
Confirm regional connectivity, ports, power, mounting, operating environment, software features, management workflow, and whether you need accessories such as antennas, cables, sensors, or a gateway.
Can R1520 Global Industrial 4G VPN Router be used for SCADA, PLC, or remote monitoring?
Many Robustel products are used in SCADA, PLC, and remote monitoring workflows. Match the required protocol, interface, bandwidth, and security requirements to the product specifications before deployment.
Where should I go next if I am comparing options?
Compare the related collection, review application articles in the Industrial IoT Blog, or contact Robustel with your site requirements for a technical recommendation.
Next steps

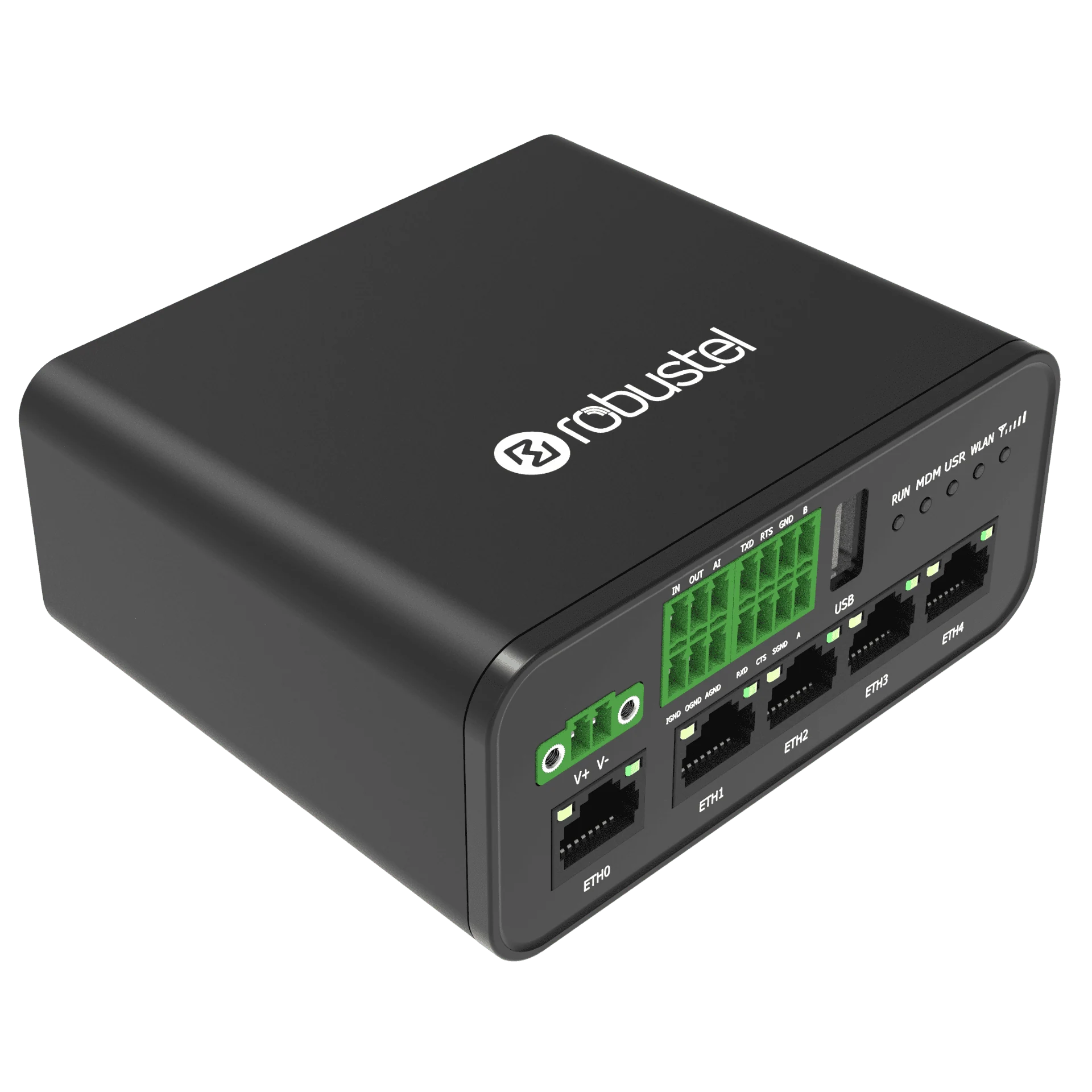

Global Industrial 4G VPN Router
Model: R1520 Global
Industrial 4G VPN Router Product Overview
The ideal solution for widespread global M2M/IoT deployments, providing versatile, reliable connectivity backed by comprehensive certifications for immediate international use.
● Global Connectivity & Certification:
Features a global LTE Cat 4 module with dual-SIM failover. It is fully certified with extensive global (CE, UKCA, RCM, FCC, IC, PTCRB, Anatel, IMDA, NBTC, POSTEL, ICASA, KCC, TRA, etc.) and major carrier (AT&T, Verizon) approvals.
● Rich Industrial Interfaces:
Equipped with 5 Ethernet ports, serial (RS232/RS485), Digital and Analog I/O for connecting to diverse field assets.
● Enterprise-Grade Security:
Runs on the hardened, penetration-tested Linux based RobustOS. Secures data with a powerful firewall and a full suite of VPNs (IPsec, OpenVPN, DMVPN, GRE, Wireguard, etc.).
● Simplified Cloud Management:
Integrates fully with the RCMS cloud platform for fleet-wide monitoring, OTA updates of both the OS and applications running in containers, and secure remote access to end devices like PLCs, dramatically reducing operational costs.
Iot hardware Specifications
System
● CPU: 650 MHz
● RAM: 128 MB
● Storage: 16 MB
● Indicators: LED for Power, RUN, MDM, USR, RSSI, Wi-Fi
Network Connectivity
● Cellular:
● Modem: Global 4G LTE Cat 4
● SIM: 2 x SIM Slots (Mini SIM - 2FF), Dual SIM Failover

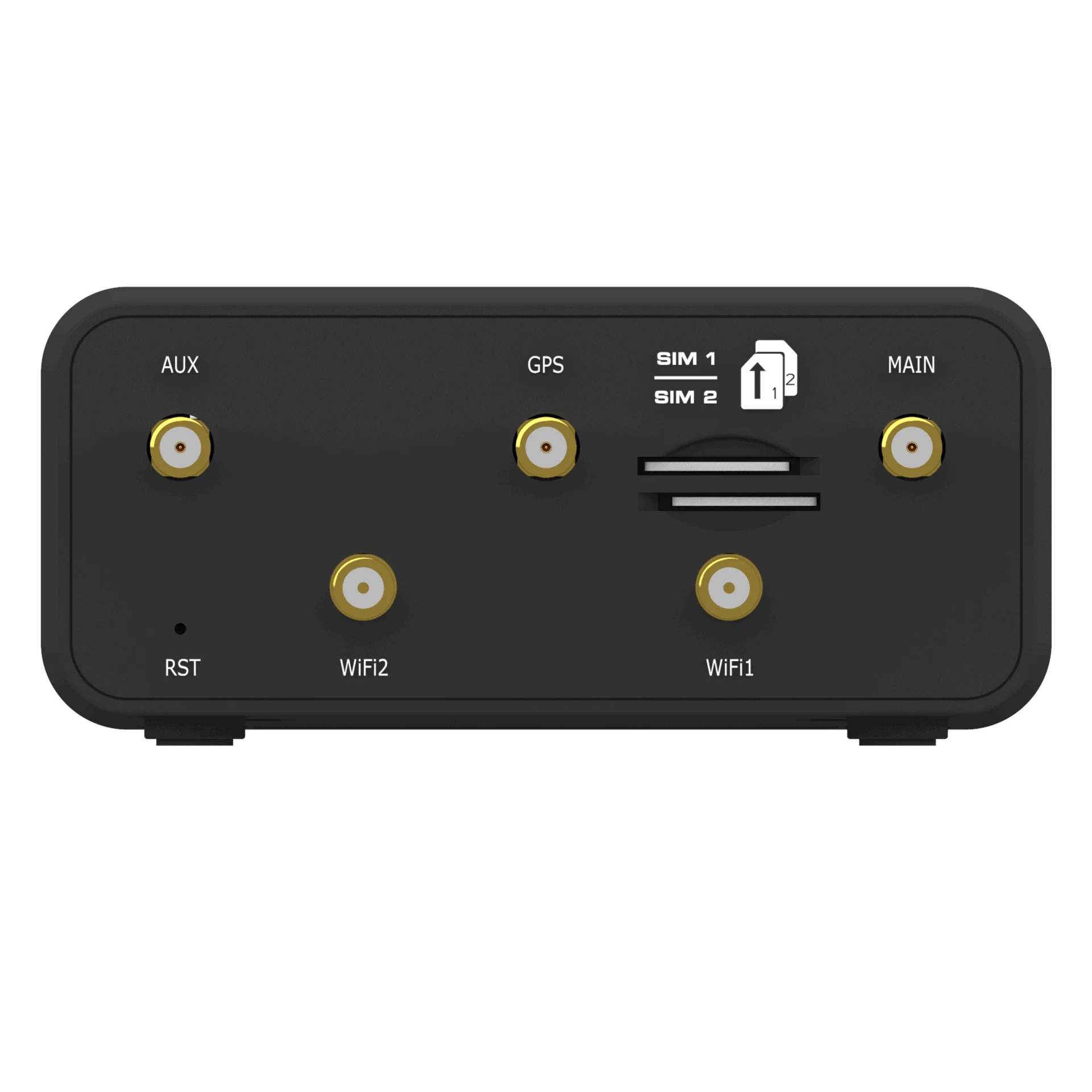

● Antennas: 2 x SMA Connectors
● Wi-Fi:
● Standard: 802.11 b/g/n, 2.4 GHz
● Modes: Access Point (AP), Client
● Antennas: 2 x RP-SMA Connectors
● GNSS (Optional):
● Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS

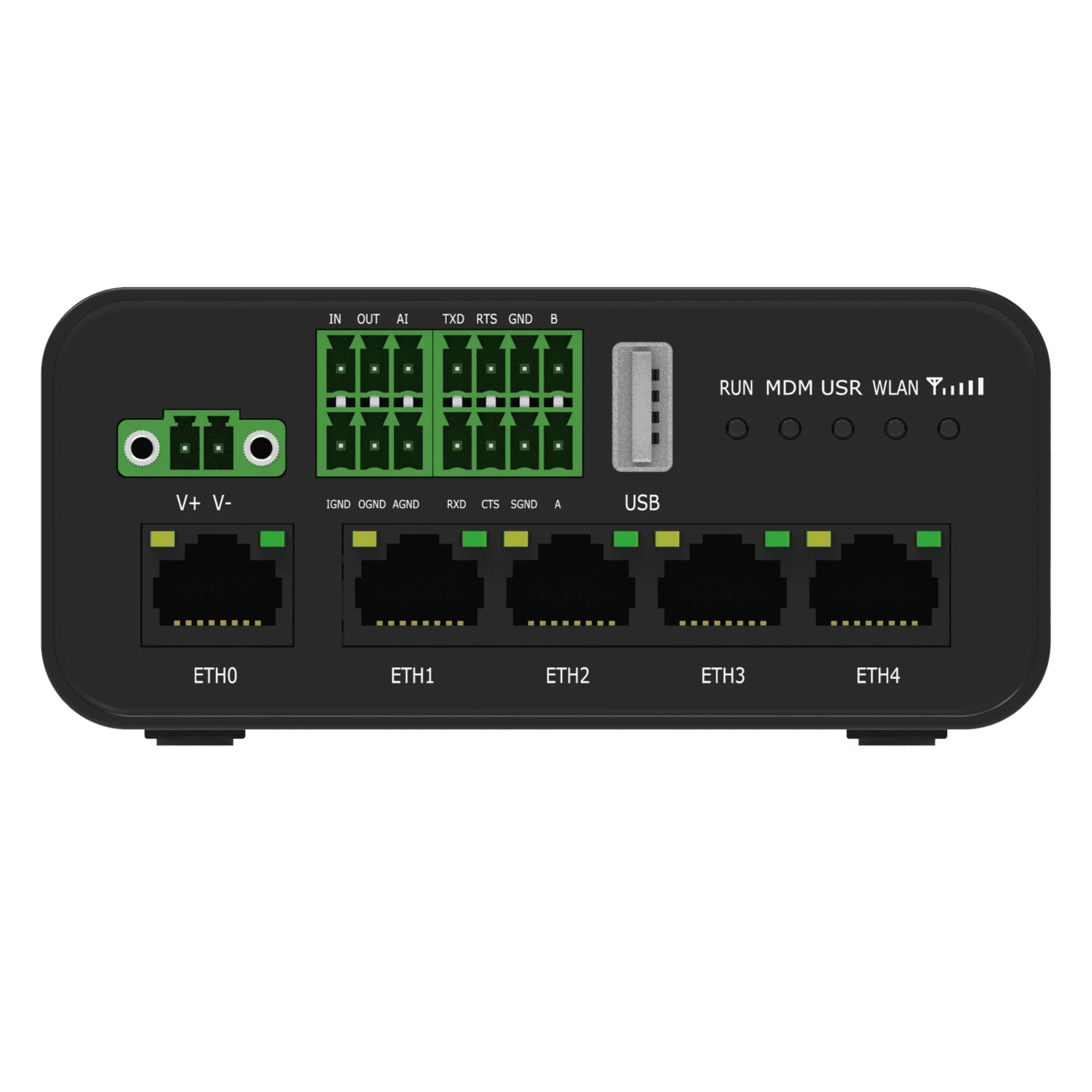

Interfaces
● Ethernet: 5 x 10/100 Mbps, RJ45
● Configuration: Configurable as 1 x WAN + 4 x LAN, or 5 x LAN
● PoE: ETH0 supports PoE PD (IEEE 802.3af/at)
● Serial: 1 x RS232, 1 x RS485
● I/O (Industrial): 1 x DI, 1 x DO, 1 x AI (Selectable 0-24VDC or 4-20mA)
● USB: 1 x USB 2.0 Host (Type-A)
Power & Physical
● Input Voltage: 9 to 36 VDC (3.5mm Pitch Terminal Block or via PoE PD)
● Power Consumption: ~3W (Idle @ 12VDC), ~10.7W (Max @ 12VDC)
● Housing: Plastic
● Protection: IP30
● Dimensions: 105 x 90 x 46 mm
● Weight: 250 g

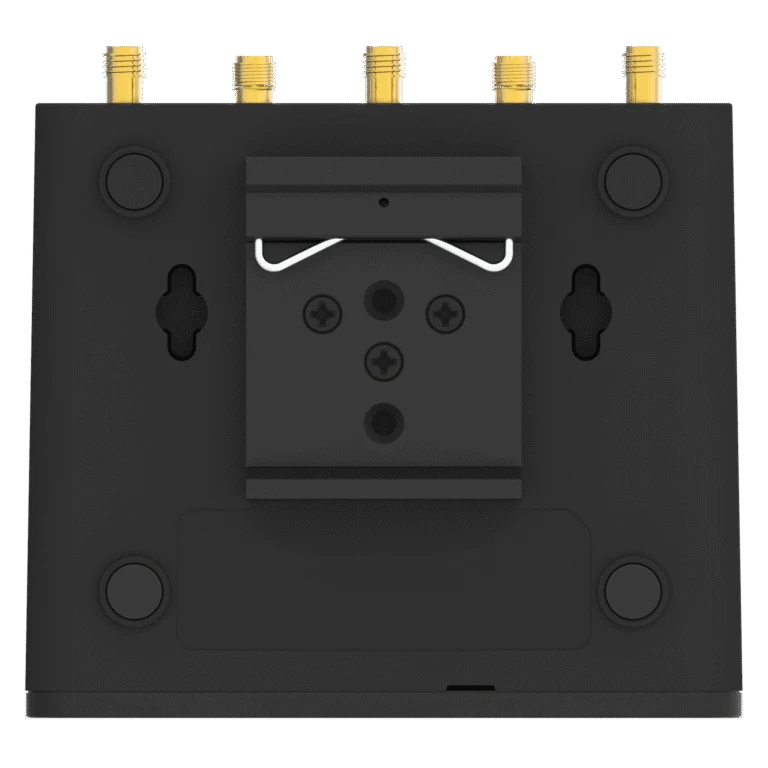

● Installation: DIN-Rail, Wall Mount, Desktop
Environmental
● Operating Temperature: -25°C to +70°C
● Storage Temperature: -40°C to +85°C
● Relative Humidity: 5% to 95% (non-condensing)
Certifications
● Core Global Regulatory: CE, UKCA, RCM, FCC, IC, PTCRB, Anatel (Brazil), KCC (Korea), IMDA (Singapore), NBTC (Thailand), ICASA (South Africa), TDRA (UAE), SIRIM (Malaysia), NOM (Mexico), POSTEL (Indonesia) (Note: This product holds an extensive list of additional regional certifications)
● Major Carrier Approvals: AT&T, Verizon, Rogers
● Automotive: E-Mark
● Environmental Standards: RoHS 2.0, WEEE
Software
Operating System
● OS: RobustOS (Linux-based, optimized for Robustel industrial routers)
Key Supported Software & Protocols
● Industrial Protocols: Modbus RTU to TCP Gateway, many others
● Supported Applications/Features: VRRP, QoS, SNMP, Captive Portal, WLAN multi AP, Edge2Cloud (Note: Availability may vary by specific router model and firmware version)
Networking
● Network Protocols: TCP, UDP, IPv4/v6, PPP, PPPoE, DHCP, ICMP, NAT, HTTP(S), DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS
● Routing: Static routing; Dynamic routing (BGP, OSPFv2, RIPv1/v2)
● Serial Port Protocols: Transparent TCP Client/Server, UDP, Modbus RTU to TCP Gateway
Security
● VPN: IPsec, OpenVPN, Wireguard, GRE, L2TP, PPTP, DMVPN (Note: Specific protocol availability may be via 'Apps' or vary by model)
● Firewall: Stateful firewall with DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
SDK & Customization
● SDK Languages: C, C++
● Available Resources: Approx. MB Flash, 64 MB RAM dedicated for user applications (as stated in provided specs; may vary by specific router model)
Management
● Configuration Interfaces: Web GUI, Command Line Interface (CLI), SMS
● Remote Management Platform: Robustel Cloud Manager Service (RCMS)
● RCMS Features:
● Centralized Monitoring & Control
● Fleet-wide Over-the-Air (OTA) updates for OS and firmware
● Secure Remote Access to device Web GUI/CLI and connected end-devices
Experience robust, cloud-native device management by registering at: https://rcms-cloud.robustel.net
Industrial IoT solutions Applications
● Industrial IoT
● Autonomous robots
● CCTV
● Smart city
● Enterprise IT
Ordering Information
● Order code: A005600706
● Package contains: 1 x R1520 Global, 1 x Din-Rail, 2 x cellular antennas, 2 x Wi-Fi antennas, 1 x global power adapter
