The Importance of Dual-SIM Redundancy in LoRaWAN Gateways

In the Industrial IoT, data loss is expensive. When a LoRaWAN gateway is deployed in a remote oil field or a substation, a network outage from a single cellular carrier can blind the entire monitoring system. This article explores the critical importance of "Dual-SIM Redundancy." We explain how industrial gateways utilize two SIM cards from different carriers (e.g., AT&T and Verizon) to enable automatic failover. By securing the backhaul link, enterprises can eliminate single points of failure and guarantee network availability even during carrier outages.

For most consumer electronics, losing internet access is an inconvenience. For the Industrial IoT, it is a liability. A missed packet could mean a missed pipeline leak alarm or a critical failure in a water treatment plant.

The core job of a LoRaWAN gateway is to bridge the gap between local sensors and the cloud. In many industrial scenarios, Ethernet is unavailable, making Cellular (4G/LTE) the only viable backhaul.

However, no single mobile operator guarantees 100% uptime. Cell towers lose power, fiber lines get cut, and networks suffer from configuration errors.

If your LoRaWAN gateway has only one SIM card slot, you are placing your entire operation at the mercy of one provider. This guide explains why "Dual-SIM Redundancy" is a mandatory feature for any professional deployment.

Dual-SIM redundancy means the gateway hardware is equipped with two physical SIM card slots. This does not usually mean the device uses both simultaneously for bandwidth (Load Balancing); instead, it operates in "Active/Standby" mode.

• Primary SIM: This is your preferred carrier, often selected for lower data rates or better general coverage.
• Backup SIM: A card from a different network operator (e.g., if Primary is Verizon, Backup is T-Mobile).

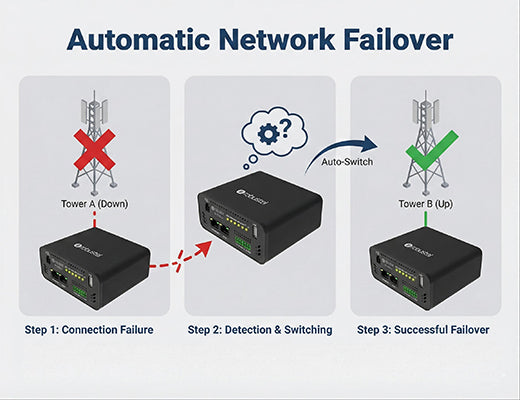

When the LoRaWAN gateway detects that the Primary connection has failed, it automatically activates the Backup SIM and re-establishes the cloud tunnel. This process typically takes less than a minute, ensuring minimal data loss.

Topography is the enemy of radio. Due to hills or buildings, Carrier A might have zero signal at a specific pump station, while Carrier B has full bars.

• The Single-SIM Risk: If you bulk-buy Carrier A SIMs, you arrive at the site to find your LoRaWAN gateway cannot connect. You must halt installation and buy new SIMs.
• The Dual-SIM Advantage: You install both. The LoRaWAN gateway automatically connects to whichever carrier works best. This simplifies logistics and standardizes your deployment process.

Even major carriers have outages.

• The Scenario: A storm knocks out power to the local cell tower of your primary carrier.
• The Result: A single-SIM LoRaWAN gateway goes dark. Because these gateways are often in remote, unmanned locations, dispatching a technician to swap a SIM card costs hundreds of dollars in "truck rolls." A Dual-SIM device solves this automatically, preserving your SLA without anyone leaving their desk.

Low-end hardware only switches when the signal is totally lost. However, a premium industrial LoRaWAN gateway (like the Robustel R1520LG) features "Smart Roaming" or "ICMP Keepalive."

It doesn't just check for signal bars; it checks for data flow.

• The Logic: The gateway continuously pings a reliable server (like 8.8.8.8).
• The Failover: If the LoRaWAN gateway shows full 4G signal but the ping fails (indicating a routing issue inside the carrier's network), the gateway forces a switch to the backup SIM. This ensures true application connectivity, not just a physical link.

Some managers worry that Dual-SIM increases costs. In reality, a Dual-SIM LoRaWAN gateway strategy is often cheaper in the long run.

• Hardware Cost: The price difference for a dual-slot modem is negligible.
• Data Cost: You do not need two expensive plans. The backup SIM can be on a low-cost "pay-as-you-go" IoT plan since it sits idle 99% of the time.
• TCO (Total Cost of Ownership): Avoiding just one emergency site visit saves enough money to pay for the backup SIMs for the entire life of the fleet.

In the industrial world, reliability is everything. Your sensors might have 10-year batteries, and your LoRa protocol might penetrate concrete, but if your backhaul link snaps, the system fails.

Choosing a LoRaWAN gateway with Dual-SIM redundancy is a low-cost insurance policy for your network. It ensures that no matter what happens—whether a tower failure or a coverage hole—your critical sensor data always finds a path to the cloud.
