RS485 to Ethernet: Bridge Your Serial Devices to SCADA

Written by: Mark

|

Published on

|

Time to read 7 min

Author: Mark, Technical Support Engineer

Mark is an IoT Technical Support Engineer at Robustel with hands-on experience in industrial networking and edge connectivity. Certified as a Networking Engineer, he specializes in helping customers deploy, configure, and troubleshoot IIoT solutions in real-world environments. In addition to delivering expert training and support, Robert provides tailored solutions based on customer needs—ensuring reliable, scalable, and efficient system performance across a wide range of industrial applications.

Summary

This article provides a comprehensive guide for system integrators and automation engineers on solving the "data island" problem in industrial settings.

We'll break down how to use an R1520 gateway for serial transparent transmission, seamlessly connecting legacy serial devices to modern SCADA systems and cloud platforms.

We will walk through a real-world project example, covering system architecture, hardware deployment, device configuration, and SCADA integration, offering a practical blueprint for your next IIoT project.

Introduction

I've seen it in countless factories—a workshop humming with efficiency, where dozens of PLCs, VFDs, smart meters, and sensors collaborate flawlessly. They speak a common language, often Modbus RTU, over a simple, cost-effective, and remarkably reliable RS485 serial bus. This is the backbone of operational technology (OT). But here's the catch: all that priceless operational data is often trapped, isolated on that physical bus. It’s a classic data island.

The big question isn't it? How do you bridge the gap between that rugged RS485 network stretching across the factory floor and the central SCADA system in the control room, or better yet, your company's cloud platform? This is the critical "last mile" challenge in the industrial data chain. Let's be clear: solving this isn't just about connecting wires; it's about unlocking the true potential of your industrial data.

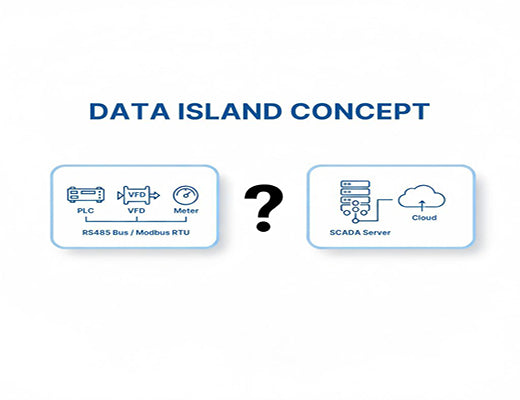

A diagram illustrating the data island problem where an isolated RS485 serial bus cannot connect to a central SCADA system or the cloud.

Why an RS485 to Ethernet Solution is Your Best Bet

When you're faced with connecting a legacy serial bus to a modern IP network, you have a few options. But in my experience, a serial transparent transmission solution using an RS485 to Ethernet converter or gateway is almost always the superior choice.

The Limitations of Traditional Methods

Let's quickly look at the old ways of doing things and why they fall short:

  • Dedicated Serial Cables: Running long-distance, shielded serial cables is expensive, labor-intensive, and highly susceptible to electromagnetic interference over long runs.
  • Fiber Optic Converters: While effective for long distances, this approach adds unnecessary complexity and cost, requiring a pair of converters and dedicated fiber optic cabling.
  • PC with Serial Cards: Placing a PC with multiple serial cards in the workshop is a maintenance nightmare. It introduces another point of failure and isn't designed for harsh industrial environments.

The Advantages of Serial Transparent Transmission

The real 'aha!' moment for many engineers is when they realize they can leverage the factory's existing IP network infrastructure. This is where an RS485 to Ethernet gateway(R1520) shines.

  • Leverage Existing Infrastructure: You've already invested in a factory-wide Ethernet network. This solution uses that backbone, eliminating the need for extensive new cabling.
  • Protocol Transparency: The beauty of "transparent transmission" is that the gateway doesn't need to understand the Modbus RTU protocol. It simply encapsulates the raw serial data into TCP/IP packets. Your SCADA software communicates exactly as it would with a physical COM port, requiring zero changes to your polling engine or device drivers.
  • Scalability and Flexibility: Any location with an Ethernet port becomes a potential data access point. Expanding your system in the future is as simple as adding another gateway to the network.

The core of this solution is an industrial-grade serial device server or, for more robust applications, an Industrial IoT Gateway. It acts as the critical bridge, translating between the serial world and the IP world.

Implementation Blueprint: A Real-World Project

Let's move from theory to practice. Imagine a manufacturing facility with three separate utility workshops. Each shop contains 5 air compressors and 3 large water pumps, all communicating on a local RS485 bus (Modbus RTU) to an HMI. The goal is to centrally monitor all 24 assets from the main control room.

Step 1: System Architecture Design

The first step is to design a clear and simple network topology. In each of the three utility workshops, we'll install an industrial IoT gateway.

  • Hardware: A Robustel R1520 Industrial IoT Gateway will be deployed in each workshop's control cabinet.

A realistic CAD-style rendering of the bottom interface panel of a black Robustel industrial gateway. The image shows five Gigabit Ethernet ports (ETH0-ETH4), a USB port, terminal blocks for DIDO, AI, and Serial communication (RS232/RS485), a power input terminal (V+, V-), and status LED indicators for RUN, MDM, USR, and WLAN.


  • Connections: The gateway's RS485 port connects directly to the workshop's existing Modbus RTU bus.The gateway's Ethernet port connects to the factory's local area network (LAN) switch.
  • Network: The SCADA server in the central control room resides on the same IP network as the three gateways, allowing for seamless communication.

Network topology diagram using Robustel R1520 gateways to connect three separate RS485 buses to a central SCADA server over an Ethernet LAN.


Step 2: Hardware Deployment and Wiring

This is where professionalism counts. An industrial environment is unforgiving.

  1. Physical Installation: The R1520's DIN-rail mounting makes for a clean and secure installation inside the existing control panels. Its wide operating temperature ensures reliability in the workshop environment.
  2. Wiring Best Practices:
    • Connect the RS485 A+ and B- differential signal lines to the gateway's terminal block.
    • Insider Tip: Pay attention to the termination resistor. If your gateway is at the physical end of the RS485 bus, you must enable the built-in 120Ω termination resistor to prevent signal reflections.
    • Ensure proper grounding. This is a simple step that is often overlooked but is critical for noise immunity in an industrial setting.

Step 3: Gateway Configuration (Transparent Transmission Mode)

Here's how we configure the gateway to act as our RS485 to Ethernet bridge. Using the Robustel web interface:

  • Network Settings: Assign a static IP address to each gateway (e.g., 192.168.1.101, 192.168.1.102, 192.168.1.103) so the SCADA system always knows where to find them.

A screenshot of the Robustel Web GUI's Link Manager interface for configuring network connections. The image highlights the 'Static Address Settings' section with a red rectangle, showing manual entry fields for IP Address, Gateway, and Primary DNS for a WAN interface.



  • Serial Port Settings: Configure the serial port parameters (Baud Rate, Data Bits, Parity, Stop Bits) to exactly match the settings of the devices on the RS485 bus.
  • Working Mode: Select "TCP Server"mode.
    • Why this mode? In TCP Server mode, the gateway passively listens on a specific network port (the default for Modbus is often 502). The SCADA system, acting as the TCP client, will initiate the connection to the gateway's IP address and port. This is the most stable and standard configuration for SCADA applications, as the master (SCADA) is in control of the communication session.

A screenshot of the RobustOS Web GUI showing the Serial Port configuration window. The interface displays parameters for COM1, including Baud Rate and Data Bits, along with Data Packing settings and a Server Setting section configured for Modbus RTU Gateway mode using the TCP Server protocol.


Step 4: SCADA Software Integration

The final piece of the puzzle is telling your SCADA software how to find the devices. Whether you're using Ignition, WinCC, or KingView, the principle is the same.

You no longer configure a physical COM port. Instead, you'll configure a TCP/IP connection.

  1. Add a New Device/Channel: In your SCADA's communication driver settings, choose the Modbus TCP/IP driver.
  2. Configure the Connection: Instead of selecting a COM port, you will now input the IP address and Port for each gateway. You'll create three separate connections, one for each workshop:
    • Connection 1: 192.168.1.101, Port 502
    • Connection 2: 192.168.1.102, Port 502
    • Connection 3: 192.168.1.103, Port 502

A 3D photorealistic digital overlay of a Factory SCADA System interface set against a professional server room background. The UI displays the configuration of Modbus TCP/IP gateways for Workshops A, B, and C, including IP address assignments, port 502 settings, and green 'Connected' status indicators for real-time industrial monitoring.


  1. Define Your Tags: The SCADA system will now poll the Modbus slave addresses through the IP network just as if they were connected locally. The transparent transmission handles the rest. Once configured, you'll see your data points populate and real-time trends begin to draw.

The Value Proposition of an RS485 to Ethernet Gateway

By implementing this solution, you've achieved several key business outcomes:

  • Efficiency: Centralized, real-time monitoring of geographically distributed serial devices becomes a reality, dramatically improving operational awareness and reducing the need for manual checks.
  • Reliability: Industrial-grade hardware combined with the robust TCP protocol ensures stable and accurate data transmission, even in noisy electrical environments.
  • Cost-Effectiveness: This approach protects your investment in existing serial equipment and maximizes the use of your current network infrastructure. It's a high-impact upgrade with a very reasonable TCO.
  • Future-Proofing: Once your OT data is on the IP network, the possibilities are endless. You've laid the foundation for integration with MES and ERP systems, or for sending data via MQTT to cloud platforms for advanced analytics and machine learning.

For a reliable and easy-to-configure solution, the Robustel R1520 Industrial IoT Gateway is an ideal choice, offering the industrial hardening and powerful software features needed to build a stable RS485 to Ethernet data bridge.

FAQ

Q1: What is the difference between TCP Server and TCP Client mode on an RS485 to Ethernet converter?

A1: In TCP Server mode, the converter waits for an external system (like a SCADA master) to initiate a connection to it. This is the most common and recommended mode for SCADA applications. In TCP Client mode, the converter actively initiates a connection to a pre-defined server IP address. This is useful for remote devices that need to "push" their data to a central server, especially if they are behind a firewall.

Q2: Can I connect multiple SCADA masters to a single RS485 to Ethernet gateway?

A2: Typically, a standard TCP Server connection allows only one client to be connected at a time. Once a SCADA master connects, the port is occupied. If you need multiple masters to poll the same serial devices, you'll need a gateway that supports multiple TCP server sessions or has more advanced data-sharing capabilities.

Q3: What is "Modbus RTU over IP" and how does it relate to this?

A3: "Modbus RTU over IP" is another term for what we've described. It specifically refers to the process of taking a Modbus RTU frame from a serial line (RS485) and encapsulating it within a TCP/IP packet for transport over an Ethernet network. This is precisely what serial transparent transmission accomplishes for Modbus communications. It's different from Modbus TCP, which is a distinct protocol designed for native Ethernet communication.
