Outdoor vs. Indoor LoRaWAN Gateways: Choosing the Right Enclosure (IP67)

The decision to deploy an Indoor or Outdoor LoRaWAN gateway dictates the performance of your entire network. While indoor units are cheaper, they suffer from signal attenuation (walls blocking coverage) and environmental failure. This guide compares the two form factors. We explain why an IP67-rated Outdoor LoRaWAN gateway is essential for industrial range and reliability. By moving the gateway from the server room to the rooftop, you maximize Line of Sight, reduce building interference, and ensure your hardware survives rain, dust, and extreme temperatures.

When specifying hardware for an IoT network, the first physical choice you make is the enclosure. Do you buy a sleek plastic box that sits on a shelf, or a rugged metal block that bolts to a mast?

The price difference is noticeable. The indoor unit is cheaper.

However, the performance difference is massive.

In LoRaWAN, coverage is currency. An indoor LoRaWAN gateway is limited by the walls around it. An outdoor LoRaWAN gateway owns the horizon. This guide helps you choose the right enclosure for your specific deployment, explaining why "going outside" is almost always the right move for industry.

An indoor LoRaWAN gateway is designed for conditioned environments. It usually has a plastic casing and looks like a Wi-Fi router.

• The Use Case: Smart Buildings (monitoring room occupancy), Laboratories, or small Warehouses where sensors are strictly internal.
• The Problem (Signal Loss): Radio waves struggle to penetrate building skins. Modern "Low-E" glass and reinforced concrete walls act as Faraday cages. If you place an indoor LoRaWAN gateway in a basement server room, it will likely fail to hear a water meter in the parking lot just 50 meters away.
• The Problem (Heat): Indoor units rely on passive air vents. If placed in a hot attic or a non-AC electrical room, they often overheat and throttle performance.

An outdoor LoRaWAN gateway (like the Robustel R1520LG) is built for the elements. It is heavy, sealed, and robust.

• The Use Case: Smart Cities, Agriculture, Oil & Gas, Campus-wide monitoring.
• The Enclosure (IP67): It carries an IP67 rating. "6" means it is dust-tight (no dust can enter). "7" means it can be submerged in water up to 1 meter. It handles driving rain, snow, and humidity without issues.
• The Mounting: It comes with bracket kits for pole or wall mounting, allowing you to place the LoRaWAN gateway at the highest possible point.

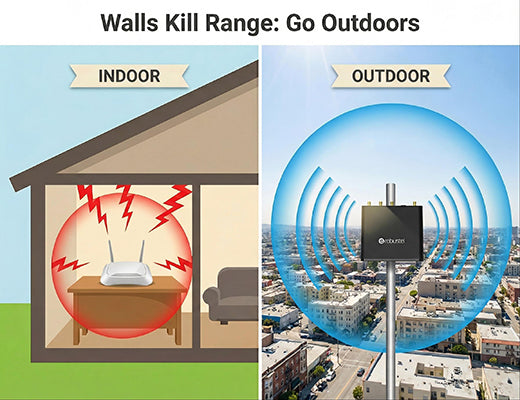

LoRa is a Line-of-Sight technology. It wants to "see" the sensors. When you move a LoRaWAN gateway from a desk inside a building to a mast on the roof, you change the physics of the link.

1. Eliminating Attenuation: By being outside, you remove the 10-20dB signal loss caused by the building's walls.
2. Clearing the Fresnel Zone: Height clears obstacles (trees, trucks). An outdoor LoRaWAN gateway at 20 meters height can communicate 10km. That same gateway inside at ground level might only reach 500 meters.

If you need to cover a city block or a farm, an outdoor LoRaWAN gateway is not optional; it is mandatory.

Industrial sites are hostile. It is not just rain; it is dust, UV, and vibration.

• UV Stability: Plastic indoor gateways become brittle and crack after 6 months of direct sunlight. The industrial LoRaWAN gateway uses powder-coated die-cast aluminum that resists UV degradation for decades.
• Lightning Protection: Outdoor gateways are lightning magnets. A professional LoRaWAN gateway includes a grounding lug on the chassis and built-in surge protection on the antenna and Ethernet ports to safely shunt energy to the ground.
• Thermal Dissipation: A sealed metal IP67 enclosure acts as a giant heatsink. It pulls heat away from the CPU and radio chips, allowing the LoRaWAN gateway to run in 70°C direct sun without internal fans that could fail.

Some installers try to save money by buying a cheap indoor gateway and putting it inside a waterproof NEMA box. This is usually a mistake.

• The Heat Trap: The plastic box acts as a greenhouse. The indoor LoRaWAN gateway cooks inside.
• Antenna Cable Loss: You have to run long coaxial cables from the box to the antennas outside. Every meter of cable kills signal (dB loss).
• Complexity: By the time you buy the box, the glands, the pigtails, and the mounting hardware, you have spent more than the cost of a purpose-built outdoor LoRaWAN gateway.

The choice of enclosure sends a message about the reliability of your network.

An indoor gateway says, "This is a pilot." An outdoor LoRaWAN gateway says, "This is infrastructure."

For any deployment where reliability and range are key, invest in an IP67-rated outdoor LoRaWAN gateway. It allows you to secure the high ground, survive the storm, and deliver the data your enterprise relies on.
