LoRaWAN Gateway Placement Guide: Optimizing Coverage and Signal Strength

Buying the best hardware is only half the battle; installing it correctly is the other half. A $500 LoRaWAN gateway mounted on a high tower will outperform a $2,000 unit hidden in a basement. This guide is the definitive playbook for gateway placement. We explain the physics of the "Fresnel Zone" (why Line of Sight isn't enough), the devastating impact of coaxial cable loss, and how to avoid interference from 4G towers. By following these four rules of placement, you can double the coverage radius of your network without buying extra hardware.

You have unboxed your industrial LoRaWAN gateway. You have your sensors ready. Now, you face the most critical decision of the entire project: Where do you put it?

Placement is not just about convenience; it is about physics.

Radio waves are fragile. They are absorbed by trees, blocked by concrete, and weakened by long cables. A poorly placed LoRaWAN gateway will struggle to hear a sensor 500 meters away. A well-placed one can hear a sensor 15 kilometers away.

This guide provides the engineering rules for positioning your LoRaWAN gateway to squeeze every decibel of performance out of your network.

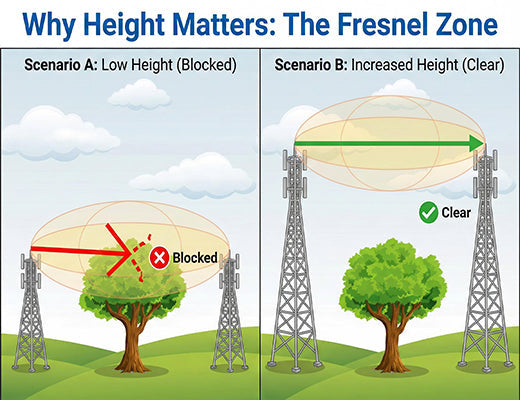

Most people understand "Line of Sight" (LoS)—if you can see it, you can connect to it. But radio waves don't travel in a laser beam; they travel in a football-shaped tunnel called the Fresnel Zone.

If the ground, a building, or a tree cuts into this football shape, the signal degrades, even if you have a visual line of sight.

• The Mistake: Mounting the LoRaWAN gateway on a 1-meter fence post. The ground eats the bottom half of the signal.
• The Fix: Mount the antenna as high as possible. For a 2km link, the antenna needs to be at least 5-10 meters high to keep the Fresnel Zone clear of the earth.
• The Strategy: Always aim for the roof, a water tower, or a dedicated mast. The higher the LoRaWAN gateway, the rounder the signal "football," and the stronger the connection.

The cable between your antenna and your LoRaWAN gateway is your enemy. Coaxial cable creates "Insertion Loss." A long, cheap cable can lose 50% of your signal before it even reaches the gateway.

• Bad Install: The LoRaWAN gateway is in the basement server room. A 30-meter RG58 cable runs up to the roof antenna. Result: Most of the signal is lost in the copper.
• Good Install: The LoRaWAN gateway is mounted on the roof mast (IP67 enclosure). A short 1-meter LMR400 cable connects to the antenna. Power and data run down to the server room via Ethernet (PoE).
• The Math: Never exceed 3 meters of antenna cable unless you are using ultra-expensive, thick LMR600 cable. Always move the LoRaWAN gateway closer to the antenna, not the other way around.

A LoRaWAN gateway is a sensitive listener. It tries to hear faint whispers from miles away. If you place it next to a loud "shouter," it goes deaf.

Common sources of noise:

• 4G/5G Cell Towers: They blast high power nearby.
• HVAC Motors: They create electromagnetic noise.
• Other Gateways: Transmitting close by.

The Separation Rule: If you must co-locate on a roof with other antennas, use Vertical Separation. Placing your LoRa antenna directly above or below an LTE antenna provides much better isolation than placing it horizontally next to it. Ideally, keep your LoRaWAN gateway antenna at least 3 meters away from any other transmitting radio source.

If you follow Rule #1 and put your gateway on the highest point, it becomes a lightning rod. You must protect the LoRaWAN gateway.

1. Surge Arrestor: Install a gas-discharge lightning arrestor between the antenna and the gateway.
2. Grounding: Run a thick (10 AWG or lower) copper wire from the arrestor and the gateway chassis to the building's earth ground.
3. The Goal: If lightning strikes near the tower, the energy follows the copper wire to the ground, bypassing the sensitive electronics inside your LoRaWAN gateway.

Your environment dictates your placement strategy.

Urban (The Canyon): In a city, you can't clear the Fresnel zone because of skyscrapers.

• Strategy: Rely on "Multipath Reflection." Place the LoRaWAN gateway on a medium-height roof. The signal will bounce off other buildings to reach sensors in alleyways. Density is more important than pure height here.

Rural (The Plains): In a field, you have Line of Sight, but the earth curvature blocks you eventually.

• Strategy: Pure altitude. Put the LoRaWAN gateway on top of the tallest grain silo or water tower. A single high point can cover 20,000 acres.

Do not treat installation as an afterthought. The physical placement of your LoRaWAN gateway determines the ROI of the entire network.

By elevating the antenna, shortening the coaxial cable, and grounding the system, you build a network that is resilient and wide-reaching. A well-placed industrial LoRaWAN gateway is an asset that pays dividends in data reliability for years to come.
