How an Industrial NAT Router Solves Your Biggest Factory Network Headaches
|
|
Time to read 8 min
Summary Introduction: The Growing Pains of Modern Factory Networks The Pain Points: Common Factory Network Challenges The Solution: The R2111 Industrial NAT Router Effortlessly Resolve Production Line IP Conflicts: Static NAT Mapping Reinvigorate Legacy Devices: Flexible NAT Policy Bridge Disparate Network Segments: Inter-domain Bidirectional NAT Product Introduction: The Robustel R2111 Industrial NAT Router Key Features of Router R2111 Hardware & Performance Connectivity Software & Management Physical & Environmental Detailed Application Example: Configuring R2111 for Cross-Segment Communication with NAT Network Topology and Requirement One-to-One NAT Mapping Goal NAT Router Configuration Steps Firewall Rule Configuration for One-to-One NAT LAN Port Multiple IP Address Addition Results Check: Verifying Robustel R2111 NAT Functionality Conclusion Frequently Asked Questions (FAQ)
Summary
If you're managing a factory network, you've likely faced the nightmare of IP address conflicts, the challenge of connecting legacy equipment, and the complexity of secure remote access.
This guide dives deep into how a modern Industrial NAT Router, specifically the Robustel R2111, acts as a smart network manager to solve these exact problems.
We'll explore real-world scenarios where static NAT and bidirectional NAT are game-changers, and provide a step-by-step configuration example. Discover how the right Industrial NAT Router can eliminate network bottlenecks, enhance security, and propel your factory towards smarter, more efficient operations.
Introduction: The Growing Pains of Modern Factory Networks
In today's push towards Industry 4.0, our factories are getting smarter, but our networks are getting exponentially more complex. I've spoken with countless OT managers and system integrators who are struggling with what should be simple tasks. They're trying to deploy identical production lines, but the equipment on each line comes with the same hard-coded IP address, leading to a network-wide conflict. Or they have a perfectly good, older PLC that works flawlessly but can't be configured with a gateway IP, effectively turning it into a data island.
Does this sound painfully familiar? These aren't minor inconveniences; they are major roadblocks that halt production, waste engineering hours, and prevent true digitalization. But what if there was a single device that could act as a "universal translator" and a "traffic cop" for your factory network? That's precisely the role of a powerful Industrial NAT Router like the Robustel R2111 . Let's break down how it solves these common headaches.
The Pain Points: Common Factory Network Challenges
Before we get to the solution, let's clearly define the problems that a robust Industrial NAT Router is built to solve.
Production Line IP Conflicts: When you deploy multiple identical machines or production cells, they often come from the manufacturer with the same static IP addresses. Trying to connect them to the same network creates a mess of conflicts, making communication impossible.
Legacy Device "Data Islands": Many older, yet perfectly functional, pieces of industrial equipment were never designed for modern networking and don't support gateway IP configuration. How do you bring them online without a costly replacement?
Complex Cross-Segment Communication: Your central MES server needs to pull data from a PLC on a different network segment, or a remote engineer needs to securely access an HMI for troubleshooting. Achieving this without compromising security is a major challenge.
Secure Remote Access: Providing external vendors or remote teams access to specific internal servers (like a SCADA system) without exposing your entire OT network is a critical security requirement.
The Solution: The R2111 Industrial NAT Router
The Robustel R2111 is more than just a router; it’s a core infrastructure component for smart, secure factory connectivity. Let's see how its advanced NAT features tackle each pain point.
Effortlessly Resolve Production Line IP Conflicts: Static NAT Mapping
This is a game-changer. The R2111's powerful static NAT (Network Address Translation) feature allows it to act as an intermediary. It can map a device's internal, conflicting private IP address to a unique, accessible address on your main factory network. This means you can have ten identical machines with the IP 192.168.1.10, and the R2111 will make them appear on your network as 10.10.1.10, 10.10.1.11, 10.10.1.12, and so on. The IP conflict issue is completely eliminated.
Reinvigorate Legacy Devices: Flexible NAT Policy
There's no need to decommission older equipment. The R2111's innovative NAT policy allows you to "invisibly" create network access paths for these devices. You can configure the Industrial NAT Router to intercept traffic intended for a specific virtual IP and forward it to the legacy device, effectively bringing it into the modern network without any changes to the device itself.
Bridge Disparate Network Segments: Inter-domain Bidirectional NAT
The R2111 offers Inter-domain Bidirectional NAT functionality, acting as a secure bridge between different, isolated production network segments within your factory. Whether it's an engineer's PC accessing an HMI or an MES server exchanging data with a PLC, the R2111 provides secure, efficient bidirectional communication channels, ensuring uninterrupted data flow without complex routing rules.
Product Introduction: The Robustel R2111 Industrial NAT Router

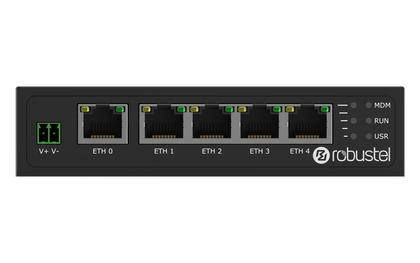

The Robustel R2111 is a robust industrial Ethernet router designed for diverse IoT network connectivity. It features five gigabit Ethernet ports, configurable for flexible LAN/WAN setups, and runs on Robustel's in-house RobustOS . This Linux-based operating system ensures high reliability and extensive technical support, making it ideal for mission-critical IoT and M2M applications. Built with a durable metal housing and a wide operating temperature range, the R2111 delivers consistent performance in demanding industrial environments.
It supports reliable wired connections with flexible WAN options and includes access to Robustel's free cloud management platform, RCMS . RCMS allows for remote monitoring, data usage tracking, and over-the-air updates for firmware and configurations, providing essential management capabilities. Furthermore, with a fully programmable Linux environment and SDK, the Robustel R2111 allows for custom application development, enhancing its adaptability for complex IoT ecosystems and ensuring stable performance even under heavy network loads.
Key Features of Router R2111
The R2111 is engineered for reliability and performance in industrial settings. Here's a simplified breakdown of its key specifications, highlighting its suitability for industrial secure network deployments and its comprehensive feature set:
Hardware & Performance
Processor: Dual-core, 880 MHz for powerful data processing.
Memory: 256 MB RAM and 32 MB Flash, with additional SDK memory.
Operating System: RobustOS, a secure and stable Linux-based platform.
Connectivity
Ethernet Ports: 5 x Gigabit Ethernet ports (10/100/1000 Mbps), flexibly configurable as LAN or WAN+LAN for versatile Robustel R2111 NAT setups.
WAN Features: Supports Static IP, DHCP Client, and ICMP probing.
LAN Features: Includes DHCP Server and IP Passthrough.
Software & Management
Network Protocols: Comprehensive support for standard protocols (TCP, UDP, DHCP, HTTP, DNS, SSH2, etc.).
Firewall: Robust features like DMZ, anti-DoS, IP/Domain/MAC filtering, Port Mapping, and Access Control for enhanced security of industrial network deployments .
Management: Accessible via Web GUI and CLI.
Apps & Cloud: Supports various applications (L2TP, PPTP, DMVPN, etc.) and integrates with RCMS for remote monitoring and updates.
Physical & Environmental
Design: Durable metal housing with IP30 ingress protection.
Dimensions & Weight: Compact design (30 x 82 x 127mm), 309g.
Installation: Desktop, wall, and 35 mm DIN rail mounting options.
Power: Wide input voltage range (12~36 V DC) with low power consumption.
Temperature: Wide operating range from -25°C to +70°C for harsh industrial environments.
This simplified overview showcases the Robustel R2111 as a powerful, flexible, and robust industrial router, perfectly suited for demanding applications requiring advanced industrial routing and secure NAT functionalities .
Detailed Application Example: Configuring R2111 for Cross-Segment Communication with NAT
This section details a concrete application example for cross-segment communication facilitated by an R2111 Industrial NAT Router . It involves a systematic approach to configuring and verifying the functionality of these settings to ensure seamless external access.
(Note: This section's structure is preserved for easy screenshot insertion.)
Network Topology and Requirement
The core requirement is to map two internal network servers to specific external IP addresses via an R2111 router, allowing external hosts to access them. This showcases Robustel R2111 Industrial NAT Secure Router providing dedicated external visibility.
Router Model: R2111
Firmware Version: 5.x.x
Server 1 IP: 192.168.105.100
Server 2 IP: 192.168.105.200
One-to-One NAT Mapping Goal
LAN IP 192.168.105.100 is mapped to WAN IP 172.16.100.100
LAN IP 192.168.105.200 is mapped to WAN IP 172.16.100.200
NAT Router Configuration Steps
Firewall Rule Configuration for One-to-One NAT
(Path: Network -> Firewall -> Custom Rules -> +)
Define the rules for traffic translation. Add each custom firewall rule precisely:
-
-t nat -I POSTROUTING -d 192.168.105.100/32 -j SNAT --to 192.168.105.1
Purpose: Outgoing traffic from Server 1 is source NAT'd to the router's LAN IP.
-
-I PREROUTING -t nat -d 172.16.100.100/32 -j DNAT --to-destination 192.168.105.100
Purpose: Incoming traffic to public IP 172.16.100.100 is destination NAT'd to Server 1.
-
-t nat -I POSTROUTING -d 192.168.105.200/32 -j SNAT --to 192.168.105.1
Purpose: Outgoing traffic from Server 2 is source NAT'd to the router's LAN IP.
-
-I PREROUTING -t nat -d 172.16.100.200/32 -j DNAT --to-destination 192.168.105.200
Purpose: Incoming traffic to public IP 172.16.100.200 is destination NAT'd to Server 2.
After adding rules, click "Submit", then "Save & Apply".
LAN Port Multiple IP Address Addition
(Path: Interface -> LAN -> Multiple IP -> Add)
Add public-facing IP aliases to the LAN interface:
IP-01: 172.16.100.100/32
IP-02: 172.16.100.200/32
Click "Submit", then "Save & Apply".
Results Check: Verifying Robustel R2111 NAT Functionality
To confirm Robustel R2111 NAT functionality, perform these verification steps:
-
External Client Access: From an external network, attempt to access services on Server 1 (192.168.105.100) using 172.16.100.100, and Server 2 (192.168.105.200) using 172.16.100.200.
Example: Openhttp://172.16.100.200in a web browser.
Service Verification: Ensure services are not just accessible, but fully functional (e.g., pages load, forms submit, applications behave as expected).
Connectivity Confirmation: Successful access and interaction confirm correct NAT rules and IP assignments on your Robustel R2111 , proving effective translation and traffic handling.
If issues arise, re-check configurations or review R2111 system logs (System -> Debug).
Conclusion
The challenges of modern industrial networking—from IP conflicts and legacy devices to secure cross-segment communication—require more than just a standard router. They require an intelligent network manager. The Robustel R2111 Industrial NAT Router leverages precise NAT address translation and powerful firewall policies to solve these critical problems. It provides a secure, efficient, and cost-effective foundation for building interconnected and intelligent factory networks, making it an essential component for any Industry 4.0 initiative.
Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of One-to-One NAT on an Industrial NAT Router?
A1: Its primary purpose is to enable dedicated external access to a specific internal server. It maps a private internal IP directly to a unique public-facing IP, allowing external hosts to initiate connections to that resource without exposing the entire private network.
Q2: Does the R2111 support VPN capabilities?
A2: Yes, the Robustel R2111 supports various VPN capabilities through its App Center (OpenVPN, L2TP, PPTP, DMVPN, VRRP, Wireguard). RobustOS supports these VPN types via downloadable Apps, offering secure tunneling for your Industrial NAT Router.
Q3: What is RobustOS, and why is it important for the R2111?
A3: RobustOS is the proprietary operating system for Robustel routers. It provides a professional GUI and crucial connection stability for critical IoT applications. Its maturity and features ensure the R2111's reliable performance, ease of Robustel R2111's NAT configuration, and robust security.
Q4: How does RCMS simplify managing multiple R2111 routers?
A4: RCMS (Robustel's Cloud Management System) is a free platform for managing an estate of routers. It offers location overview, data usage/signal strength monitoring, and crucial over-the-air updates for firmware, configuration, and Apps, significantly reducing operational overhead for large-scale deployments.
