Detailed explanation of IOT industrial interfaces: serial interface, digital input/output (DI/DO), and analog input/output

Have you ever wondered how a vending machine knows it's out of a drink and automatically tells the operator to restock it? Or how a massive factory knows one of its machines is about to overheat and needs maintenance?

There’s no magic behind it, just a very basic way that machines communicate. I like to think of it as giving machines "eyes," "ears," and a "mouth." In the tech world, these "senses" are called industrial interfaces. They might sound complicated, but the core idea is incredibly simple. This article will break it all down for you, no engineering degree required!

Think about your smart home system. Your smart speaker (the brain) needs to know if a door is closed (a sensor), needs to adjust the AC temperature (a controller), and needs to play music (an actuator). An automation system in a factory works the same way, just with tougher equipment and in harsher environments.

Industrial interfaces are the physical ports that connect the factory "brain" (usually a small computer called a PLC or an industrial router) to its various "senses." Let's break them down into three super simple types.

This is the simplest sense, just like a light switch. It only cares about two things: ON or OFF.

• Digital Input (DI):This is the machine's "eye" or "sense of touch," used to answer a "Yes/No" question.
  • Is the door closed? (Yes/No)
  • Is there a box on the conveyor belt? (Yes/No)
  • Has the emergency stop button been pushed? (Yes/No)
• Digital Output (DO):This is the machine's "hand," used to perform an "On/Off" action.
  • Turn the indicator light ON.
  • Make the alarm sound.
  • Start the pump motor.

Simply put, a digital interface handles all the "black or white" signals.

If a digital interface is a light switch, an analog interface is a "dimmer switch." It deals with a specific value within a range, not just On or Off.

• Analog Input (AI):This is the sense a machine uses to "measure."
  • How hot is the oven? (e.g., 350°F)
  • How full is the water tank? (e.g., 82%)
  • How much pressure is in the pipe? (e.g., 5.5 Bar)
• Analog Output (AO):This is the hand a machine uses for "precise control."
  • Open the valve by 30%.
  • Run the fan at 75% power.

So, anytime you need to know "how much" or need to make a fine adjustment, you need an analog interface.

Now, some devices are smarter and can have a more complex "conversation" instead of just giving a single value. That's what a serial interface is for.

Think of it like two people talking on the phone, able to exchange rich information, not just a nod or a shake of the head. For example, a smart power meter can use a serial interface to tell the main system:

• What is the current voltage?
• What is the current amperage?
• What is the total energy used this month?
• Is my self-check status okay?

All of that information is "spoken" over a single connection. That's the power of serial—it allows smart devices to truly exchange information.

Okay, so we know machines have these three different "senses." But how do we see what a water pump, located miles away, is sensing in our office?

This is where an industrial router with io like the Robustel R1520 becomes a hero. It acts as a "universal translator" and a "signal tower."

It can understand all these different interface languages at the same time:

• It can read the "On/Off" signals from Digital interfaces.
• It can understand the "specific values" from Analog interfaces.
• It can listen to the "complex conversations" from Serial interfaces.

Then, it packages all this information and sends it over a 4G or 5G cellular network to your computer or a mobile app, anywhere in the world.

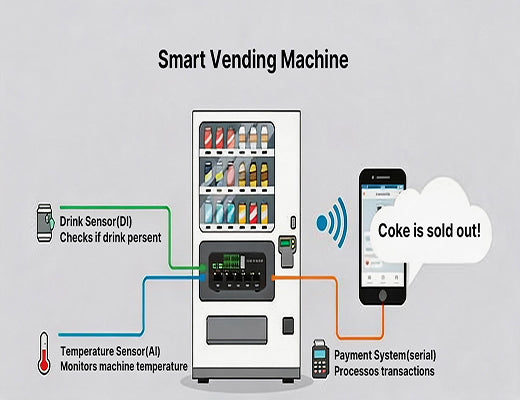

Let's go back to that vending machine example:

1. A Robustel R1520 router is installed in the machine.
2. The drink dispenser's sensor is connected to the router's Digital Input (DI). When a row of drinks is empty, the sensor's status changes from "Present" to "Empty."
3. The compressor's temperature sensor is connected to the Analog Input (AI) to ensure it's cooling correctly.
4. The payment system "talks" to the router via a Serial interface to report sales data.

The router gathers all this info. As soon as the DI senses an "Empty" signal, it immediately sends a message over the network to your phone that says, "Aisle 1 needs a restock." Simple, right? This is the core idea behind connecting industrial equipment to make it smart.
