How a 5G Gateway Works: From Cell Tower to Local Network

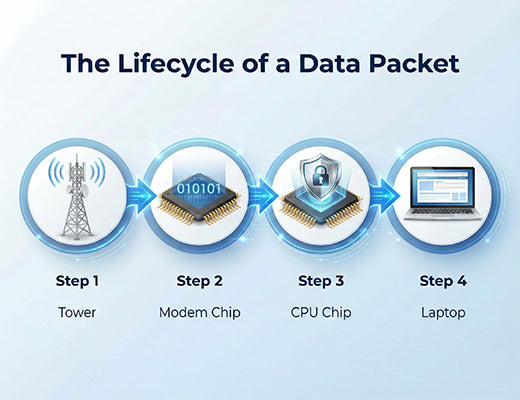

We click a link, and a webpage loads. When using a cable, this makes sense. But when using 5G, the data travels through the air. How does an invisible wave become a usable internet connection? This article dissects the inner workings of a 5G Gateway. We trace the journey of a data packet through four critical stages: Reception (how MIMO antennas catch the signal), Demodulation (how the modem chip turns waves into bits), Processing (how the CPU manages security and routing), and Distribution (how data reaches your laptop via Ethernet or Wi-Fi).

To the average user, wireless internet feels like magic. You turn on a box, and the internet appears.

But inside that industrial metal enclosure, a complex symphony of physics and mathematics is happening at the speed of light. A 5G Gateway is a miniature telecommunications station. It has to catch a faint radio signal from miles away, clean it up, unlock it, and convert it into a format your computer understands—all in less than 10 milliseconds.

Here is the step-by-step journey of a data packet, from the Cell Tower to your Local Network.

The process begins with the Radio Frequency (RF) signal. The 5G tower blasts data using high-frequency waves (Sub-6GHz or mmWave).

The Challenge: Radio signals bounce off buildings, trees, and trucks. By the time they reach your gateway, they are scattered and weak.

The Solution: MIMO (Multiple Input, Multiple Output).A modern 5G Gateway doesn't just have one antenna; it typically has four (4x4 MIMO).

• Spatial Multiplexing: The tower sends four different streams of data at the same time on the same frequency.
• Reassembly: The gateway's four antennas catch these slightly different signals. The RF Front End (a specialized circuit) filters out noise and amplifies the useful signal.

Think of it like a conversation in a noisy room. If you listen with one ear, it's hard. If you have four ears listening from different angles, you can piece together the message perfectly.

Now we have a clean Analog wave. But computers don't speak Analog; they speak Digital (1s and 0s). This is the job of the 5G Modem (the internal cellular module).

• Authentication: First, the modem checks the SIM Card. The SIM contains a secret key (IMSI). The modem sends a code to the tower: "I am User X, here is my key." The tower verifies it and opens the data pipe.
• Demodulation (QAM): The modem analyzes the shape of the wave. 5G uses a technique called 256-QAM. It packs 8 bits of data into every single wave cycle.
• Result: The modem outputs a stream of raw digital IP packets.

We now have digital data, but it is "Raw Internet" traffic. You cannot send this directly to a laptop yet. It needs to be routed and secured. This is where the 5G Gateway acts like a computer.

• The OS: An embedded Operating System (usually Linux-based, like RobustOS) picks up the data.
• NAT (Network Address Translation): The carrier gives the gateway one Public IP address. The gateway's CPU has to share this among your 50 local devices. It labels every packet: "This part of the video goes to the iPad," "This sensor reading goes to the Server."
• Security: The firewall checks the packets. "Is this a hacker trying to get in? Block it." "Is this a valid response? Let it through."

Finally, the clean, sorted data needs to leave the gateway and enter your device. The CPU sends the data to the Physical Interfaces:

• Ethernet (Wired): The most reliable method. The data travels over copper wires (LAN port) to a switch or a machine.
• Wi-Fi 6 (Wireless): The gateway converts the data back into radio waves (this time on the 2.4GHz or 5GHz Wi-Fi band) to beam it to your phone or laptop.

The End Result: You see the webpage load. The entire process—from the tower emitting the wave to the pixel appearing on your screen—took roughly 10-20 milliseconds.

One specific 5G technology makes this process even more efficient: Beamforming.

In the 4G era, towers broadcast signals in a circle (like a lightbulb). Energy was wasted in directions where no one was using it. In the 5G era, the tower and the 5G Gateway talk to each other. The tower focuses the signal into a tight "beam" aimed directly at your gateway's location.

This is why aiming your gateway's antennas is less critical than before, but placing the gateway near a window is still vital—it helps the tower "see" you to form that beam.

Understanding how a 5G Gateway works helps you appreciate why "Industrial Grade" matters.

• If the RF Front End is cheap, it can't filter noise in a factory.
• If the CPU is weak, it chokes on the NAT calculations, slowing down your Gigabit connection.
• If the Antennas are poorly designed, MIMO fails.

A high-quality gateway is a precision instrument designed to maintain this complex chain of communication without dropping a single bit, 24/7/365.
