Your Guide to EG5120 Private 5G APN Configuration

Picture this: you're on-site at a newly commissioned factory. The air hums with the promise of automation, but the pressure is on. You've got this powerful Robustel EG5120 in your hands—a beast of a machine with a quad-core ARM processor and that beautiful, open Debian-based RobustOS Pro. But let's be honest, until it's securely connected to the private 5G network, it’s just a paperweight holding down the project timeline.

This is where the real work begins. We're not just connecting to the internet; we're plugging into the secure, isolated nervous system of a modern industrial operation. The key to that kingdom? A tiny string of text called the APN (Access Point Name). In my years of deploying IIoT solutions, I've seen more projects stalled by a simple APN misconfiguration than I care to admit. It's the digital handshake that grants you access, and getting it wrong is like showing up to a secure facility with the wrong ID.

So, let's walk through this together. This guide is designed to get you from unboxing to securely connected, making sure that first handshake is firm and successful.

Before we jump into the GUI, let’s quickly establish why this one setting is a cornerstone of your entire project. An APN is essentially the gateway that directs your device's traffic from the carrier's network to the correct destination. The distinction between public and private is critical.

The real 'aha!' moment for many engineers is realizing that a correctly configured EG5120 private 5G APN isn't just a network setting; it's the first and most important layer of your OT cybersecurity strategy. A private APN offers three non-negotiable advantages:

• Ironclad Security: All traffic is contained within a private tunnel from the gateway to your corporate network. It never touches the public internet, dramatically reducing the attack surface for your critical OT assets.
• Total Control: You have control over the IP addressing and security policies. It's your network, from the edge to the core.
• Optimized Performance: Private networks can be engineered for lower latency and higher reliability than congested public networks, which is crucial for real-time control applications.

Do this first. It’ll take 60 seconds and could save you an hour of troubleshooting.

1. A Provisioned SIM Card: Make sure it's activated and specifically assigned to your private 5G network plan.
2. The APN Details: Have the exact APN string, username, and password (if required) from your network provider ready. Don't guess.
3. Local Access: You'll need your laptop connected to one of the EG5120's LAN ports for this initial setup.

Here we go. Let's get this gateway talking to your private network.

1. Access the Web GUI: Connect your PC to a LAN port on the EG5120. Fire up a browser and go to 192.168.0.1. Log in.
2. Navigate to the Heart of Connectivity: In the main menu, go to Network > Interface > Link Manager. This is your command center for all network connections.
3. Select Your Modem: You'll see your cellular modem listed, probably as  MDM1 . Click the pencil icon to edit its settings.
4. Enter the "Secret Handshake": This is the most important part. On the settings page, find the APN section.

• Change the profile mode to Manual.
• In the APN field, type the exact name from your provider. Every character matters.
• If you were given a username and password, enter them now. Otherwise, leave these fields blank.

5. Save and Apply: Click Submit at the bottom of the page. You'll see a prompt at the top to apply the changes. Click Apply Changes. The modem will now re-initialize its connection with the new settings.
6. Verify Your Success: Give it a minute, then navigate to  Status > Network . Look for the modem interface. You should see "Connected" and a valid IP address from your private network. That's the sight of victory.

You've now successfully configured your EG5120 private 5G APN and built a secure bridge for your industrial data.

The steps above will get you connected. These tips will ensure your connection is robust, scalable, and easy to manage—this is what isn't always in the manual.

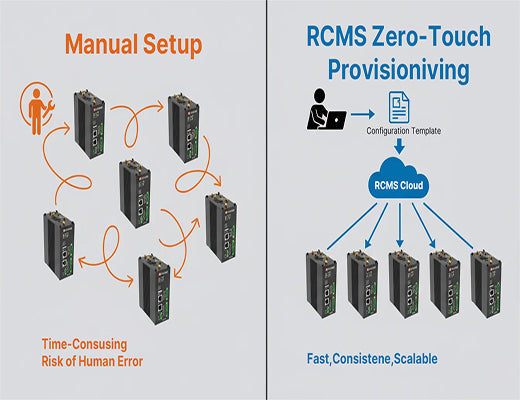

• Stop Thinking Device, Start Thinking Fleet: The GUI is great for one device. But for ten, fifty, or a thousand? That's a logistical nightmare. The real pro move is using the Robustel Cloud Manager Service (RCMS). You build one perfect configuration template—with your EG5120 private 5G APN settings—and use Zero-Touch Provisioning to deploy it to every device automatically. It’s the difference between being a technician and an architect.
• Embrace Your Inner Linux Guru: Don't forget, under the hood, RobustOS Pro is Debian 11. This is a massive advantage. You can SSH into the gateway and use standard Linux tools like

ping and traceroute for advanced troubleshooting, or even write scripts to automate complex network checks. It's an open platform, so use it!

• Redundancy Isn't Optional: The EG5120 has dual SIM slots for a reason. I always push my clients to use a second SIM, even on a private network, ideally from a different carrier for backup. In the industrial world, the question isn't

if a network will have an issue, but when. Failover is your get-out-of-jail-free card.

Successfully configuring your EG5120 private 5G APN is your first major win in any IIoT project. It establishes the secure, reliable foundation upon which every other application—from predictive maintenance to remote control—is built. What this process truly highlights is the philosophy behind the EG5120: it's a powerful, industrial-grade tool that is also fundamentally open and flexible. Whether you're using the intuitive GUI for a quick setup or leveraging RCMS and the Debian CLI for massive, automated deployments, the platform scales with your needs. Now that you're connected, the real innovation can begin.
