A Practical Guide to Your EG5120 Cellular Configuration

Let's paint a picture I've seen a dozen times. You're on-site at a newly upgraded factory. A fleet of AGVs sits ready, a new production line is waiting, and the key to bringing it all online is the Robustel EG5120 gateway you just unboxed. The potential is massive, but right now, it's just an isolated box. The first, most critical step is breathing life into it by connecting it to the world.

This is where the cellular connection comes in. It’s the digital lifeline for your entire operation. But how do you get it running? Let's be clear: the EG5120 cellular configuration is your gateway's rite of passage, and getting it right is non-negotiable. Forget the jargon for a moment. This guide is my direct-from-the-field advice to you. We'll walk through the simple steps to establish a rock-solid connection, transforming your EG5120 from a powerful paperweight into the intelligent heart of your IoT solution.

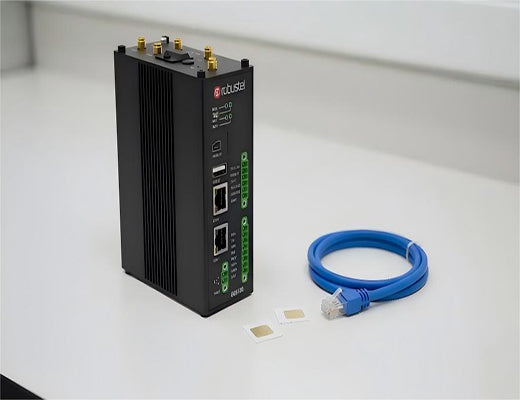

Before we touch the software, let's get the physical setup perfect. I can't tell you how many support calls could have been avoided with this simple pre-flight check.

• Your Robustel EG5120 Gateway: Unboxed and powered on. This beast is your platform for true edge computing, running on a powerful quad-core ARM CPU.
• One or Two Active SIM Cards: And I emphasize active. Make sure they're provisioned for data. For any serious industrial deployment, using two SIMs from different carriers isn't a luxury; it's your first line of defense against downtime. In the world of IIoT, one is none, and two is one.
• An Ethernet Cable: Your temporary best friend for connecting your laptop directly to the EG5120's LAN port.
• Your Carrier's APN Details: This is the "secret handshake" your gateway needs to join the carrier's network. Have the APN, username, and password (if required) ready.

The most direct way to get your gateway online is through its powerful web interface. The EG5120 runs on RobustOS Pro, which is our secure industrial OS built on Debian 11. If you've ever worked with a Raspberry Pi, you'll feel right at home in this environment.

1. Plug your computer into a LAN port on the EG5120.
2. Open your favorite web browser and navigate to the gateway's default IP address (usually 192.168.0.1).
3. Log in with the default credentials. Welcome to the command center.

The real 'aha!' moment for many engineers is discovering how intuitive our interface is. No digging through endless menus.

1. On the left-hand navigation menu, click on Interface.
2. In the submenu that appears, click Cellular. You're exactly where you need to be.

The Access Point Name (APN) is everything. It’s the single most common point of failure in any new cellular deployment, usually because of a simple typo. Let’s get it right the first time.

• Choose Your SIM: You’ll see tabs for SIM1 and SIM2. Select the one you're configuring.
• Enter the Details:Fill in the information from your carrier.
  • APN: Type this in carefully. One wrong character and the connection will fail.
  • Username/Password: Most carriers leave these blank now, but if yours requires them, enter them here.
• Commit the Changes: Click Save & Apply. Give the gateway a minute or two. You should see the signal strength LEDs light up and the status on the main dashboard change to "Connected." That's the feeling of success.

In the industrial world, downtime isn't an inconvenience; it's a direct hit to the bottom line, costing some industries over $2 million per hour. This is why a single point of failure on your network is unacceptable. Dual SIM failover, a core feature of RobustOS, is your insurance policy. Here’s how it works:

• Intelligent Triggers:It's smarter than just waiting for a complete connection drop. You can set proactive triggers for the gateway to switch to the backup SIM. My personal favorites are:
  • Ping Failure: If the gateway can't reach a reliable server like 8.8.8.8, it intelligently switches, assuming the connection is degraded.
  • Weak Signal: You can define a signal quality threshold. If the primary network gets too weak, the gateway switches before you start losing data packets.
• Automatic Failback: Once the primary network is stable again, the gateway automatically switches back to it, ensuring you’re always on the most cost-effective or highest-performance link.

This isn't just a feature; it's a business continuity strategy built right into your hardware.

Configuring one EG5120 is simple. But what about deploying a hundred across the country? Manually configuring each one is a recipe for errors and sky-high operational costs. This is where you graduate to using the Robustel Cloud Manager Service (RCMS).

RCMS is our centralized command center for your entire fleet of devices. The game-changer here is Zero-Touch Provisioning. You create a configuration template in RCMS—including your perfected EG5120 cellular configuration—and every new gateway that powers on in the field automatically pulls that configuration from the cloud. It transforms your deployment process from a costly, manual effort into a streamlined, scalable operation, dramatically lowering your Total Cost of Ownership (TCO).

Your EG5120 is more than just hardware; it's the foundation of your IoT strategy. By following this guide, you've mastered the critical first step: establishing a robust, reliable cellular connection. From the basic APN setup in the Web GUI to ensuring resilience with dual SIM failover and achieving scalable fleet management with RCMS, you now have the blueprint for success. Power it on, get it connected, and start unlocking the true potential of your edge computing solution.
