Edge Devices in Smart Cities: Traffic, Lighting, and Safety

A "Smart City" is not just about installing cameras everywhere; it is about making sense of the data those cameras generate. If a city tries to stream 10,000 HD video feeds to a central cloud, the network will crash. The solution is to move the intelligence to the street level. This guide explores the role of the edge device in urban infrastructure. We look at three critical use cases: Adaptive Traffic Control (eliminating jams), Intelligent Lighting (saving energy), and Public Safety (detecting threats instantly). By deploying computing power on the "Smart Pole," cities can become efficient, safe, and livable without bankrupting their data budget.

By 2050, 68% of the world's population will live in urban areas. Cities are growing, but the roads are not. The only way to manage this density is through technology.

However, the "Cloud First" model fails in a city environment. You cannot run a real-time traffic system if the camera has to send video to a server 500 miles away to decide if a light should turn red. The latency is too high, and the bandwidth cost is astronomical.

To build a truly responsive city, you need to process data where it happens: on the street corner. This is the domain of the edge device. Embedded inside traffic cabinets and street poles, these rugged computers are the nervous system of the modern metropolis.

Old traffic lights run on timers. They turn red even if the road is empty. Smart traffic lights run on vision.

The Edge Architecture: An edge device equipped with an AI accelerator connects to the intersection cameras. It does not stream the video; it analyzes it.

• Congestion Control: The device counts the cars waiting in each lane. If Northbound is packed and Eastbound is empty, it extends the green light for Northbound automatically.

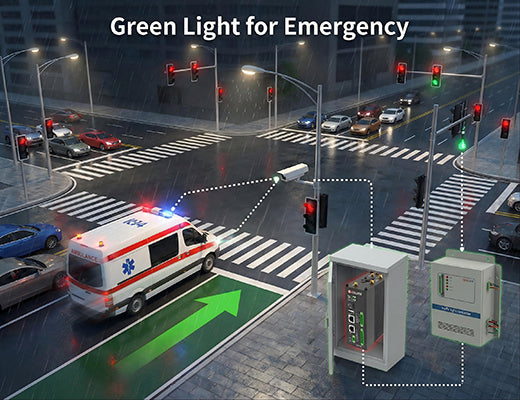

• Emergency Priority: The device listens for the specific siren frequency or detects the visual pattern of an ambulance. It immediately turns all cross-traffic lights red to give the ambulance a clear path.

This decision happens in milliseconds on the edge device, saving lives by reducing response times.

Street lighting accounts for up to 40% of a city's energy bill. Most cities burn electricity lighting empty streets all night.

The Solution: Connect motion sensors to the edge device in the lighting cabinet.

• Idle State: Lights are dimmed to 20% brightness (saving power).
• Active State: A pedestrian or car is detected. The edge device commands the nearest 5 lights to brighten to 100% instantly. As the person walks, the "bubble of light" follows them.

This "Follow-Me" lighting requires zero internet connection. The logic is handled locally by the edge device, ensuring safety while slashing carbon emissions.

Security is a balancing act. Citizens want safety, but they fear the "Surveillance State." Cloud-based systems that store years of footage are a privacy nightmare.

Edge AI solves this paradox. The edge device processes video streams in real-time to detect specific threats—like a gunshot, a fight, or a person falling onto train tracks.

• Action: When a threat is detected, the device sends an alert to the police: "Incident at 5th Avenue."
• Privacy: It discards the video of innocent passersby. Or, it automatically blurs faces before uploading the clip for evidence.

By keeping the data processing on the local edge device, the city protects public safety without hoarding massive databases of personal movements.

How do you deploy all this tech without cluttering the sidewalks? You use existing vertical real estate: the Street Pole.

The modern "Smart Pole" is a single unified tower containing:

• 5G Small Cell (for connectivity).
• LED Light (for visibility).
• Cameras & Air Quality Sensors (for data).
• The Edge Device: The brain that connects them all.

An industrial edge device (gateway) sits inside the base of the pole. It provides power (PoE) to the cameras, reads the sensors, processes the data, and uses the 5G backhaul to send insights to City Hall. It transforms a piece of metal into a digital node.

Technology should serve the citizens, not the other way around. By deploying intelligence at the edge, cities become more than just "connected"—they become responsive.

An edge device on a street corner doesn't just route data; it clears traffic for a rushing ambulance, it lights the way for a lone walker, and it saves tax dollars on energy. It is the invisible infrastructure that makes the chaotic urban environment livable.
