Hardware Specs 101: Choosing the Right CPU/RAM for Edge Devices

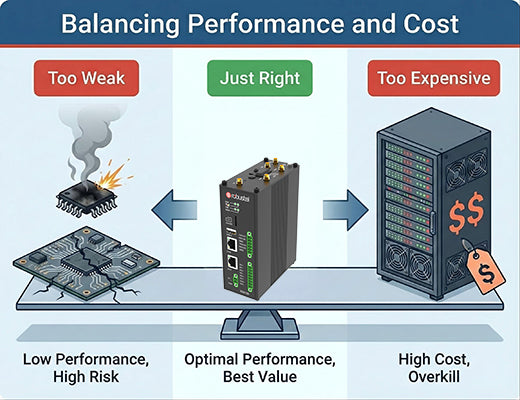

Selecting the hardware for an IoT project is a "Goldilocks" problem. If the specs are too low, the device crashes. If the specs are too high, you destroy your profit margin. This guide provides a technical framework for sizing an edge device. We compare the two dominant CPU architectures (ARM vs. x86) and explain why ARM is the standard for industrial IoT. We analyze RAM requirements for modern workloads like Docker containers and AI inference, and we discuss the critical importance of storage durability (Flash wear) in remote deployments.

Software eats the world, but hardware runs the software.

When selecting an edge device for a massive deployment, the stakes are high. If you under-spec the CPU, your fleet will freeze up when data traffic spikes. If you over-spec the RAM, you might waste $50 per unit—multiplied by 10,000 units, that is a $500,000 mistake.

How do you find the balance?

You must match the "Engine" (CPU/RAM) to the "Load" (Application). This guide breaks down the technical specifications you need to look for on the datasheet.

The first decision is the processor architecture.

ARM (Advanced RISC Machine):

This is the dominant architecture for mobile and IoT.

• Pros: Extremely power efficient (runs on batteries/solar), low heat (no fans needed), lower cost.
• Target Workload: Gateways, Routers, Sensors, Lightweight Logic.
• Examples: Robustel Gateways (Cortex-A7, Cortex-A53).

x86 (Intel/AMD):

This is the architecture of your laptop and data center servers.

• Pros: Massive raw power, compatibility with legacy Windows software.
• Cons: High power consumption (requires mains power), runs hot, expensive.
• Target Workload: Video Servers, Heavy AI Training, "Thick Edge."

The Verdict: For a typical industrial edge device, ARM is the correct choice. It provides ample power for Linux and Python without the heat and power penalty of x86.

Memory is the most common bottleneck in modern IoT.

Ten years ago, a gateway ran a simple C program and needed 64MB of RAM. Today, we run Python, Java, and Docker containers.

Sizing Guide:

• Level 1: Telemetry (256MB - 512MB):

If your edge device simply collects Modbus data, wraps it in MQTT, and sends it to the cloud, 256MB is sufficient.

• Level 2: Edge Computing (512MB - 1GB):

If you are running local logic (Node-RED) or performing data aggregation/filtering, you need at least 512MB.

• Level 3: Containerization (1GB - 4GB):

If you plan to use Docker or K3s (Kubernetes), 1GB is the absolute minimum. Containers carry overhead.

• Level 4: AI/Video (4GB+):

Video buffering and neural network inference eat RAM for breakfast. Don't go below 4GB.

For an edge device, storage isn't just about "How many GB?" It is about "How many writes?"

Flash memory wears out. If your application logs data to the disk every second, a cheap consumer-grade SD card will die in 6 months.

Recommendations:

• Avoid: Consumer SD/microSD cards for the OS. They are points of failure.
• Prefer: Onboard eMMC (Embedded Multi-Media Card). This is soldered to the board, vibration-proof, and designed for industrial write cycles.
• Capacity: For a Linux OS + Docker, 8GB is the comfortable minimum. If you need to store video locally, look for an edge device with an expandable SSD slot (NVMe/SATA).

A standard CPU is great for logic ("If X then Y"), but terrible for matrix math (AI).

If your project involves Computer Vision (face detection, license plate reading), looking at CPU speed is useless. You need an NPU (Neural Processing Unit).

An edge device with a specialized NPU can perform AI tasks 50x faster than a CPU. If AI is in your roadmap, ensure your hardware has this dedicated silicon.

Here is a quick reference for matching specs to your project.

Hardware is permanent; software is fluid.

Once you deploy an edge device on a pole in the middle of nowhere, you cannot upgrade the RAM.

Always follow the "30% Headroom Rule". Calculate the specs you need today, and add 30%. This buffer ensures that when you want to deploy a security patch or a new feature two years from now, your hardware won't be obsolete.
