DIY a DI SMS Alarm for Instant Machine Downtime Alerts

In the relentless pursuit of manufacturing efficiency, every single minute counts. Yet, here's a harsh reality I've seen play out too many times: a critical machine on the line stops, and nobody notices for thirty minutes, maybe more. Let's be blunt: while the machine is silent, the sound of you losing money is deafening.

Picture this scene: at 3:00 PM, a key CNC machine overloads and triggers a protective shutdown. Its status light flips from green to red. But in a noisy workshop, that visual cue is easily missed. It isn't until 3:30 PM, during a routine walkthrough, that the shift supervisor spots the problem. In those 30 "silent" minutes, you've lost more than just output. You've lost production rhythm, wasted labor costs, and risked delaying a customer's order.

So, how do you make these "silent" assets shout for help the second they're in trouble? The answer is to build an automated alert system that's always on and reacts in an instant. Today, I’m going to show you how to easily DIY your production line’s own guardian angel using a Robustel R1520 industrial IoT gateway.

Before we start building, let's get to know our essential tools. This isn't complex, I promise.

• Digital Input (DI): Think of this as the "eyes" of our guardian angel. A DI port senses a change in an external device's state—it's essentially a switch. For example, a machine outputs an "ON" signal when it's running and an "OFF" signal when it faults. The gateway's DI port is built to capture that change instantly. You can learn more about the fundamentals on websites like AllAboutCircuits.
• Robustel R1520 Industrial LTE Gateway: This is the "brain and mouth" of the operation. It's a communication terminal designed specifically for harsh industrial environments. Its built-in 4G LTE cellular connection ensures it's always online, and its powerful, easy-to-use software can execute a pre-set action—like sending a DI SMS alarm—based on the status change it sees on the DI port.

First, we need to connect the gateway to the machine so it can "see" its status.

1. Find the Signal Source: Locate the signal output terminals on your critical machine. Most modern equipment (PLCs, VFDs, CNC machines) comes equipped with a "fault status" relay output. When the machine faults, this relay either closes or opens a circuit.
2. Connect the Wires: Using a simple two-core cable, connect the two terminals of the relay output to the Digital Input (DI) port and a Ground (GND) port on the R1520 gateway. Insider Tip: Double-check if your relay is Normally Open (NO) or Normally Closed (NC) during a fault. This will determine the logic you set in the next step. This simple connection gives the R1520 the ability to feel the machine's "heartbeat."

Now, let's program the brain. Log into the R1520's user-friendly web interface using your browser.

1. Create a Trigger Rule: Navigate to the "Linkage" or "Event Center" module. Here, you'll create a new rule. The logic is incredibly straightforward:

• IF: The state of DI 1 changes to High (or "Low," depending on your relay's logic).

• THEN: Execute the action Send SMS.

2. Edit the Alert Content: In the action settings, enter the phone numbers that need to receive the alert (you can add multiple, like the production manager and the maintenance engineer). Then, customize the SMS content to be crystal clear. For example: URGENT ALERT: CNC Machine #3 in Workshop A has faulted. Please respond immediately. A well-written message is crucial for an effective DI SMS alarm.

After saving the configuration, it's time for a test run. Manually trigger the machine's fault state (many have a test button) and check your phone. Within seconds, you should receive the exact SMS you configured.

Success? Congratulations, your production line guardian is officially on duty!

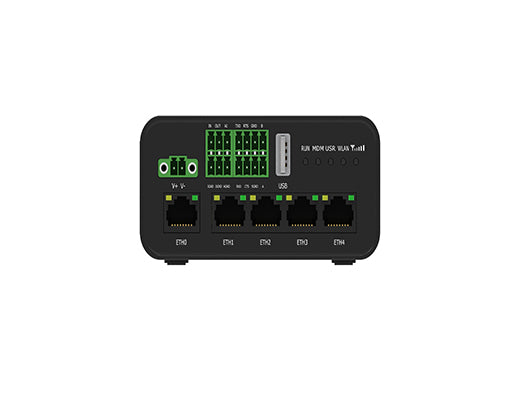

An SMS alert is just the beginning. The R1520 is a versatile IIoT gateway, equipped with serial ports (RS232/RS485), Ethernet, and the ability to run applications. This means your investment has a future. Later, you can easily upgrade to use the same device for collecting PLC data, enabling

remote monitoring, or connecting to a cloud platform like RCMS.

Implementing this simple DI SMS alarm is a revolutionary shift. You move your entire maintenance model from a "find it later, react passively" approach to an "instant awareness, act proactively" strategy.

• Slash Downtime: You shrink the fault detection window from minutes or hours to mere seconds, buying your team invaluable time to make repairs.
• Boost OEE (Overall Equipment Effectiveness): Every minute of downtime you eliminate directly translates into a higher OEE score, a critical manufacturing KPI.
• Optimize Resources: Maintenance engineers can respond to precise, real-time alerts instead of spending hours on routine patrols, allowing them to focus on higher-value tasks.
• Empower Management: Managers gain a "sixth sense" about the production line. No matter where they are, they get immediate visibility into critical issues, enabling better decision-making.

Don't let silent downtime quietly eat away at your profits. With one simple DIY project and a professional Robustel R1520 industrial gateway, you can build a rock-solid defense for your production line. This isn't just a tech upgrade; it's a smart investment in your efficiency, profitability, and operational excellence.

Ready to give your team the tireless guardian angel it deserves?
