How to configure 5G band locking on a 5G router

In my world of industrial IoT, the arrival of 5G has been a game-changer, promising ultra-low latency and massive bandwidth for everything from autonomous robots to real-time video analytics. But here's the catch that many people miss: "5G" isn't one single signal. It's a collection of different radio frequencies, or "bands," each with unique characteristics. Some bands offer incredible speed but shorter range, while others provide broader coverage with less throughput. This complexity is where the promise of 5G can meet the harsh reality of an industrial environment.

Your standard-issue router will try to automatically pick the "best" band, usually based on simple signal strength. But what if the strongest signal is also the most congested? What if it constantly flips between two bands, causing connection drops? That's where a professional-grade tool becomes essential.

The Robustel R5020 Lite is an industrial 5G router designed specifically for these mission-critical applications. Running on the hardened, penetration-tested RobustOS, it provides the advanced controls needed to tame 5G's complexity. This guide is about leveraging those controls. We're going to show you how to stop letting the router guess and start telling it exactly which band to use, ensuring your deployment is not just connected, but predictably stable and optimized for performance.

Modern cellular routers are designed to be plug-and-play. They automatically scan all available frequency bands from a carrier and latch onto the one that appears to be the strongest. In many situations, this works just fine. But industrial environments are rarely "normal."

I've personally troubleshooted deployments where the automatic logic caused major headaches. Here are a few classic examples:

• The Congested "Strong" Signal: A router might switch to a 5G band with a very high signal strength (RSSI) but is also used by hundreds of other public devices nearby. The result? The connection feels slow and laggy because of high interference and network congestion.

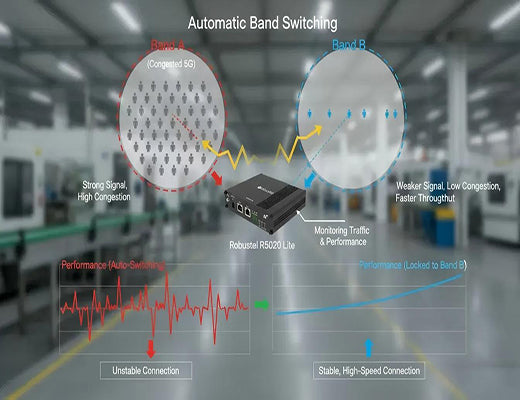

• The "Flapping" Connection: In some locations, a router might be positioned between two cell towers broadcasting on different bands. It might constantly switch back and forth between them, trying to find the "best" signal, causing intermittent connection drops that are fatal for real-time control applications.
• Ignoring a High-Performance Band: A carrier might deploy a newer, faster, and less-congested 5G band (like n77 or n78) that has slightly lower signal strength than an older, more crowded band. An automatic router might ignore this superior band simply because its raw signal appears weaker.

The real 'aha!' moment for many engineers is realizing that the strongest signal isn't always the best signal for their specific application.

So, what is the solution? 5G band locking is the process of manually instructing a cellular router's modem to connect only to a specific frequency band or a set of preferred bands. Instead of letting the modem decide, you become the decision-maker.

This gives you, the system integrator or OT engineer, precise control over your network environment. For an industrial application, this control is non-negotiable. By locking the band, you can:

• Enforce Stability: Force the router to stay on a known-good band, preventing the "flapping" and intermittent drops caused by automatic switching. This is critical for applications like AGV fleets or remote PLC access where a lost packet can halt operations.
• Optimize Performance: You can test different bands and lock the router onto the one that offers the best combination of speed and low latency for your specific location, even if it doesn't have the strongest raw signal.
• Reduce Troubleshooting Time: When a connectivity issue arises, you've already eliminated one of the biggest variables: the network band. This makes diagnosing the root cause much faster.

This level of control is fundamental for mission-critical deployments. High-performance industrial routers are designed with this capability in mind.

Before we get started, let's make sure you have everything you need on hand.

• 1 x Robustel R5020 Lite Router: The heart of our setup.
• 1 x Active SIM Card: This can be from any carrier. Ensure it has an active 5G data plan.
• 1 x Computer: A laptop or desktop to access the router's configuration interface.
• 1 x Ethernet Cable: To connect your computer to the router.
• Knowledge of the target 5G band to lock: You should have an idea of which 5G band (e.g., n78, n41) you want to force the router to use. Our first step will help you confirm this!
• Antennas Connected: Ensure cellular antennas is already securely attached to the router.

Ready to take control? Let's get hands-on. Here’s the practical, step-by-step approach to implementing 5G band locking on your industrial router.

First things first, you need to get connected to the router's configuration interface.

1. Insert the SIM Card: With the router powered off, insert your activated SIM card into the desired slot (e.g., SIM1).
2. Power Up: Connect the power supply and turn the router on. It's important to give it a full two minutes to boot up completely, initialize its software, and register on the cellular network.
3. Connect Your Computer: Use an Ethernet cable to link your computer to one of the router's LAN ports. Make sure your computer's IPv4 network settings are configured to "Obtain an IP address automatically" (DHCP). This allows the router to assign your computer an IP address so they can communicate.
4. Log In to the Web GUI: Open a web browser, type 192.168.0.1 into the address bar, and press Enter. You'll see a login page. The default username and password are both admin.

• Insider Tip: If this router isn't fresh out of the box, its IP address might have been changed. You can easily find it by checking your computer's network connection details and looking for the "Default Gateway" IP. That's your router's current address.

Now that you're inside the control panel, it's time to apply the lock.

1. From the main menu on the left, navigate to Interface -> Cellular.
2. You'll see a list under "Advanced Cellular Settings". Find the row for the SIM card you inserted (SIM1 or SIM2) and click the Edit button in that row.
3. On the next page, scroll down to find the Cellular Network Settings section.
4. Locate the dropdown menu for Band Select Type and change its value from "Auto" to "Specify".
5. A new section called Band Settings will instantly appear below, showing a checklist of all available frequency bands. Check the box for only the specific 5G band(s) that you want the router to use.
6. Click the Submit button at the bottom of the page to save your new configuration.
7. Finally, a " Save & Apply" button will appear at the top of the page. Click it to make your changes take effect. The router's modem will then restart and connect using only your selected band.

Moving beyond the "automatic" defaults is a crucial step in maturing your IoT deployment. 5G band locking is a powerful tool in your arsenal for creating the stable, reliable, and high-performance cellular connections that industrial applications demand. Whether you use a simple web GUI or advanced AT commands, taking manual control of your router's band selection transforms it from a reactive device into a predictable and optimized asset. In an environment where downtime is measured in lost revenue, this level of control isn't just a feature—it's a necessity. For more on building resilient networks, explore strategies for cellular failover.
