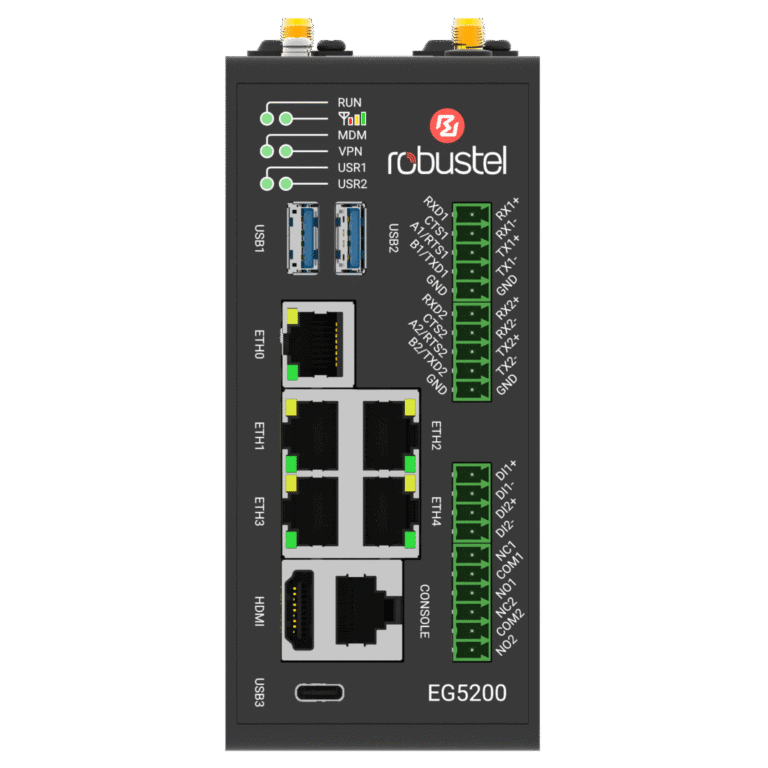

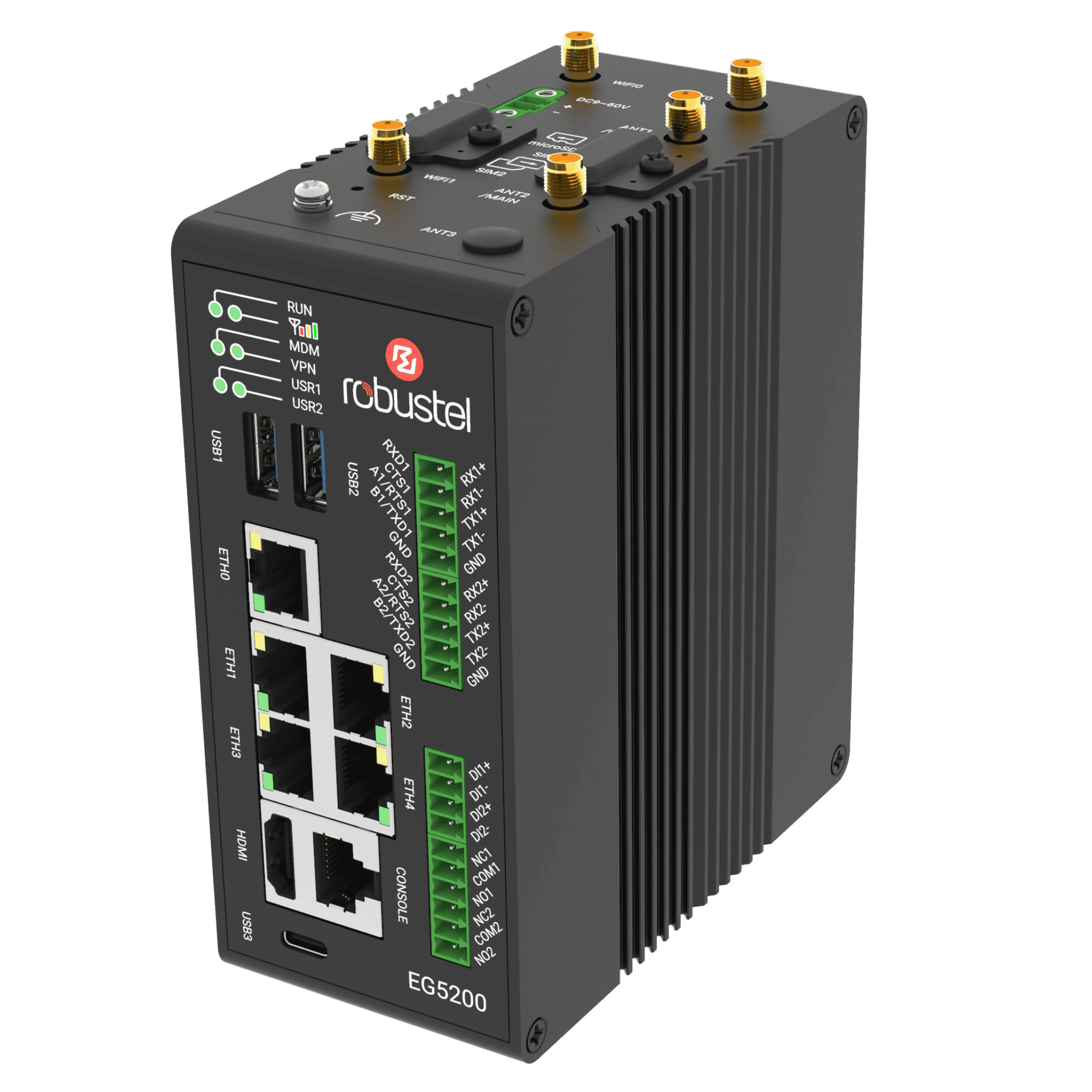

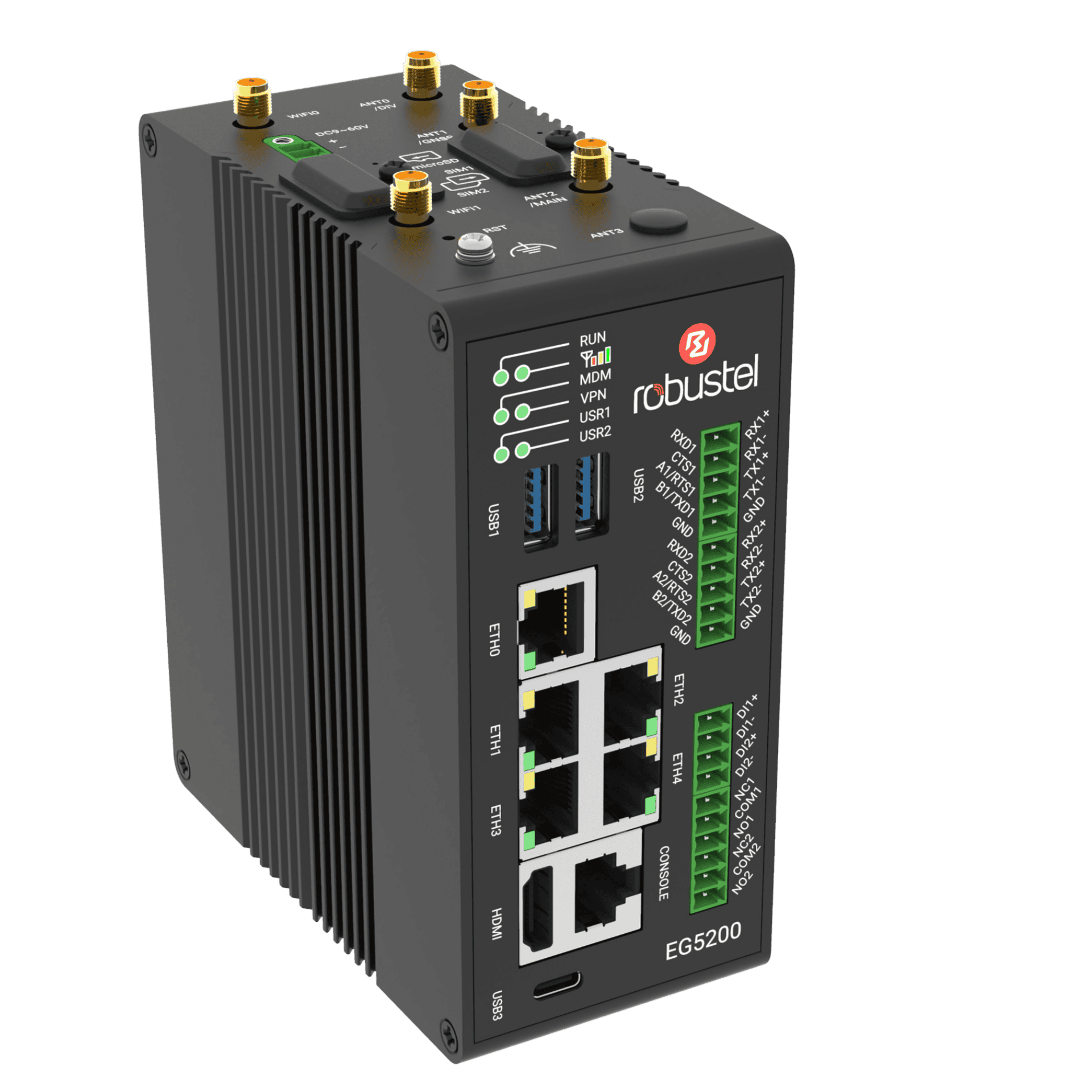

EG5200 Industrial Edge Computing Gateway

EG5200 Industrial Edge Computing Gateway

Model: EG5200



EG5200 Industrial edge computing gateway Product Overview

The Robustel EG5200 is an industrial edge computing gateway delivering global 5G/4G/3G/2G cellular connectivity and ARMv8-based edge computing. Combining cellular routing with embedded computing, this ruggedized platform serves as a converged node for industrial automation and machine vision deployments.

● Edge Computing & AI Processing: Features a Quad-core 1.6 GHz Cortex-A53 CPU, 4 GB LPDDR4 RAM, 32 GB eMMC, and a dedicated NPU (2.3 TOPS) for edge computing and AI applications.

● Comprehensive Industrial Connectivity: Offers 5G/4G/3G/2G, 5x Gigabit Ethernet, 2x RS-232/422/485, 2x DI, 2x Relay outputs, 1x HDMI 2.0, 2x USB 3.0 and 1x USB 2.0, with optional Wi-Fi 6, BLE 5.3, and GNSS.

● Secure & Reliable Industrial OS (RobustOS Pro): Powered by RobustOS Pro, based on Debian Linux and supporting Docker, VPN, Smart Roaming, and SMS-based remote management.

● Simplified Cloud Management: Integrates with the RCMS cloud platform for centralized monitoring and control, secure remote access, and OTA updates for firmware, configurations, and applications.



IoT hardware Specifications

Hardware System

● CPU: Quad-core Cortex-A53, 1.6 GHz

● NPU: 2.3 TOPS

● RAM: 4 GB LPDDR4

● Storage: 32 GB eMMC

● Watchdog: External

● Indicators: 1 x RUN, 1 x Signal, 1 x MDM, 1 x VPN, 2 x USR

Network Connectivity

● Cellular Versions: Available in 4G and 5G models (supporting global 5G/4G/3G/2G)

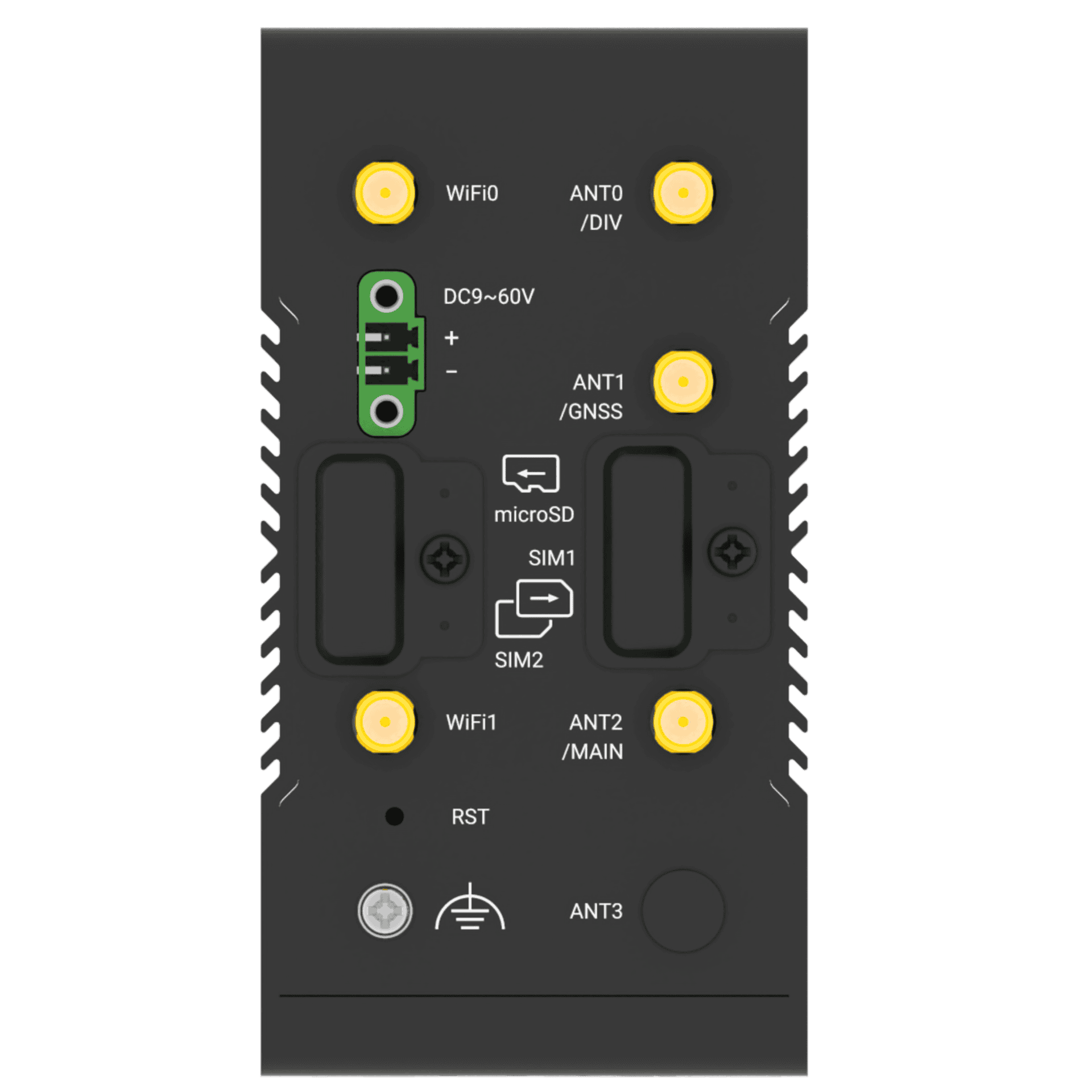

● Cellular Antennas: 2 x SMA-K (4G models) / 4 x SMA-K (5G models)

● SIM: 2 x Mini SIM (2FF)

● Wi-Fi (Optional): Wi-Fi 6 (2.4/5 GHz), 2 x 2 MU-MIMO, IEEE 802.11a/b/g/n/ac/ax compliant

● Bluetooth (Optional): BLE 5.3

● GNSS (Optional): GPS, GLONASS, BDS, Galileo, QZSS (4G models feature 1 dedicated SMA-K antenna; 5G models require a 4-in-1 combo antenna)

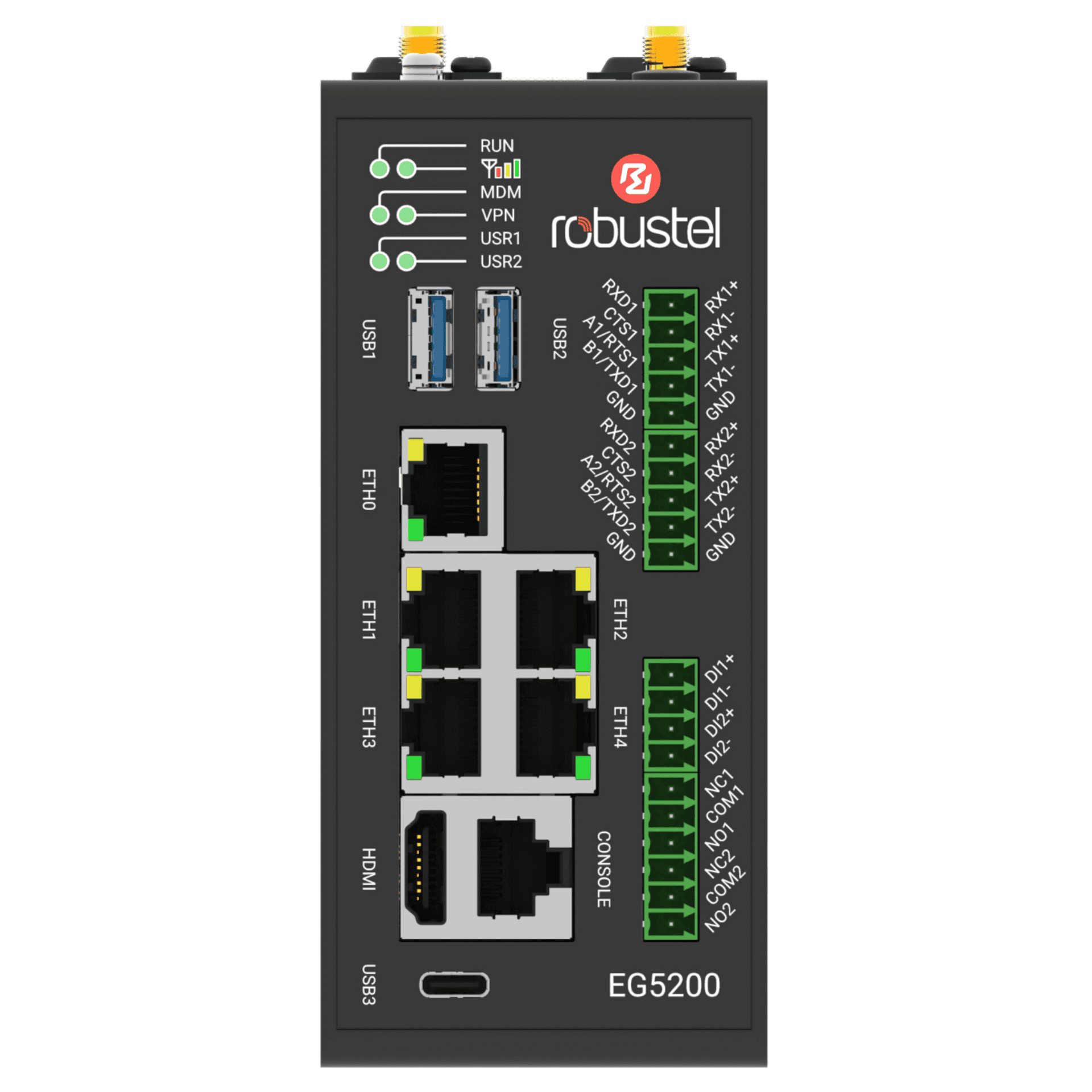

Interfaces

● Ethernet: 5 x RJ45, 10/100/1000 Mbps (configurable as LAN or WAN), with 1.5 kV magnetic isolation protection

● Serial: 2 x RS-232/422/485 (software configurable), 1 x RS-232 Console

● I/O: 2 x Digital Input, 2 x Relay Output

● USB: 2 x USB 3.0 (Type-A), 1 x USB 2.0 (Type-C OTG)

● Storage Expansion: 1 x microSD

● Video: 1 x HDMI 2.0

● Reset Button: 1 x RST

Power & Physical

● Input Voltage: 12–60 VDC

● Power Consumption: 6.5 W (Idle), 15 W (Max) @ 24 VDC

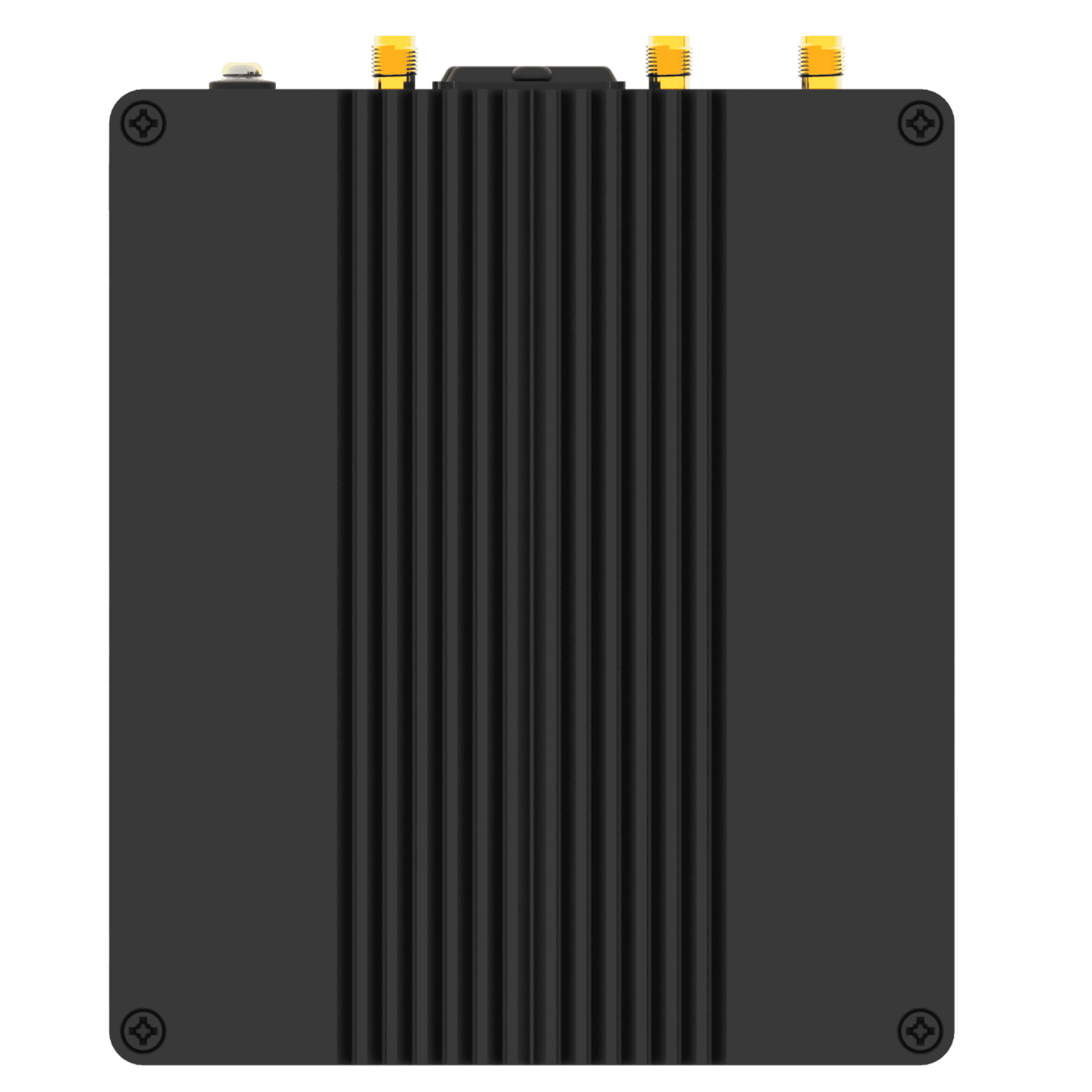

● Housing: Metal

● Protection: IP30

● Dimensions: 58 x 111 x 128 mm

● Weight: 622 g

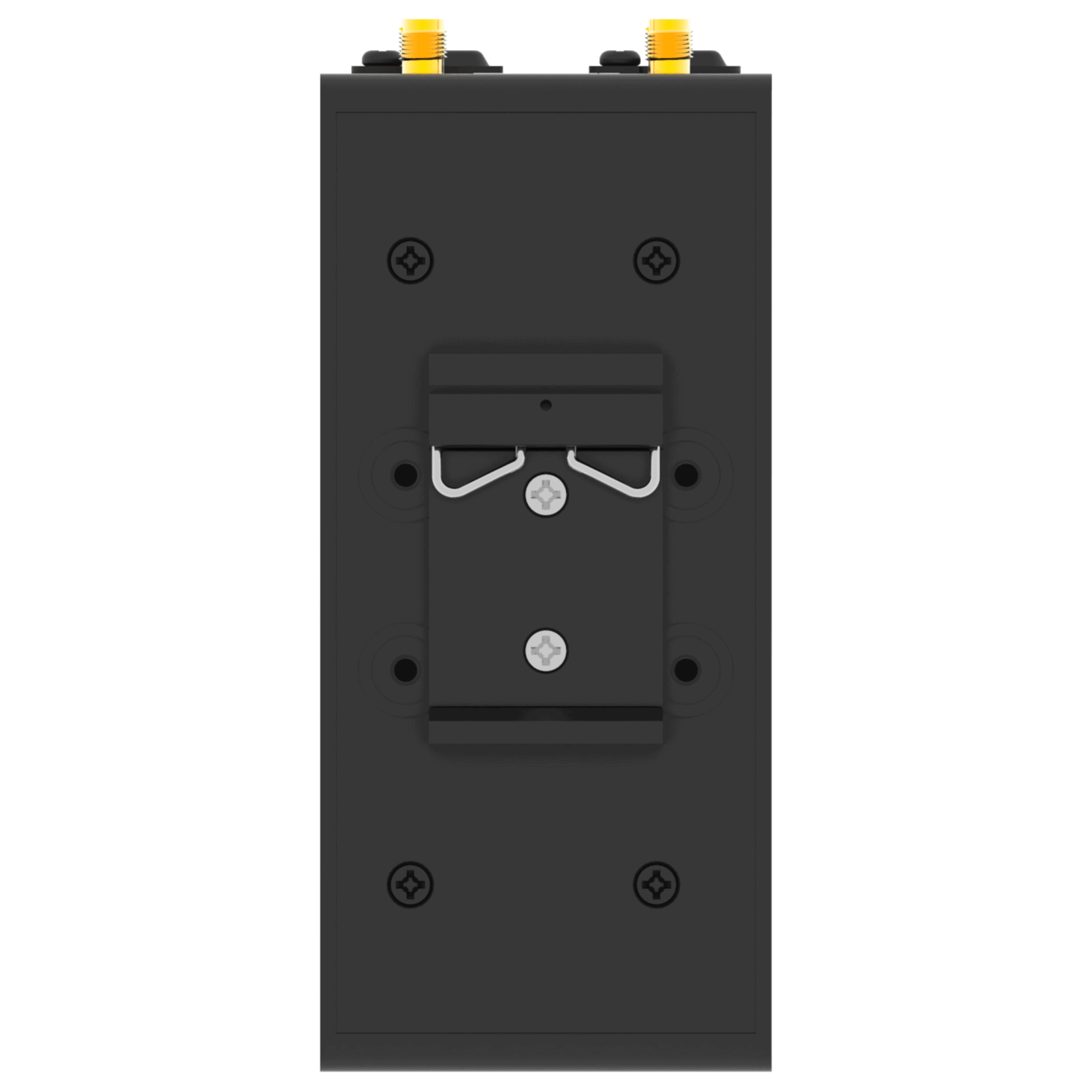

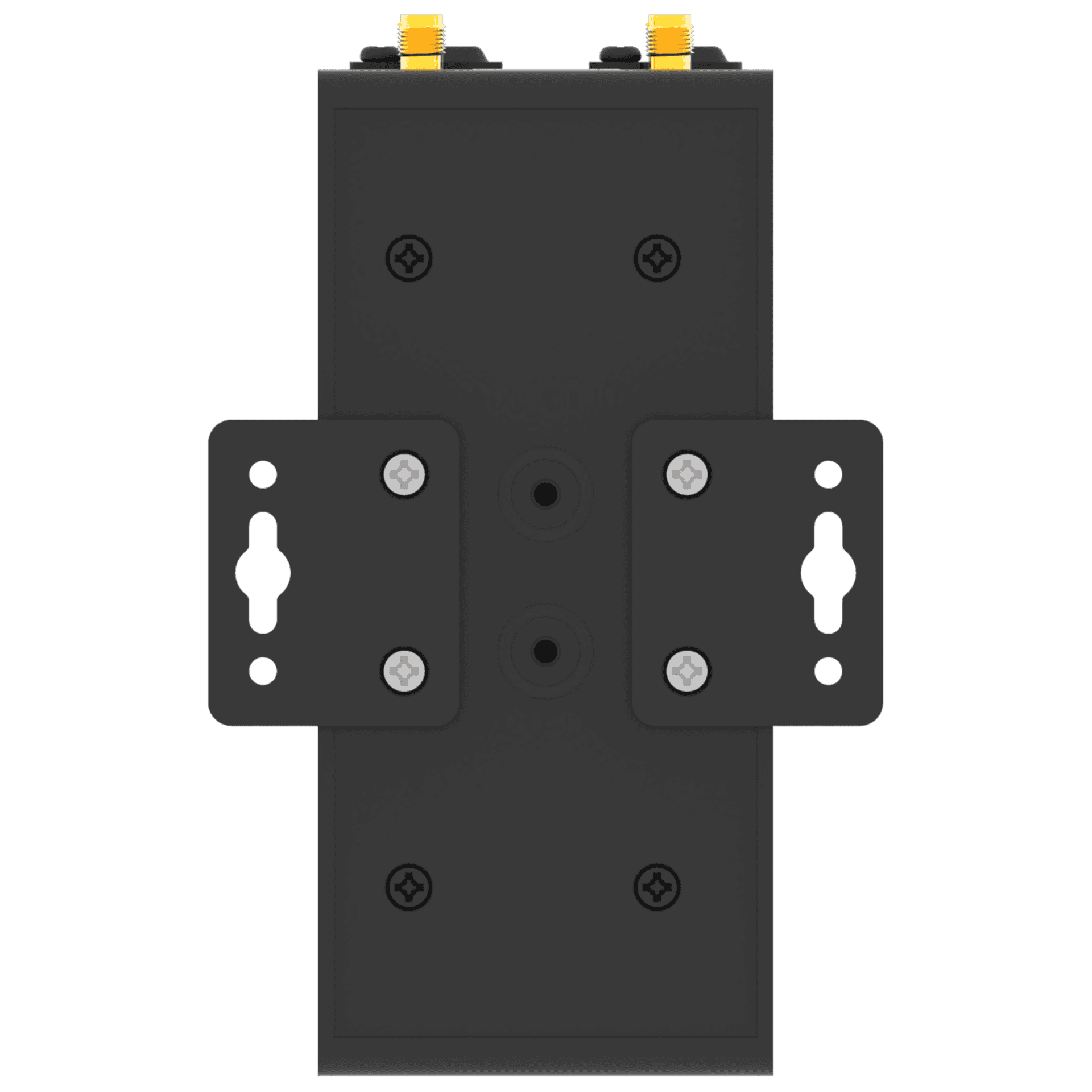

● Installation: Desktop, Wall Mount, 35 mm DIN-Rail Mount

Environmental

● Operating Temperature: -30°C to +70°C

● Storage Temperature: -40°C to +85°C

● Relative Humidity: 5% to 95% (non-condensing)

Certifications

● Regulatory(4G Version): CE, RCM, UKCA, FCC, IC, CB, TELEC, JATE

● Regulatory (5G Version): CE, RCM, UKCA, FCC, IC

● Environmental: RoHS 2.0

Software

Operating System

● OS: RobustOS Pro (based on Debian Linux)

Networking

● Serial Port Protocols: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

● Network Protocols: PPP, PPPoE, ARP, VLAN, ICMP, NAT, TCP, UDP, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, Telnet, SSH2, SMTP, Static Routing, etc.

Security

● VPN: IPsec, OpenVPN, WireGuard, GRE, DMVPN, L2TP, PPTP

● Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

SDK & Customization

● SDK Languages: C, C++, Python, Java, Node.js, etc.

● Available Resources for SDK: 30 GB Flash, 3 GB RAM

Management

● Configuration Interfaces: Web GUI, CLI, SMS, RCMS

●Remote Management Platform: Robustel Cloud Manager Service (RCMS)

●RCMS Features:

●Centralized Monitoring & Control

●Fleet-wide Over-the-Air (OTA) updates for firmware, configurations, and applications

●Secure Remote Access to device Web GUI/CLI and connected end-devices

Experience robust, cloud-native device management by registering at: Robustel Cloud Manager Service



Industrial IoT solutions Applications

● Multi-Camera (Edge Video)

● Energy & Utilities Site Hub

● Smart City IoT Hub



Why Robustel?

● Industrial grade fanless design

● Up to 10 years hardware lifetime

● Up to 10 years long term support for Linux

● Up to 5 years hardware warranty

● Global certifications

● Robust connectivity



Ordering Information

● Order code: A012000007

● Package contains: 1 x EG5200+4G, 2 x Cellular Antenna, 2 x Wi-Fi Antenna, 1 x GNSS Antenna, 1 x Power Adapter, 1 x DIN Rail Mounting Kit



● Order code: A012000016

● Package contains: 1 x EG5200+5G, 4 x Cellular Antenna, 2 x Wi-Fi Antenna, 1 x Power Adapter, 1 x DIN Rail Mounting Kit
