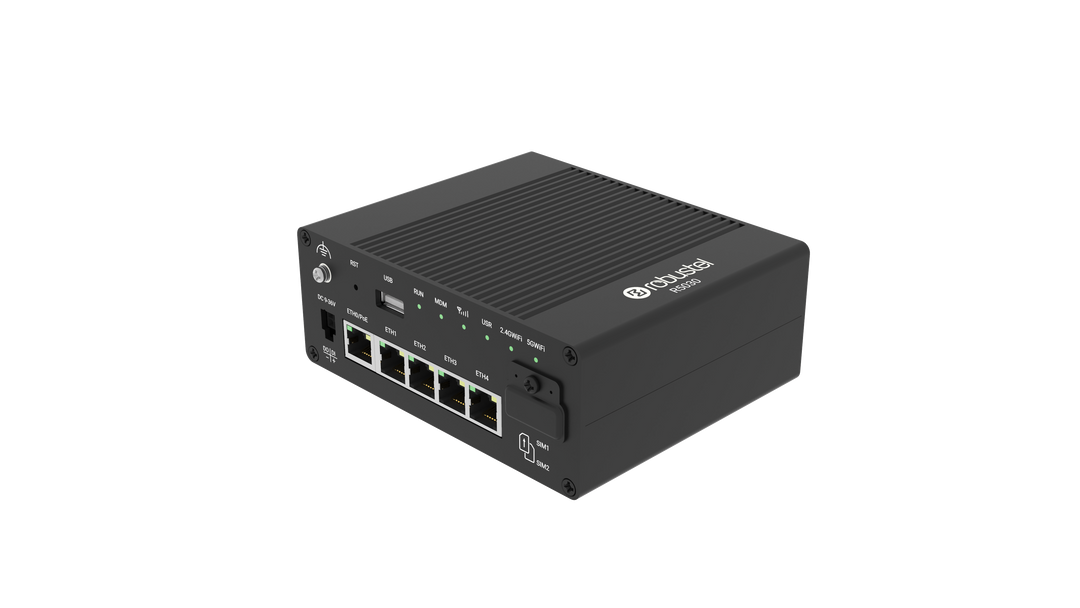

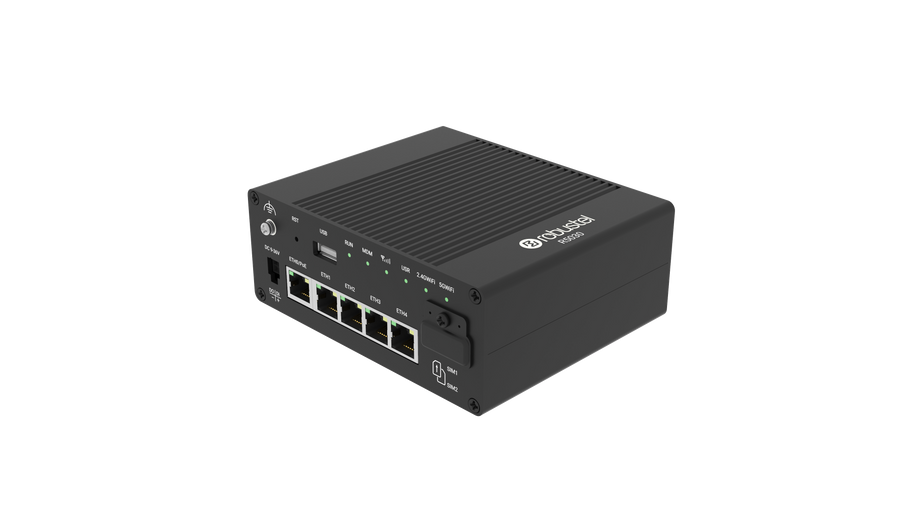

Industrial 5G Wi-Fi 6 Router

Model: R5030



Industrial 5G Wi-Fi 6 Router Product Overview

An industrial-grade 5G router engineered for cutting-edge wireless connectivity. The R5030 combines high-speed 5G, dual-band Wi-Fi 6, and a high-performance CPU to deliver robust and reliable network solutions for demanding enterprise and mobile applications.

● High-Speed, Resilient Connectivity: Combines 5G, Wi-Fi 6, and Gigabit Ethernet with auto-failover capabilities, providing load balancing and ensuring uninterrupted service for mission-critical operations.

● Advanced Onboard Wi-Fi: Features dual-band Wi-Fi 6 (802.11ax) that supports a high density of connections in both AP and Client modes, making it ideal for passenger Wi-Fi and smart office applications.

● Enterprise-Grade Security: Powered by the penetration-tested RobustOS, the R5030 secures your network with a powerful firewall and a comprehensive suite of VPNs, including IPsec, OpenVPN, WireGuard, and DMVPN.

● Simplified Cloud Management: Fully compatible with the Robustel Cloud Manager Service (RCMS) for real-time monitoring, centralized management, and fleet-wide Over-the-Air (OTA) updates to minimize downtime and optimize performance.

Router Hardware Specifications

Hardware System

● CPU: Dual-core ARM Cortex A53, 1.0 GHz

● RAM: 512 MB

● Storage: 8 GB eMMC

● Indicators: LED for RUN, MDM, RSSI, USR, 2.4G Wi-Fi, 5G Wi-Fi

Network Connectivity

● Cellular (5G NR):

● Modem Standard: 5G NR Sub-6GHz (3GPP Release 15/16)

● Frequencies: Worldwide Coverage (See Ordering Information for specific bands)

● SIM: 2 x Mini SIM (2FF)

● Antennas: 4 x SMA Connectors

● Wi-Fi:

● Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6), Dual-Band (2.4 GHz & 5 GHz)

● Modes: Access Point (AP), Client

● Antennas: 2 x RP-SMA Connectors

● GNSS:

● Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS

● Antenna: 1 x SMA Connector

Interfaces

● Ethernet: 5 x 10/100/1000 Mbps, RJ45 (1x WAN + 4x LAN, or 5x LAN)

● PoE-PD: 1 x Port (ETH0) supports 802.3at Power over Ethernet

● USB: 1 x USB 2.0 (host)

● Digital I/O: 1 x DI, 1 x DO (Wet contact)

Power & Physical

● Input Voltage: 9 to 36 VDC (4-pin Micro-Fit socket)

● Power Consumption: ~6W (Idle @ 24VDC), ~16.5W (Max @ 24VDC)

● Housing: Metal

● Protection: IP30

● Dimensions: 49 x 105 x 128 mm

● Weight: 581 g

● Installation: DIN-Rail, Wall Mount, Desktop

Environmental

● Operating Temperature: -25°C to +70°C

● Storage Temperature: -40°C to +85°C

● Relative Humidity: 5% to 95% (non-condensing)

Certifications

● Global Regulatory: CE, UKCA, RCM, E-Mark

● Environmental Standards: RoHS2.0

Software

● Operating System:

● OS: RobustOS (Linux-based, fully programmable)

● Key Supported Software & Protocols:

● Supported Applications/Features: PPTP, DMVPN, VRRP, SNMP, Captive Portal, WLAN Multi AP, Edge2Cloud

● Networking:

● Network Protocols: TCP, UDP, IPv4/v6, PPP, PPPoE, DHCP, ICMP, NAT, HTTP(S), DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS

● Security:

● VPN: IPsec, OpenVPN, Wireguard, GRE, DMVPN

● Firewall: Stateful firewall with DMZ, anti-DoS, Filtering (IP/Domain/MAC), Port Mapping, Access Control

● SDK & Customization:

● SDK Languages: C, C++

● Available Resources: Approx. 6.5 GB Flash, 128 MB RAM available for SDK

● Management:

● Configuration Interfaces: Web GUI, Command Line Interface (CLI), SMS

● Remote Management Platform: Robustel Cloud Manager Service (RCMS)

● RCMS Features: Centralized Monitoring, Fleet-wide OTA updates, Secure Remote Access

● Experience robust, cloud-native device management by registering at:

Robustel Cloud Manager Service

Industrial IoT solutions Applications

● Passenger Wi-Fi

● Smart City / CCTV

● Enterprise IT

● Broadband Failover

● Smart Office



Why Robustel?

● Industrial grade fanless design

● Up to 10 years hardware lifetime

● Up to 10 years long term support for Linux

● Up to 5 years hardware warranty

● Global certifications

● Robust connectivity



Ordering Information

● Order code: A015400008

● Package contains: 1 x R5030, 1 x Wall mounting kit, 4 x cellular antennas, 2 x Wi-Fi antennas, 1 x GNSS antenna, 1 x global power adapter
