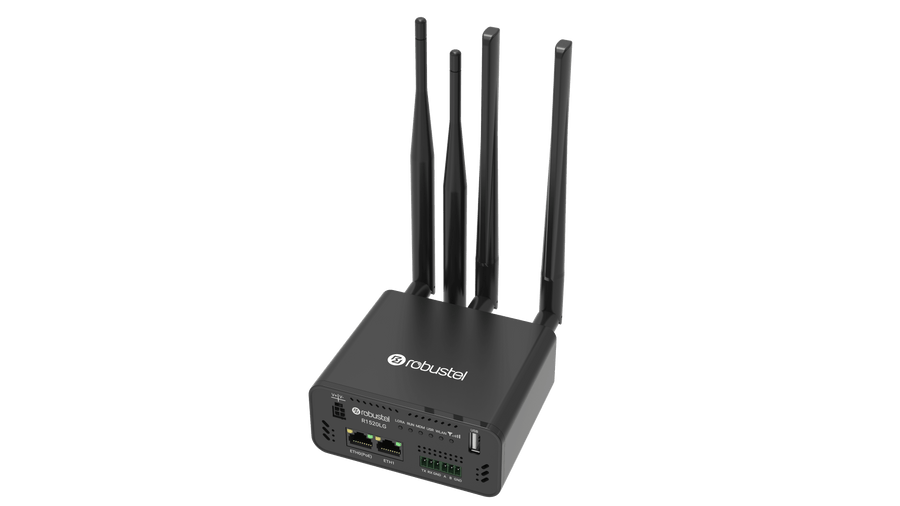

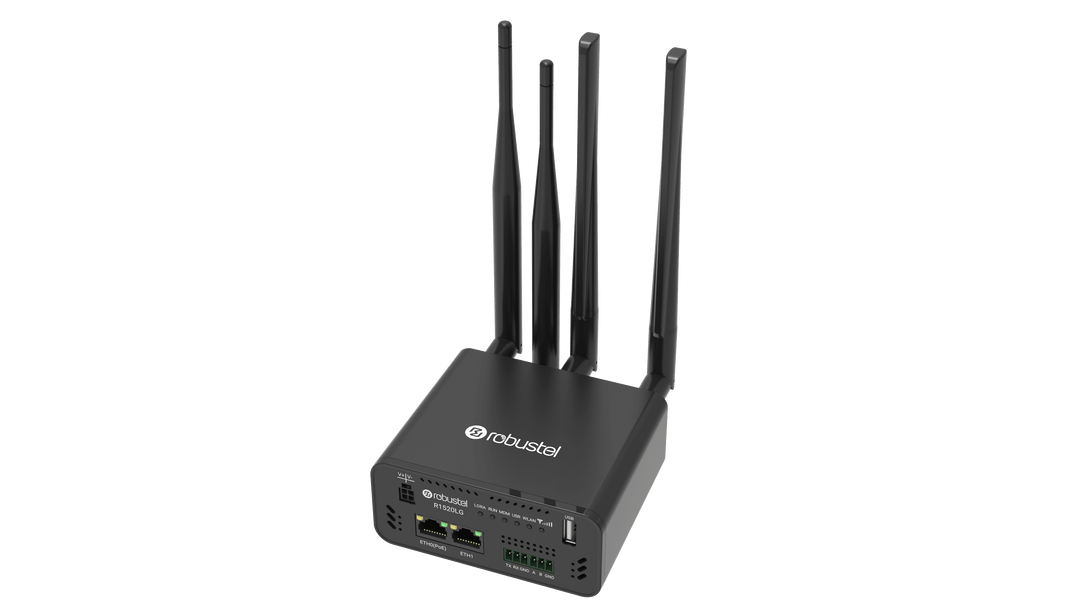

R1520LG Industrial LoRaWAN Edge Gateway
Model: R1520LG



Product Overview

Specifications
Hardware System
CPU: NXP i.MX6ULL, Cortex-A7, 792 MHz
RAM: 512 MB DDR3
Storage: 8 GB eMMC
LED indicators: LoRa, RUN, MDM, USR, WLAN, RSSI

LoRaWAN Interface
Frequency: EU868 or AU915 or US 915, up to 8 channels, 1 antenna
Max transmitted power: +25 dBm
Max sensitivity: -140 dBm
Chipset: Semtech SX1302

Networks
Cellular modem: 4G Cat-4, dual SIM, 2 antennas
Wi-Fi: 802.11n Wi-Fi, 2.4 GHz, supports AP and clients modes, 1 antenna

Interfaces
Ethernet: 2 x Mbit Ethernet, ETH0 supports 802.3at PoE PD
Serial: 1 x RS232, 1 x RS485
USB: 1 x USB 2.0 host

Physical Characteristics
Power supply: 9 to 60 VDC, idle 1.5W @ 12 VDC, max 10W @ 12 VDC
Protection: IP30
Housing and weight: plastic, 238.5g
Dimensions: 105 x 90 x 46 mm
Installation: Din-Rail, wall mounting, desktop
Operation temperature: -20 to 60°C
Storage temperature: -40°C to +85°C
Relative humidity: 5% to 95% RH (non-condensing)



Regulatory and Type Approvals:
Type approvals: CE, UKCA, RCM, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC, ANATEL, Rogers, CRC, SUBTEL, ENACOM, URSEC, KCC, NOM, POSTEL, ARCOTEL, E-Mark,
Environmental: RoHS 2.0, WEEE



Operation System
Debian Operation System + RobustOS Pro (Web GUI for network management)
User installed: Docker, MQTT, InfluxDB, Node-Red, Grafana, ChirpStack (built-in LNS LoRaWAN Network Server)
IoT Cloud Ready (user installed): MQTT, AWS, Azure, Aliyun
Fieldbus ready (user installed): Modbus, OPC UA, BACnet, DNP 3, IEC 101, IEC 104
Support RCMS cloud management platform



RobustOS Pro Software
LoRaWAN protocols: V1.04 Class A/B/C
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc.
VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN
Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management: RCMS cloud management platform, Web, CLI, SMS
Serial protocols: transparent TCP client/server, UDP, Modbus RTU to TCP
Routing: static routing, dynamic routing (BGP, OSPF v2, RIF v1/v2)
SDK: C, C++, Python, Java, Node.js etc., flash available 6 GB, RAM available 256 MB
Apps: RCMS, Wireguard, Edge2Cloud



The Robustel Cloud Manager Service (RCMS) is a unified cloud-based platform designed for real-time monitoring and centralized management of industrial IoT devices. Fully compatible with Robustel routers and gateways, RCMS delivers an interactive geospatial dashboard that enables users to visualize device locations and track critical metrics such as data usage, signal strength, and network status. To ensure seamless operations, the platform facilitates over-the-air (OTA) updates for firmware, configurations, and applications, minimizing downtime while optimizing system performance. Experience robust, cloud-native device management by registering at: https://rcms-cloud.robustel.net



Applications
Industrial IoT
Smart city
Smart agriculture
Smart utility
Smart logistic



Ordering Information
Order code: A013700004
Package contains: 1 x R1520LG + EU868, 1 x Wall mounting kit, 2 x cellular antennas, 1 x Wi-Fi antenna, 1 x LoRa antenna, 1 x global power adapter

Order code: A013700005
Package contains: 1 x R1520LG + AU915, 1 x Wall mounting kit, 2 x cellular antennas, 1 x Wi-Fi antenna, 1 x LoRa antenna, 1 x global power adapter
