What is an Edge Gateway in IoT? A Comprehensive Guide

The Internet of Things (IoT) has connected billions of devices, generating an unprecedented volume of data. Initially, much of this data was sent directly to centralized cloud platforms for processing. However, this model presents challenges related to latency, bandwidth costs, and security. In response, the industry has shifted towards a more intelligent architecture known as "edge computing," and at the heart of this shift is the edge gateway in IoT.

An edge gateway is much more than a simple modem or router. It’s an intelligent device that acts as a local command center for your IoT ecosystem. According to Gartner's analysis of edge computing , processing data closer to the source of generation dramatically reduces latency and saves network bandwidth. By performing tasks like data filtering, aggregation, protocol conversion, and even running analytics locally, an edge gateway in IoT provides the foundation for more responsive, secure, and efficient IoT solutions. This article will break down exactly what an edge gateway in IoT does and why it's essential for modern industrial applications.

An edge gateway in IoT performs several critical functions that distinguish it from standard networking hardware. It is a sophisticated piece of equipment designed to bridge the physical world of machines and the digital world of the cloud.

One of an edge gateway's primary roles is to connect two different worlds:

• Operational Technology (OT): This is the world of industrial control systems, including PLCs, sensors, actuators, and machines that use industrial protocols like Modbus, OPC UA, or BACnet.
• Information Technology (IT): This is the world of enterprise networks and the cloud, which uses standard internet protocols like TCP/IP, MQTT, and HTTPS.

An edge gateway in IoT seamlessly translates data between these different protocols, allowing, for example, a Modbus sensor to securely send its data to an MQTT broker on AWS or Azure. This protocol conversion is a fundamental capability.

Instead of sending all raw data to the cloud, a powerful edge gateway in IoT processes it locally. This is what "edge computing" means. This can include:

• Filtering: Ignoring redundant or irrelevant data to reduce the amount sent to the cloud.
• Aggregation: Summarizing data points over time (e.g., calculating the average temperature over a minute instead of sending a reading every second).
• Analysis: Running analytics or even machine learning models directly on the gateway to detect anomalies or make real-time decisions without cloud latency.
• Control: Executing automated responses based on local data. For example, if a temperature sensor connected to the gateway exceeds a threshold, the gateway can directly command a fan to turn on without waiting for an instruction from the cloud.

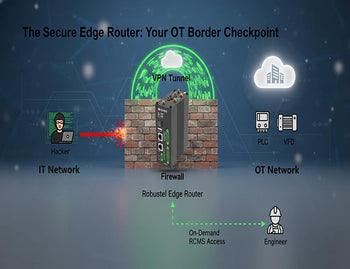

The edge gateway in IoT acts as a critical security checkpoint. It protects the sensitive OT network from potential threats from the external IT network. Key security functions include:

• Stateful Firewall: Protecting internal assets from unauthorized access.
• VPN Tunnels: Creating secure, encrypted connections to the cloud or a central office using protocols like IPsec, OpenVPN, or Wireguard.
• Access Control: Ensuring only authorized devices and users can communicate through the gateway. This security function is paramount for any industrial edge gateway in IoT.

To understand these functions in a real-world context, let's look at the Robustel EG5120. It's an industrial-grade industrial IoT edge gateway engineered to deliver all the core capabilities discussed above.

Selected EG5120 Specifications:

Feature Category	Specification
System
CPU	Quad-Core ARM Cortex-A53, 1.6 GHz (NXP i.MX8)
RAM / Storage	2 GB DDR4 / 16 GB eMMC
Connectivity
Cellular	Global 4G LTE Cat 4 (Dual SIM Failover)
Ethernet	2 x Gigabit Ethernet (10/100/1000 Mbps)
Industrial Interfaces	2 x RS232/RS485, 2 x DI, 2 x DO
Software
Operating System	RobustOS Pro (Debian 11 based with LTS)
Containerization	Docker support
IoT Stack Support	Node-RED, MQTT, InfluxDB, Grafana
Industrial Protocols	Modbus, OPC UA, BACnet, DNP3, and more

This combination of high-performance hardware and a flexible, open software environment makes the EG5120 an exemplary edge gateway in IoT .

Deploying a dedicated edge gateway in IoT like the EG5120 offers significant benefits over simpler connectivity devices.

By processing data locally, an edge gateway in IoT can respond to events in milliseconds, rather than the seconds it might take for a round-trip to the cloud. This is critical for industrial control applications where immediate action is required. This low latency is a key advantage, as noted in reports on the value of edge computing from the Linux Foundation .

Sending every byte of data from every sensor to the cloud can be very expensive, especially over cellular networks. An edge gateway in IoT intelligently filters and aggregates data, significantly reducing the amount of data transmitted and lowering bandwidth costs. Furthermore, it can reduce cloud processing costs by handling analytics locally. This cost reduction is a major driver for edge adoption.

What happens if the internet connection to the cloud goes down? With a powerful edge gateway in IoT , critical local operations can continue. The gateway can keep logging data, running automation rules, and controlling local machinery until the connection is restored. Robustel gateways like the EG5120 further enhance this with features like Dual-SIM failover and Automatic System Failback , ensuring both network and system resilience.

Modern edge gateways in IoT are often part of a larger management ecosystem. The EG5120, for example, integrates fully with the Robustel Cloud Manager Service (RCMS) . This allows organizations to:

• Monitor the health and performance of their entire fleet of gateways from a single dashboard.
• Perform Over-the-Air (OTA) updates for the OS and applications running in containers.
• Securely access devices remotely for troubleshooting.This centralized cloud management simplifies the operational challenges of deploying and maintaining hundreds or thousands of edge gateways in IoT .

An edge gateway in IoT is essential in any application that requires real-time processing, high reliability, and secure connectivity between OT and IT systems.

• Smart Manufacturing: Connecting PLCs and machine sensors to an MES, running local quality control analytics, and enabling predictive maintenance.
• Smart Energy: Grid automation, monitoring renewable energy assets, and managing substation data locally.
• Smart Buildings: Integrating HVAC, lighting, and security systems for automated control and energy optimization.
• Connected Transportation: In-vehicle data processing, fleet management, and real-time telematics.
• Smart Healthcare: Processing patient data from medical devices locally for real-time alerts and privacy.

An edge gateway in IoT is far more than a simple router; it is a powerful, intelligent computer that serves as the secure bridge between the physical and digital worlds. It enables real-time local processing, enhances reliability, lowers operational costs, and provides the security needed for demanding industrial applications. As IoT continues to expand, the role of the edge gateway in IoT will only become more critical. Devices like the Robustel EG5120, with their high-performance ARM processors, open Debian-based OS, and integrated cloud management, represent the future of intelligent and scalable IoT deployments. For more details on this device, check out the official EG5120 product page.
