Node-RED edge computing + EG series edge gateways: building the "nerve endings" of digital transformation

In my experience, one of the biggest roadblocks in any Industrial IoT project is the "last mile" of code. You have an OT engineer who understands the machinery perfectly and an IT team that knows how to manage a cloud database, but there's a gap in the middle. Who writes the software on the gateway that reads the PLC data, checks it for anomalies, and sends it to the cloud in the right format? This often requires a specialized and expensive developer.

I've seen projects stall for weeks over a simple request: "Can we get an email alert if the motor temperature exceeds 80 degrees for five minutes?" For the OT engineer, the logic is simple, but implementing it in Python or C++ is a major task. What if that engineer could just draw the logic on a screen, like a flowchart? That's not a fantasy; that's the reality of Node-RED edge computing. It's about empowering the domain experts on the factory floor to build their own solutions.

At its core, Node-RED is an open-source, flow-based programming tool for wiring together hardware devices, APIs, and online services. Let's be clear: it's a visual way to build applications. Instead of writing lines of code, you drag and drop pre-built blocks, called "nodes," onto a canvas and connect them with "wires" to create a "flow." Each node has a small, specific job, like reading a Modbus register, checking a value, or sending an MQTT message. When you wire them together, you create a powerful data processing application.

When this environment runs on an industrial edge gateway, it becomes Node-RED edge computing. It gives you a simple yet powerful way to process data right at the source, making your operations smarter, faster, and more efficient.

At Robustel, we've integrated Node-RED directly into our E2C Pro middleware and named it Robustel Flow. We didn't just include it; we deeply embedded it to work seamlessly with our hardware and software. This integration means Node-RED can access all the internal data buses and storage on the gateway, giving it powerful capabilities. It’s a core component of our edge gateways, including the powerful EG5120, and is designed to allow even non-programmers to create and deploy complex edge logic with ease.

• The Challenge: You have a legacy machine that speaks Modbus RTU, and your IT department needs its data in a modern cloud platform that only accepts JSON over MQTT.
• The Node-RED Solution: This is the classic Node-RED edge computing use case. You can build a simple flow in minutes:
  • Drag in a "Modbus Read" node and configure it with your PLC's IP address and the registers you want to read.
  • Connect its output to a "Function" node to organize the raw data into a clean JSON object (e.g., {"temperature": 75.2, "pressure": 1024}).
  • Wire that node to an "MQTT Out" node and configure it with your cloud server's address.
• The Benefit: You've just created a powerful protocol converter without writing a single line of code. You can also add nodes to only send data when values change, saving significant data costs.

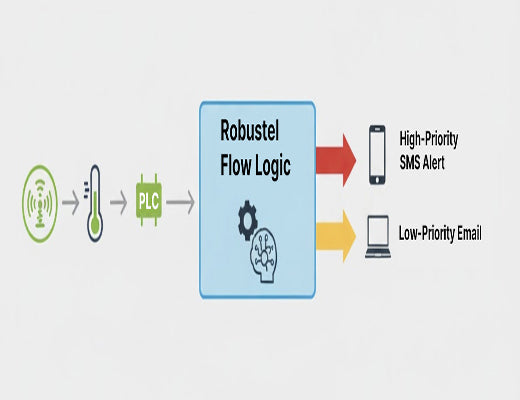

• The Challenge: A simple "machine stopped" alarm isn't enough. You want to get a warning before a failure occurs by analyzing multiple data points.
• The Node-RED Solution:As seen in our IIoT Starter Kit, you can use Node-RED to build intelligent logic to detect anomalies and trigger alerts.
  • Read data from multiple sources: a vibration sensor on a motor, a temperature sensor on a bearing, and the motor's current draw from a PLC.
  • Use "Switch" and "Function" nodes to build logic like: "If vibration exceeds threshold X AND temperature is above threshold Y, trigger a high-priority alert. If only vibration is high, trigger a low-priority maintenance request."
  • Send the alert via multiple channels using dedicated nodes for Email, SMS, or even platforms like Slack and Telegram.
• The Benefit: This transforms your maintenance from reactive to proactive, preventing costly downtime by catching failures before they happen.

• The Challenge: Sometimes you just need a simple, on-site dashboard to check a machine's status without needing a full SCADA system or even an internet connection.
• The Node-RED Solution:Node-RED has a powerful set of official dashboard nodes. You can build a simple, web-based Human-Machine Interface (HMI) that runs directly on the edge gateway.
  • Drag and drop "Gauge," "Chart," and "Text" nodes onto your canvas.
  • Wire your Modbus or OPC UA data directly to these dashboard nodes.
  • Access the dashboard from any web browser on the local network by navigating to the gateway's IP address.
• The Benefit: This provides a fast, free, and incredibly simple way to create local status displays for operators and maintenance staff, improving on-site visibility without any additional hardware or cloud costs.
