IoT Router vs Gateway: What's the Real Difference?

I've seen it happen time and again: a project gets derailed by choosing a simple router when what they really needed was an intelligent gateway. The cost of that mistake can be enormous, leading to project delays and security vulnerabilities. Understanding the precise role of each device in the IoT Router vs Gateway comparison is fundamental to building a successful industrial IoT solution.

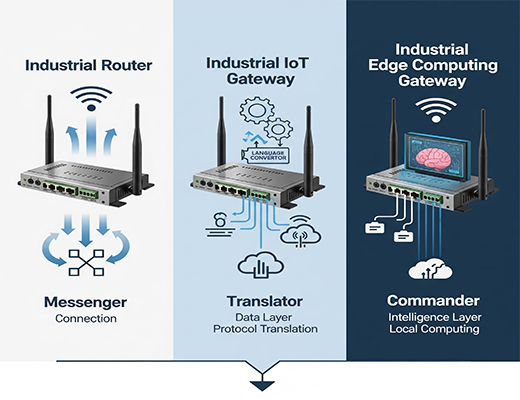

To make it simple, let's use an analogy:

• Industrial Router: A reliable "Messenger."
• Industrial IoT Gateway: A multilingual "Translator."
• Industrial Edge Computing Gateway: A decisive "Commander."

This isn't just about product iteration; it's a profound evolution from simple "Connection" to true "Intelligence," a core concept in our Ultimate Guide to Industrial IoT Edge Gateways .

This is a ruggedized network device with one core mission: to provide a stable, reliable, and secure cellular (4G/5G) "connection pipe" for industrial devices or local networks. An IoT Router is a powerful router built to survive harsh environments (wide temperatures, vibration, EMI).

• Connection Reliability: Features like dual-SIM automatic failover and link monitoring ensure your business never goes offline.
• Network Security: A powerful built-in firewall and a full suite of VPN protocols (IPsec, OpenVPN, etc.) create secure tunnels for remote access.
• Environmental Durability: Industrial-grade hardware is designed to withstand the physical punishment of a factory floor or a remote outdoor cabinet.

• Remote Device Monitoring: Providing connectivity for EV charging piles, vending machines, or power distribution boxes.
• Retail & Branch Backup: Using cellular as a failover for wired broadband to ensure business continuity.
• In-Vehicle Networking: Offering stable connectivity for buses, logistics trucks, and engineering vehicles.
• Security & Surveillance: Backhauling video data from cameras in areas without wired internet.

In a nutshell: The Router is all about connection. It faithfully delivers data packets but doesn't care what's inside them.

The Industrial IoT Gateway is the "data bridge" connecting the world of Operational Technology (OT) to the world of Information Technology (IT). It includes all the functions of an industrial router but adds the critical ability to "translate" the languages of industrial equipment.

• Protocol Conversion: This is the key difference in the IoT Router vs Gateway debate. It can understand and parse various industrial protocols (like Modbus, Profinet, EtherNet/IP, BACnet) and convert that OT data into a unified IT format (like MQTT or HTTPS).
• Data Aggregation & Filtering: It can connect to multiple downstream devices (PLCs, sensors), aggregate their data, and perform initial cleaning and filtering.

• Digital Retrofitting: Connecting legacy PLCs and CNC machines in an old factory to collect production data.
• Building Management System (BMS) Integration: Bridging a building's HVAC system (often using BACnet) with a newer LoRaWAN sensor network.
• New Energy Data Collection: Connecting to solar inverters and energy storage systems to gather operational data.

In a nutshell: The IoT Gateway doesn't just connect; it understands the data. It translates the language of the OT world so the data can be used.

This is the ultimate form of the Industrial IoT Gateway. It's no longer a passive data bridge but an "edge intelligence hub" with powerful local computing capabilities. An Edge Computing Gateway includes all the features of the previous two devices and adds the ability to process, analyze, and make decisions on data right where it's created.

• Edge Intelligence: Equipped with a high-performance CPU/NPU (like the NXP i.MX 8M Plus), it can run complex applications and even AI models directly on the gateway.
• Reduced Latency & Bandwidth: Massive amounts of data are processed locally, with only key results sent to the cloud. This enables millisecond-level real-time responses and dramatically cuts cellular data costs.
• Enhanced Data Security & Privacy: Sensitive data can be processed on-site without ever being uploaded, improving security.
• Increased System Reliability: The gateway can continue to run its local intelligent applications and control logic even if the connection to the cloud is lost.

• Edge AI for Quality Control: Connecting to an industrial camera on a production line to run a visual inspection AI model, rejecting defective products in real-time.
• Predictive Maintenance: Running machine failure prediction models directly on the gateway, analyzing vibration and temperature data to provide early warnings.
• Smart Security: Performing local video analytics to detect anomalies and trigger alarms without sending a constant video stream to the cloud.

In a nutshell: The Edge Computing Gateway doesn't just understand data; it thinks about the data and can make autonomous decisions on the front line.

To make it even clearer, this table summarizes the key differences in the IoT Router vs Gateway comparison:

Device Type	Core Function	Value Evolution
Industrial Cellular Router	Focuses on "Connection"	Connectivity Layer
Industrial IoT Gateway	Adds "Protocol Translation"	Data Layer
Industrial Edge Computing Gateway	Adds "Local Computing"	Intelligence Layer

From the "Messenger" that provides a reliable connection, to the "Translator" that understands OT data, to the "Commander" that can think and act on that data at the source—this is the core evolutionary path of industrial IoT devices. Understanding this logic will help you choose the right starting point for your digital transformation journey.
