Dynamic Routing Protocol: Automate Your LTE Router Network

Let's be clear: in today's always-on world, network downtime isn't just an inconvenience; it's a direct threat to your bottom line. I've seen countless businesses grapple with the fallout from a failed internet connection at a critical remote site. The scramble to manually re-route traffic is stressful, slow, and expensive. This is where the old way of doing things—static routing—shows its age. But what if your network could heal itself? What if your remote LTE routers could intelligently and automatically find the best path for data, even when the primary link goes down? That's not science fiction; it's the power of a dynamic routing protocol.

Think of a dynamic routing protocol as a GPS system for your network data. Instead of manually programming a single, fixed route for every destination (which is what you do with static routing), routers running a dynamic routing protocol constantly talk to each other. They share updates about the network's layout, or "topology," and use a sophisticated algorithm to calculate the most efficient path for data to travel.

If a road is suddenly closed (a network link fails), the system automatically recalculates a new route without you having to do a thing. Common dynamic routing protocols you'll encounter include:

• OSPF (Open Shortest Path First): A highly efficient protocol used within a single large organization (an autonomous system). It's incredibly fast at adapting to network changes.
• BGP (Border Gateway Protocol): The powerhouse protocol that runs the entire internet. BGP is used to exchange routing information between different networks, like your company and your internet service provider.
• RIP (Routing Information Protocol): An older, simpler protocol based on "hop count." While less common in new, complex networks, it's easy to configure for smaller setups.

Imagine you manage 50 retail stores, each with a primary fiber connection and a cellular backup. One morning, a construction crew accidentally cuts the fiber line to ten of those stores. With static routing, those stores are offline. Your IT team now has to manually log into each router's firewall or gateway and change the routing rules to activate the LTE backup. It's a frantic, error-prone process that takes hours, all while those stores are losing sales.

Now, picture the same scenario with a dynamic routing protocol like OSPF running. The moment the fiber link goes down, the local router detects the failure. Within seconds, it automatically broadcasts an update to its neighbors, effectively saying, "My primary path is gone!" The protocol instantly recalculates the next-best path—the cellular connection—and updates the routing table. The failover is so fast, the store manager barely notices a flicker. Your IT team? They just get an automated alert that the failover worked perfectly.

Using a dynamic routing protocol on industrial LTE or 5G routers isn't just a theoretical advantage; it solves critical, real-world business challenges. This is especially true when you need a network that is both resilient and scalable.

This is the most crucial use case. Your business can't afford to stop when a wired connection fails. By deploying an industrial 5G router with dynamic routing support, you can create a truly automated business continuity plan.

1. The router is configured with the primary wired WAN as the preferred path.
2. A dynamic routing protocol (like OSPF or BGP) runs over both the wired and the cellular backup link.
3. The moment the primary link fails, the protocol automatically withdraws that route and redirects all traffic over the 5G cellular link in seconds.

The transition is seamless, ensuring your point-of-sale systems, VoIP phones, and cloud applications continue to run without interruption.

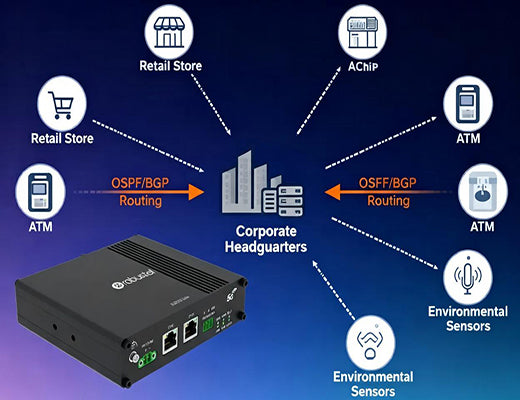

Can you imagine manually configuring and maintaining static routes for hundreds or thousands of IoT endpoints, like ATMs, smart grid sensors, or digital signage? It would be a logistical nightmare.

A dynamic routing protocol makes this manageable. Once the initial template is set, each new router you deploy will automatically connect to the network, announce itself, and learn the entire network topology from its peers. If you need to make a network-wide change, you can do it from a central point, and the protocol will propagate the updates automatically. This dramatically reduces deployment time and the chance of human error.

For the ultimate in reliability, you can use a dual-SIM router with SIMs from two different carriers. By running a dynamic routing protocol, you can intelligently manage these connections. You can set policies to:

• Prioritize a primary carrier and only failover to the secondary carrier in an outage.
• Select the carrier with the best performance (lowest latency), with the protocol automatically adjusting as conditions change.
• Distribute traffic across both links to balance the load, though this is a more advanced configuration.

This level of intelligent link management is simply impossible with static routing.

You can't just run these advanced protocols on any consumer-grade router. You need industrial-grade hardware with a sophisticated operating system. Robustel's entire line of industrial cellular routers, running on the powerful RobustOS, offers comprehensive support for the key dynamic routing protocols your business needs.

Whether you're deploying the R5020 Lite 5G VPN Router for high-speed failover or the R1520 Global Router for widespread IoT deployments, you get full support for BGP, OSPF, and RIP. This, combined with the RCMS cloud management platform, gives you the power to build and manage a truly automated, resilient, and scalable network from a single pane of glass.
